ID card entrance control Reader with anti-passback, custom access control, time attendance, TCP/IP, RS232, RS485 port

Categories	Access Control device
Place of Origin:	China Mainland
Brand Name:	SeabreezeRFID
Certification:	RoHS
Model Number:	HSCR-100
MOQ:	1 piece
Packaging Details:	1 piece/box
Delivery Time:	In stock
Payment Terms:	L/C, T/T, Western Union, PayPal, MoneyGram
Supply Ability:	1000pcs/month or Specify the number
Add time ::	2014-01-12 10:33:20
Material:	ABS
ID card Capacity:	30,000 pcs
Interface:	TCP/IP, RS-232, RS-485
Wiegand Signal:	Output & Input
Optional Functions:	EM ID card, MF1 IC card
sample:	Specified
Sales range:	Global
highest annual sales:	16,000 pcs

Contact Now

Add to Cart

Company Info.

Shenzhen Seabreeze Smart Card Co., Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

ID card entrance control Reader with anti-passback, custom access control, time attendance, TCP/IP, RS232, RS485 port

ID card entrance control Reader with anti-passback, custom access control, time attendance, TCP/IP, RS232, RS485 interface

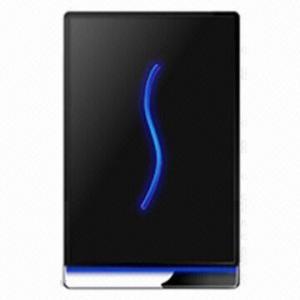

HSCR-100 is an access control devices produced, Access control time attendance all-in-one machine, which is made with elegant design and professional surface treatment.

Device have lock control, alarm, exit button, door sensor.

Wiegand-in interface is used to connect external reader to construct master and slave system.

Also device can be used to connect with control panel as reader by wiegand-out interface.

Can be built-in Webserver, can through the network access query access records.

Operation can be done on PC software and upload to device through TCP/IP, RS232/485 communication.

Used for data download and upload, including user data and record.

Suitable for house, small office and factory.

Features

Elegant casing design

Easy installation, safe and reliable

Simple and convenient operation method

ID card standard, card optional

Full door lock control system

Wiegand out to connect with control panel

Wiegand in to construct master and slave system

Audio prompt and LED feedback guide user to operate

No screen, no button key, has the strong dustproof and waterproof function

Through the access control software registration to upload the user information

**Technical parameters**
Item	Parameters
ID card Capacity	30,000
Transaction Capacity	50,000
Communication	TCP/IP, RS232/485, USB-Host
Access Control Interface for	EM lock, Door sensor, Exit button, Alarm, Door Bell
Wiegand Signal	Output & Input
Standard Functions	Anti-passback, Webserver, 9 digital number
Optional Functions	MF1, H·ID
Display	N/A
Power Supply	DC 12V
Operating Temperature	0 ℃~+45 ℃
Operating Humidity	20%-80%RH
Size	153×95.5×35.5mm
Gross weight	0.8kg

Typical applications

Access control

Entrance management

Time attendance management
