Full SUS304 Automatic Cleanroom Air Shower For 4 Persons With Three Sides Blowing

Full SUS304 Automatic Clean Air Shower For 4 Persons With Three Sides Blowing For Hospital

Doors: Stainless steel 304 frame with Half temper glass

Air shower.pdf

Automatic clean air shower is an airborne pollutants barrier between clean room and the worker's gowning area and prevents

accidental contamination due to the unwanted or improper opening of the doors.

Air Shower is effectively removes the surface lint and particulates on the workers and their garments and completely drives them down

to the breeze air circulating filtration system.

Air shower is available in a very wide variety of sizes and shapes, such as using a combination of straight, right or left angle,

and U shapes, to provide a cleaning system to meet your specific application requirements.

Features:

1. Controlled by English IC control panel, electric interlocked, automatically blowing by photoelectric sensor.

2. Showing time canb e adjusted from 0-99 seconds ont the display of control panel, it is easy to control it.

3. Base and nozzles are used of stainless steel

4,99.99%@0.3μm, Efficiency can reach 99.99%@0.3μm with pre filter and hepa filter.

5. Spurt wind speed: 22-25 m/s

Applications:

Food factory, Semiconductor Factory, Microelectronics Factory, Biological Pharmaceutical Factory, etc.

Features:

Standar size and specificaton:

Air Shower Details:

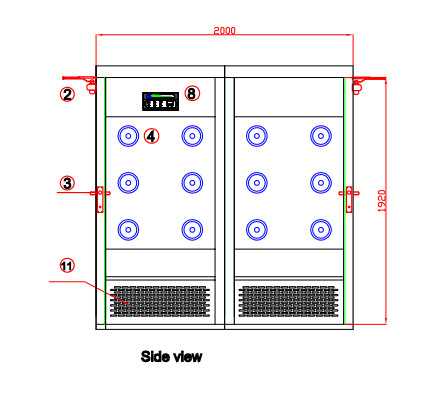

Air Shower Drawing:

Testing in factory:

All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing

Warranty:

The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.

Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.

Why you choose ZHISHENG Company ?

Professional service:

Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.

Delivery time:

• Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.

Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.

Cleanroom equipments,like air shower, FFU. It is one-year warranty.

Dongguan Zhisheng（Lihong） Purification Technology Co., Ltd. is builded in 1997, we are specialized in manufacturing clean room equipments, like air shower, air shower tunnels, Fan Filter unit(FFU), Pass Box,  Clean Bench, Laminar Flow cabinet, clean booth, various sole cleaning machines and boot washer,  various air filters including HEPA filters, fine filters, V type filter, medium filter, pocket filters and Pre-filter and other filters,  and HVAC air diffusers, air grilles and volume control dampers.

We make our products strictly in accordance with state standards. With the top-graded product quality in the industry, our company enjoys great reputation among the customers all over the country. Our products are also exported to Europe, North America, Middle East, Southeast Asia and other countries.

Clean room equipment include air shower, clean bench, FFU,pass box, pass box with air shower, clean booth etc.

Air filters include primary, medium, HEPA filter, Replacement filter for Projector and Air Purifier.

Our HEPA filter has passed the tests of National Center of Quality Supervision and Inspection and Testing for Air Conditioning equipment.

The purifying equipment are in conformity with GB5007-2001 Design Code of Cleaning workshop. Our wide range of air purifying product will surely satisfy different engineering requirements of different purifying grades.

We also supply shoe sole cleaning machines, Hand wash stations, boot washers,wash tanks and  hygiene station machines and stainless steel products for clean room and food factories.

HVAC products include air diffuser, air grille, air louver, air damper, pressure damper, Sound absorber and other accessory parts for air-conditioners. They are widely applied in many large-scale projects and win consistent high praise of our customers because of the superior quality and delicate crafts

We develop new products for pharmacy and hospital, like dispensing room, dynamic pass box, Electric sliding door and swing door for hospital, Laminar flow air supply ceiling,drug cabinet, instruction cabinet ,Wash hand sink, Liquid crystal light and so on.

Adhering to the operation tenet of Honesty Service and Pursue Perfection, our skillful and high quality employees will produce the best and most reliable products with advanced processing equipment and excellent materials. Comprehensive and prefect after-sales services will be available to customers. We are committed to provide the best products and comprehensive services to all customers.

We have Lasing cutting machine, Bending machine, Punching machine, these new machines makes sure the good-looking and superior quality for the machines.

Our workers have been more than 10 year experience in welding , and they have good skills to make sure the quality of machine.

Besides, we have R & D team, we have 5 engineer to design and develop the new product and selove the techncial issues of the machines.
