POSITIVE VOLTAGE REGULATORS L7805CD2T

L7800 SERIES

POSITIVE VOLTAGE REGULATORS

■ OUTPUT CURRENT TO 1.5A

■ OUTPUT VOLTAGES OF

5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V

■ THERMAL OVERLOAD PROTECTION

■ SHORT CIRCUIT PROTECTION

■ OUTPUT TRANSITION SOA PROTECTION

DESCRIPTION

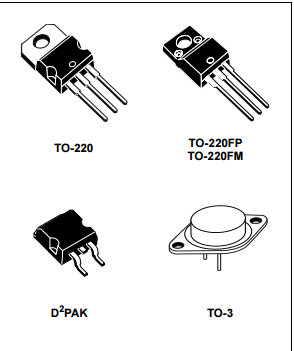

The L7800 series of three-terminal positive regulators is available in TO-220, TO-220FP, TO-220FM, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Schematic Diagram
