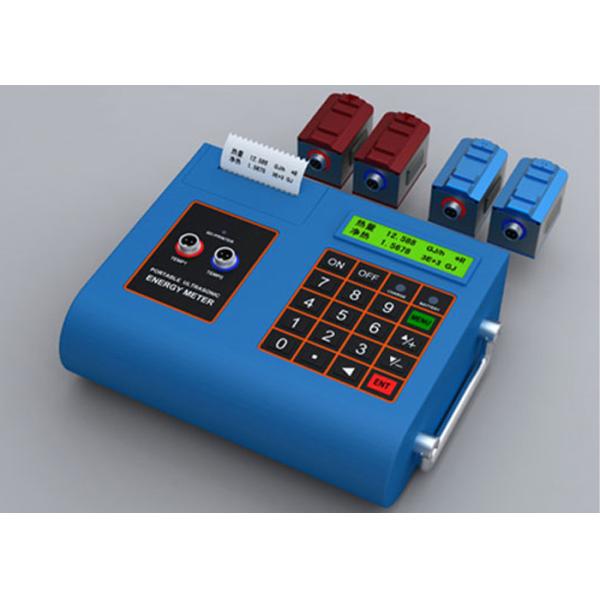

Potable ultrasonic Magnetic Flow Meter with mounting bracket transducer

Potable ultrasonic flow meter with mounting bracket transducer for non-contact volume measurement

Product Description

The portable ultrasonic flow meter realizes non-contact volumetric flow measurement. It is ideal for flow management in closed-pipe applications where non-invasive measurement of liquid is required.Temperature and heat can also be measured by connect clamp on temperature transducer. It's widely used in municipal tap water supply, heat supply, chemical industry, machinery and energy resource.

Data sheet

Features

• High Accuracy measuring:
  Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
• Non-intrusive measuring
  Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
• Wide measuring range
  Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
• Chinese & English menu
  Chinese & English display, easy to operate.
• Built-in printer
  Built-in mini thermal printer with instant and timing print function
• Built-in data logger
  Uplink over 20 measuring data to computer or SD card, convenient for the data processing and applications
• Multi-signal input &output
  Multiple signal interface easy for input and output signals

Metering Diagram

Flow measurement Heat measurement

Parts configuration

Optional transducer

Industries

• Chemicals
• Petrochemicals
• Oil & Gas
• Heating, Ventilation & Air Conditioning (HVAC)
• Power Plants
• Water treatment

Applications

• Metering of cooling water
• Demineralisedwater
• Control of batching and blending operations
• Mass flow measurement
• Allocation measurement
• District heating
• Irrigation
• Energy measurement

Competitive Advantage:

• Compliance to international standards: ISO9001-2008 / GB/T19001 / MC00000-044/507
• CE approval
• Strict process control
• Advanced calibration equipment
• Engineer team

Calibration

Work shop

Focus on low-carbon energy and environment protection technology, we design and manufacture fluid processing and control products to give our contribution to the sustainable energy develop.

Lots of mega projects have been installed with our products, Shanghai expo center, Shanghai Disney energy center, Beijing Z15 tower, Malaysia GDC energy station, etc. Our technology and practical application experience, allow us to provide our client with products and solutions which meet your expectation on building, improving and mainting equipment. The industries we served:

• New energy
• Petroleum and chemical
• Industrial energy
• Oil and gas
• Metals and mining
• Pulp and paper
• Water and waste water treatment
• Marine
• Power
• Refining
• Food and beverage
• Life sciences

Our R&D, customer experience and manufacturing center is located in the “Low energy building science center” Hanghzou, China. As a Provincial class Postdoctoral workstation by collaboration with China State Energy research institute, which ensure our advantage from technician, science research & development, equipment. Our main products includes: flowmeters, roots air blower, pump, as well as design consultancy on RO, UF, NF design.
