Hand Hoist Cable Puller Winch Cable Pulling Tools With 20 meter Wire Rope

Hand Hoist Cable Puller Winch With 20 meter Wire Rope With CE Certificate

Use and Characteristic

1) Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M.

2) All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.

3) Wire rope is tapered one end and fitted with a hook and safety catch at the other end.

3) The hoist has low maintenance requirements and is easy service.

4) Overload protection ensures high personal safety when in operation.

5) Specially built-in shear pins can be replaced without removing the load.

Features
1. Forward and reversing levers in tandem provide slim design and assure power transfer along the centre line of the Yaletrac cable puller.
2. Overload protection is by a shearing pin in the forward lever. Spare shear pins are conveniently located in the carrying handle or operating lever. A broken pin can be replaced without removing the load from the Yaletrac cable puller.
3. A lever disengages the rope clamp system allowing easy, smooth installation of the rope.
4. Yaletrac uses a special flexible rope. It has six strands with a steel core and is identified by an orange strand. The rope is tapered at one end for easy threading and fitted with an eye sling hook with safety latch on the other end.
5. The parallel arrangement of the clamping system protects the rope by distributing the clamping forces evenly. A long rope advance per each lever stroke increases the working speed.
6. The large opening in the top of the unit allows easy cleaning: simply flush the unit with water, apply motor oil for lubrication and the Yaletrac cable puller is again ready for use.

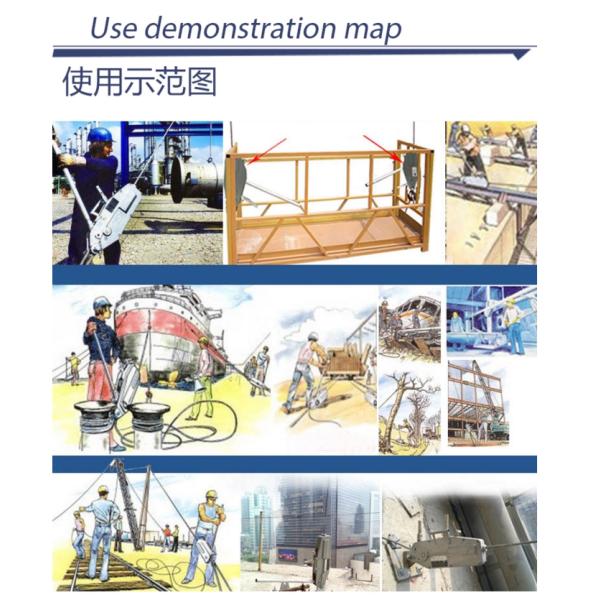

Application

1. Construction

* dam structures-pulling of frame

* laying of steel or concrete pipe

* concrete pile laying

* seat pile pulling

* combine of fume tube

2. Railway

* pulling of rail

* removal of van or wagon

* laying of track

* shunting and maintenance of rolling stock

3. Shipbuilding (Shipbuilding company)

* manoeuvering of ships

* working of locks

* slowing of cargo

* shipping of dinghies

4. Transport

* positioning of boiler

* machines

* maintenance

* loading of car

* emergency

* loading and unloading of bulky and heavy packages

Technical Data

Diagram

Detailed Images

Parameters

Changshu Xinya Machinery Manufacturing Co., Ltd.is located in the beautiful and rich Chinese historical and cultural city - Changshu, Jiangsu. It is on the east of Shanghai, on the southern edge of Suzhou, west of Wuxi, north of the Yangtze River.It is convenient for transportation.

Changshu Xinya Machinery Manufacturing Co., Ltd. is founded in the eighties of last century, specializing in the production of various electrical equipment, forklift mast and so on. And in 2010,we passed through the ISO9001: 2000 and BV certification.

With support of customers, our products  have sold all over the word. According to the needs of the majority of users, we will increase the investment in science and technology,constantly develop new products, strengthen and improve product performance to meet the requirements of our customers.

Our main products are 1 ton, 2 tons, 3 tons, 5 tons, 8 tons JJM series cable pulling winch, hydraulic tensioner,hydraulic puller,cable laying euiqpments,high pressure hydraulic pump with hydraulic crimping tools,come along clamp,stringing pulley, cable roller and cable drum trailer, steel bar, aluminum alloy gin pole , And other power construction equipment and a variety of large tonnage forklift mast and a variety of special requirements of non-standard gantry.

Manufacturing process is complete, strong technical force, processing capacity is complete, finished products are strictly standardized technical quality testing, a sound quality control and after-sales service system, formed a certain scale of power equipment production capacity. Our existing variety of equipment are more than 80 sets, processing capacity, more sophisticated equipment (processing centers and CNC equipment 15 sets) to ensure product quality.
