1 / 4" NPT Fittings For High Pressure Hydraulic Rubber Hoses ( 15611 )

1 / 4" NPT Fittings For High Pressure Hydraulic Rubber Hoses 15611

Descrioption:

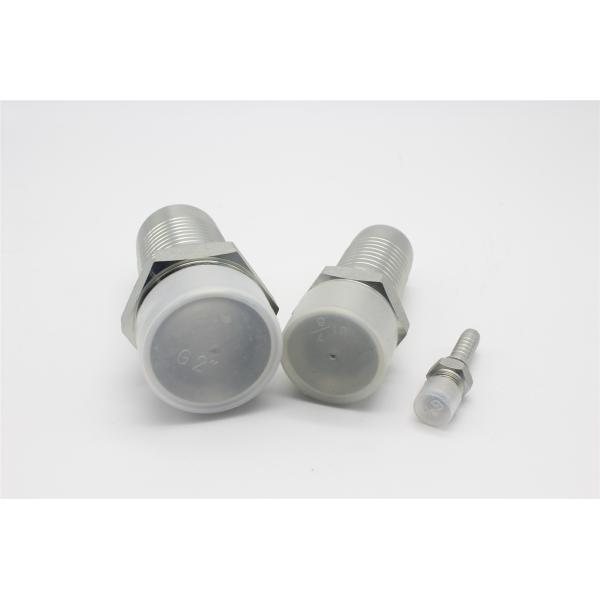

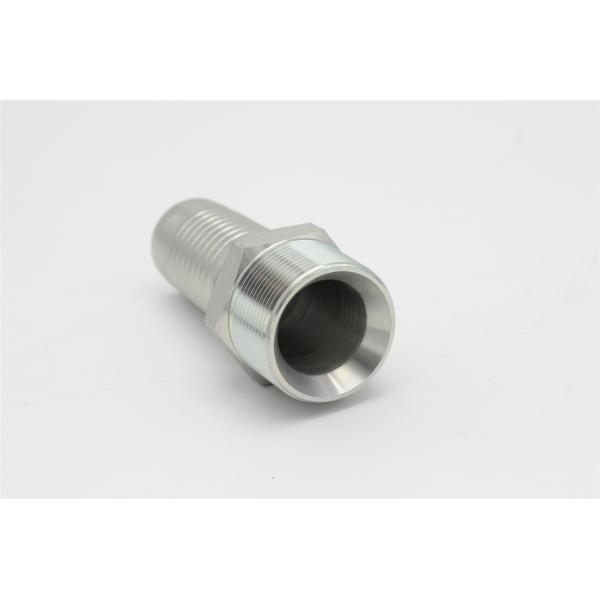

It is hydraulic hose fitting NPT male (15611). Almost all of our customers need this kind of hydraulic fitting.

Application:

Hydraulic Hose Fitting is widely used in the hydraulic and fluid conveying system of machinery,

oilfield, mine, building, transportation and other industries.

Specification:

Catalogue of Male NPT Fitting.pdf

NPT MALE

Part No.	Thread E	Hose Bore		Dimensions
		DN	DASH	A	C	S1
15611-02-03	Z1/8"X27	5	03	21.5	10.5	12
15611-02-04	Z1/8"X27	6	04	22.5	10.5	12
15611-04-03	Z1/4"x18	5	03	27	15	17
15611-04-04	Z1/4"x18	6	04	28	15	17
15611-04-05	Z1/4"x18	8	05	28	15	17
15611-04-06	Z1/4"x18	10	06	28	15	19
15611-06-04	Z3/8"x18	6	04	28	16	19
15611-06-05	Z3/8"x18	8	05	29	16	19
15611-06-06	Z3/8"x18	10	06	29	16	19
15611-06-08	Z3/8"x18	12	08	30.5	16	22
15611-08-06	Z1/2"x14	10	06	34	19.5	22
15611-08-08	Z1/2"x14	12	08	35.5	19.5	22
15611-08-10	Z1/2"x14	16	10	37.5	19.5	27
156611-12-08	Z3/4"x14	12	08	37.5	19.5	27
15611-12-10	Z3/4"x14	16	10	38.5	19.5	27
15611-12-12	Z3/4"x14	20	12	39.5	19.5	32
15611-16-10	Z1"x11.5	16	10	45	19.5	36
15611-16-12	Z1"x11.5	20	12	45	25.5	36
15611-16-16	Z1"x11.5	25	16	46.5	25.5	36
15611-20-16	Z1.1/4"x11.5	25	16	49	25.5	46
15611-24-20T	Z1.1/2"x11.5	32	20	50.5	26.5	46
15611-24-24	Z1.1/2"x11.5	40	24	51	27.5	50
15611-32-32	Z2"x11.5	50	32	55	27.5	65

Note: 1 for use with braided hoses. textile hoses or thermoplastic hoses, if use with spiral hoses, hose fitting series number is 15612-**-**.
