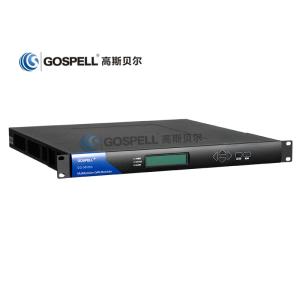

DTV Headend 16 Frequency QAM Modulator 8 * ASI 4 * DVB-C With Scrambling

16 Frequency Multifunction QAM Modulator with Scrambling

Model No: GQ-3650DS Series

Gospell GQ-3650DS series is a new DTV product platform of multifunction QAM modulators. The series includes various products which all provide functions of multiplexing, scrambling, modulation, some of them also support QAM-to-QAM and QPSK-to-QAM conversions.

GQ-3650DS series supports module authorization management system, by which the number of modulating channels and CAS channels can be added / deleted anytime by software. The products also supports web-based management and SNMP, which makes it possible for remote online control and monitoring.

Due to its versatilities, GQ-3650DS series can be applied to different places upon customers’ needs, such as cable DTV head-end, sub head-end, or broadcasting center. This product series is designed for fulfilling customized needs of various DTV head-ends with its capability of providing multiple functions in one unit.

List of Product:

Main Features:

• Flexible configurations with module authorization management system
• Changeable input / output interfaces by swithing the daughter boards
• Complied with ITU- T J.83 Annex A, B, C
• Support UDP / ARP / ICMP / IGMP protocols
• Support TS over IP, multiplexing, scrambling, PSI/SI processing, mudulation, and up-converting
• Up to 4 CAS simul-crypt
• QAM Mode: 16/32/64/128/256
• QAM output frequency range: 30~860MHz
• Support MPTS
• Up to 64 programs for each modulating channel
• Capable of processing 128 PIDs for a single program
• Support HD/SD program
• Web based management for online remote upgrade and control
• SNMP for online remote monitoring
• Power failiure memory recovery

List of Authorizations:
