Oxide Black 8.8 Grade Railway Sleeper Screws DIN Standard High Hardness

Categories Railway Sleeper Screws
Brand Name: ZhongYue
Model Number: DIN
Certification: ISO9001:2015
Place of Origin: China
MOQ: 10000pcs
Price: Negociable
Payment Terms: T/T, 30% in advance
Supply Ability: 10,000pcs per week
Delivery Time: 10 to 30 days according to your order quantity
Packaging Details: 25kg Cartons or woven bags onwooden pallet , 36bags/pallets , 24pallets/container
Application: Railway fastener
Material: Q235, 35#, 45#
Sample: Available
Customization: Acceptable
Surface Treatment: HDG, Oil, Oxide Black, Wax
Grade: 4.6, 4.8, 5.6, 8.8
Standard: ISO898-1, UIC864-1, and NF F500-50
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Oxide Black 8.8 Grade Railway Sleeper Screws DIN Standard High Hardness

Oxide Black 8.8 Grade DIN Standard Railway Screw Spike High Hardness

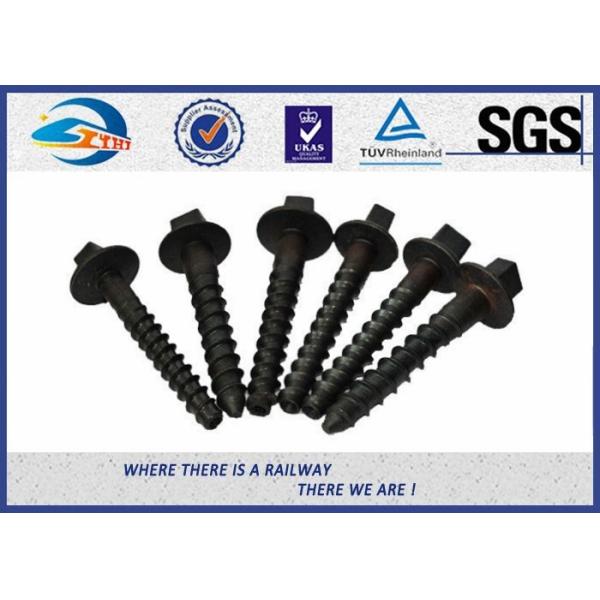

Railway screw spikes provide a mechanical interlock that delivers more than twice the holding power of conventional hammered railway spikes.Screw spikes are commonly used to fasten timber railway ties/sleepers; however, they can also be used in conjunction with plastic ferrules that have been cast into concrete ties/sleepers.Various thread profiles, lengths, diameters and drive heads are available to suit specific geographic requirements and Suyu can help with product specification and selection.

Name

Oxide Black 8.8 Grade DIN Standard Railway Screw Spike High Hardness

Type

Ss5.-150

V20-135

Ss8-140

V23-115

Ss8-150

V23-135

Ss8-160

V23-155

Ss23-160

V23-215

Ss25.-165

V26-115

Ss35.-161

Or the type by customers’ drawings

Grade

4.6

5.6

8.8

10.9

Material

Q235

35#

45#

40Cr

Mechanical properties

Tensile strength:
≥400Mpa

Tensile strength:
≥500Mpa

Tensile strength:
≥800Mpa

Tensile strength:
≥1000Mpa

Yield strength:≥240Mpa

Yield strength:≥300Mpa

Yield strength:
≥640Mpa

Yield strength:
≥900Mpa

Elongation:≥22%

Elongation:≥20%

Elongation:≥12%

Elongation:≥9%

Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Cold bending:
90 degree without crack

Surface

plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing

Standard refers

ISO898-1, UIC864-1, and NF F500-50


Production Process

Raw material —— Wiredrawing —— Cutting the wire rod to length —— forming the head —— cutting Edge —— Thread rolling —— Heat Treatment —— Surface treatment —— Final inspection —— Packaging —— Shipment
