| Categories | Tipper Dump Truck |
|---|---|
| Model NO.: | EHY6688ZXCA06 |
| Place of Origin: | CHINA |
| Brand Name: | EHY |
| Tire Design: | Tubeless |

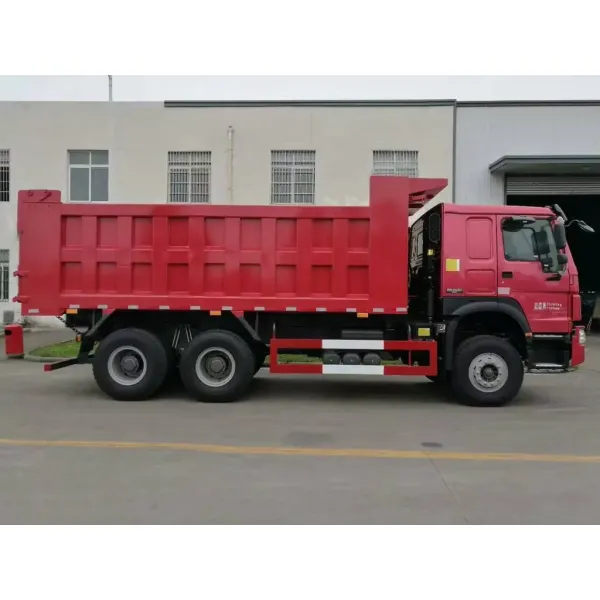

| Name: | Tipper Dump Truck |
| Brand: | Dongfeng, Chacman, FAW, etc. |
| Delivery Time: | 35 Days |
| Horsepower: | 351-450hp |
| Trademark: | EHY |
| Thickness of The Box: | Side 8mm, Bottom 10mm |
| Specification: | 8860x2496x3450mm |
| Origin: | Suizhou, China |
| Production Capacity: | 500pieces/Month |
| Lifting Type: | Middle Lifting, Front Lifting |
| Seats: | ≤5 |
| Condition: | New |
| Transport Package: | Naked, Waxed, Bulk Ship, RO-RO |
| MOQ: | 1 |
| Price: | 15000-35000 per unit |
| Dump Material: | High Quality Q345b |
| Model Number: | EHY |
| Payment Terms: | 50% Deposit,Balance should be paid before ship out |
| Supply Ability: | 10unit per month |
| Oil Cylinder Brand: | International Brand Hyva or Chinese Brand |
| Dumping Type: | Front Lifting Style |
| Tire Certification: | ECE, GCC, ISO, DOT |
| HS Code: | 8705909090 |
| Engine Capacity: | ＞8L |
| Color: | as Customer's Request |
| Usage: | Transpotations of Mineral, Stone, Sand, and So on. |
| Load Capacity: | 31-40t |
| Warrenty: | 1 Year |
| Drive Wheel: | 6×4 |
| Emission Standard: | Euro 2 |
| Company Info. |
| HUBEI HUAYI SPECIAL AUTOMOBILE CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
| HOWO 76 Standard Cab With one sleeper, 70° hydraulically tillable to the front as attached photo for ref. |  | |||||
| (L x W x H) mm | 8860×2496×3450 | |||||
| Wheel base (mm) | 3825+1350 | ||||||
| Wheel track (front/rear) (mm) | 1500/1525 | ||||||
| Approach/Departure angle(°) | 19/24 | ||||||
| Tare Weight | 12390kg | |||||
| Loading Capacity | 40000kg | ||||||
| Front axles loading capacity | HR9 1x9000kg | ||||||
| Rear axles loading capacity | HC16 2x16000kg | ||||||
| Max. driving speed(km/h) | 85 | ||||||
| Brand | Sinotruk Howo | |||||
| Model | WD615.47 | ||||||
| 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||||
| Horse Power(HP) | 371HP | ||||||
| Emission standard | Euro 2 | ||||||
| Gearbox | HW19710, 10 forwards & 2 reverse | ||||||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||||||
| Steering Gear | ZF 8118, power steering, hydraulic steering with power assistance | ||||||
| Fuel tank (L) | 300 | ||||||
| Tire | 12R22.5 tubeless tire,10 pieces with one spare | ||||||
| Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||||||
|
