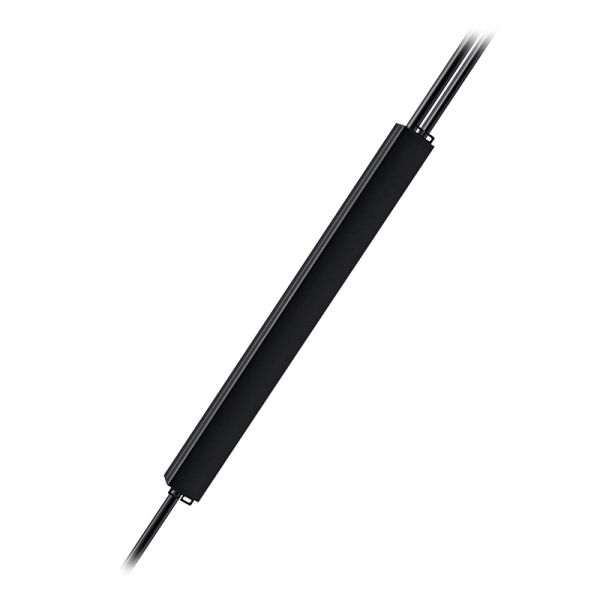

Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver

Categories Triac Dimmable Driver
Brand Name: KSPOWER
Model Number: KS-96LW-24T
Certification: UL cUL CE Class P ENEC Gs TYPE HL...
Place of Origin: Guangdong, China
MOQ: 2 pieces
Price: $2.90-27.80/pieces
Payment Terms: T/T
Delivery Time: 20 days
Packaging Details: Brown box and Carton
Warranty(Year): 5-Year
Color: Black, Silver
Current: 4.0A
Lighting solutions service: Lighting and circuitry design
Input Voltage(V): 100-277V
Application: Street Light, Tunnel Light, Wall Lamp,Spot Light
Warranty: 5 Years
Output Mode: Pwm Output
Efficiency: 95%
Output: 24V
Material: Aluminium Case
IP Rate: IP65; IP67
Dimming mode: Phase-Cut/Triac Dimming
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver

Triac Dimmable Driver 100% Output 24V 96W Class 2 Backlight Led Transformer Driver

Products Description:
Triac phase-cut dimming UL Class2 96W 80W 60W 220v 12v ac pool light transformer led dimmer 24v 12v pool light transformers
The KSPOWER - LT series triac dimmable led driver 60 80 96 Watt is one constant voltage solution, single channel, accept universal AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt compatible with most AC wall dimmers including Lutron, Leviton and most other household dimmers. The class 2 dimming power transformer use low profile metal aluminum case, dry and damp, makes the dimmable led driver power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 2K frequency PWM output and IP65 waterproof environment protection rated for indoor or outdoor use, the phase dimmable led driver provide 5 years warranty and outstanding led dimming performance.

Features:
* Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
* Single Channel & Constant Voltage mode
* Output Voltage: 12Volt/24Volt/36Volt/48Volt
* Driver Type: Class 2 Class P
* Enclosure: LISTED Enclosure with input and output wire
* Dimming: Triac/ Phase-cut, PWM, 0/1-10V or MLV / ELV Resistance Dimmable Available
* Environmental: Dry and Damp
* Wiring Compartments with Knock-Outs for Clean and Easy Installation
* Current Limiting Overload Protection
* Flicker-Free
* Smooth Ripple Free Output Voltage
* IP67 Rated Enclosure for Indoor and Outdoor Use
* 5-Years Warranty
* UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL


Dimming Connect Drawing


Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.


Dimming TypeSeriesPowerModel
(xx=output voltage)
Output voltage&
Output current
Input voltageSize
12V24V36V48V
Triac/Phase-cutLT30WKS-30LW-xxT2.5A1.25A0.83A0.62A100~277V
50/60Hz
270*32*24.5mm
40WKS-40LW-xxT3.33A1.66A1.11A0.83A
60WKS-60LW-xxT5A2.5A1.67A1.25A310*32*24.5mm
80WKS-80LW-xxT6.66A3.33A2.22A1.66A
96WKS-96LW-24T/4A//355*32*24.5mm
100WKS-100LW-xxT8.33A4.16A2.78A2.08A


Note:Any custom label/package/case is acceptable, provide OEM and ODM service.
