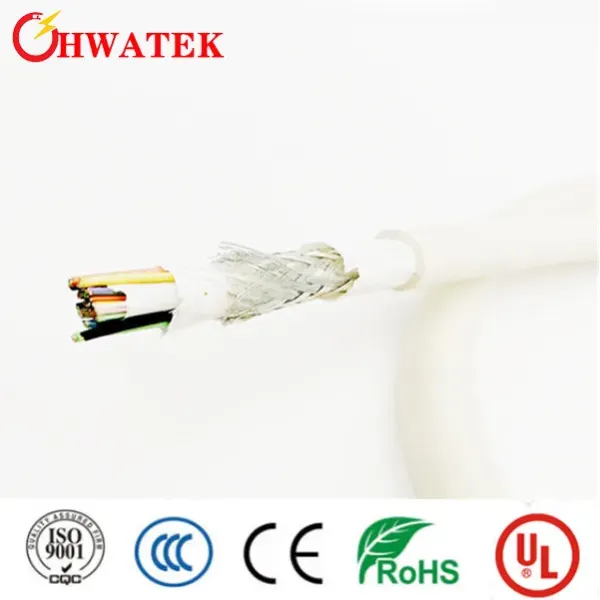

Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation

Categories EV Charging Cable
Certification: ISO9001, CE, CCC, RoHS
MOQ: 100 Meters
Conductor Material: Silver Plate Copper
Sheath Material: PTFE
Insulation Material: PFA
Material Shape: Round Wire
Cable Size: 42AWG
Construction: 7/0.025mm
Strand Diameter: 0.075mm
Insulation Thickness: 0.10mm
Insulation Diameter: 0.27±0.05mm
Final Assembly Diameter: 7.30mm
Jacket Thickness: 0.60mm
Outer Diameter: 9.40±0.30mm
Rated Temperature: 60°C
Rated Voltage: 30V
Transport Package: 500m/Reel
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Customized 42 AWG Medical Device Cable with Silver Plate Copper PTFE Sheath and PFA Insulation

Product Description
Basic Info.


Conductor: Silver plate copper alloy Jacket
 Size: 42AWG
Construction: 7/0.025mm
Strand Dia: 0.075mm
Insulation: Foam PFA
Nom.Thickness: 0.10mm
Insulation Dia: 0.27±0.05mm
insulation colour       nature
Spiral                    Tinned copper alloy,0.0254mm,≥90%
Inner jacket                    Pet tape,≥25%
Colour
                  A1&A4&A5.white A2&A6&A7. black
                  A3&A8&A9.red A10&A11&A12 blue
Assembly-A    16Cx42AWG
Final assembly    12×Assembly-A+Filler
Final assembly Dia.      nom.7.30mm
Material         PTFE tape,≥25%
Braid            Tinned copper tinsel,0.11mm,≥95%
Jacket                         PVC
Nom.Thickness        0.60mm
Outer Dia.                9.40±0.30mm
Colour                             white
Customized 42 AWG and 75 Ohms Medical Device Cables





Structure Diagram:
Customized 42 AWG and 75 Ohms Medical Device Cables


Reference standard:NOUL

Product Category:

Product Category:

NOUL192Cx42AWG(60pF)

Construction:

Rated temperature:60°C

Rated voltage:30V


conductor:Silver plate copper alloy

Insulation material:Foam PFA

Sheath material:PVC

Structural parameter table:

Customized 42 AWG and 75 Ohms Medical Device Cables

1. The detailed dimensions are subject to the product specifications.

2. Other specifications can be designed and manufactured according to customer requirements.

3. The color of the sheath is generally black  If there is special requirement, it can be customized according to customer's requirement
Customized 42 AWG and 75 Ohms Medical Device CablesCustomized 42 AWG and 75 Ohms Medical Device Cables
