| Categories | Environmental Test Chamber |
|---|---|
| Brand Name: | ASLi |
| Place of Origin: | Guangdong, China |
| Model Number: | RT Seires |
| MOQ: | 1 |
| Internal Dimension: | 1000x1000x1000 mm |
| External Dimension: | 1600x1900x1400 mm |
| JIS Test Flow: | 1.8L/Min to 3.9L/Min (RT-1000A), 24.5L/Min to 39.2L/Min (RT-1000B) |
| JIS Test Pressure: | 0.1kgf/cm2 to 0.3 kgf/cm2 (RT-1000A), 1kgf/cm2 to 3 kgf/cm2 (RT-1000B) |
| Drop Test Speed: | 1 to 1.5mm/Min (IPX1, IPX2), 3 to 3.5mm/Min (IPX3, IPX4) |
| Rain Swing Angle: | RT to ±80°C |
| Water Spray Flow: | 0.07L/min per Nozzle (RT-1000B), 12.5L/min to 100L/Min (RT-1000A) |
| High Pressure Jet: | 80Kgf to 100Kgf (IPX9K) |
| High Pressure Flow: | 14 to 16L/Min |
| Rotating Plate Speed: | 4 to 20 RPM |
| Temperature Range: | RT to 85°C |
| Interior Material: | Steel plates |
| Exterior Material: | #304 stainless steel |
| Nozzle Material: | Titanium alloy |
| Water Pressure: | Adjustable |
| Company Info. |
| ASLi (China) Test Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

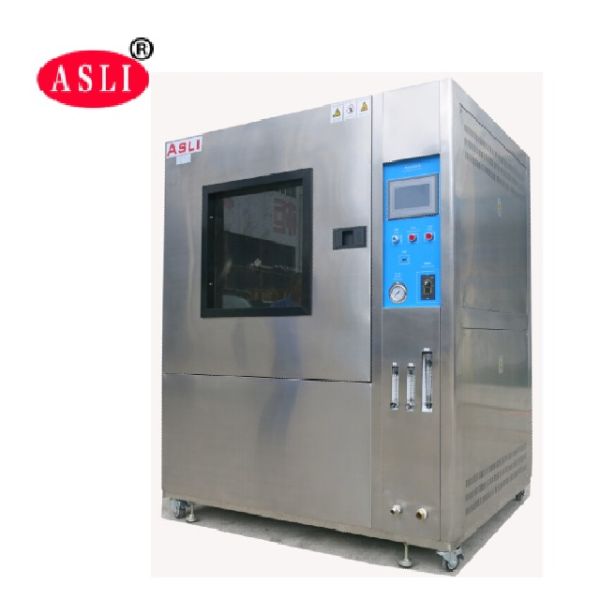

Laptop Computer Lcd Screen Rain Spray Test Chamber Tester
application:
Laptop Lcd Screen Tester Rain Spray Test Chamber is used to test the shell’s waterproof effect of electronics, automobile and communication, using rainfall simulation to test the product’s waterproof performance and assess the product’s waterproof performance’s loss classification.
Laptop Lcd Screen Tester Rain Spray Test Chamber feature:
1. Water pressure and flow rate adjustable.
2. Unique sprinkler can stably control the rain quantity and pressure.
3. This equipment (Model RT-1000B) can make the test products’ temperature rising from RT to 85°C
4. Interior workspace material is steel plates, exterior is #304 stainless steel.
Laptop Lcd Screen Tester Rain Spray Test Chamber technical parameters:
Model | RT-1000A | RT-1000B |
Internal Dimension WxHxD (mm) | 1000x1000x1000 | |
External Dimension WxHxD (mm) | 1600x1900x1400 | |
JIS Test | Flow:1.8L/Min to 3.9L/Min | Flow:24.5L/Min to 39.2L/Min |
pressure:0.1kgf/cm2 to 0.3 kgf/cm2 | pressure: 1kgf/cm2 to 3 kgf/cm2 | |
Drop Test | 1 to 1.5mm/Min adjustable IPx1 IPx2 drop speed: 1 to1.5mm/Min adjustable | 3 to 3.5mm/Min adjustable drop speed:3 to 3.5mm/Min adjustable |
Rain of Pipe-Swing Test | IPx3 IPx4 swing pipe: RT to ±80°C | Flow:0.07L/min per Nozzle |
Water Spray Test | IPx3 IPx4 jet:2.5m to 3m | flow :12.5L/min to 100L/Min |
High Pressure Jet Test | 80Kgf to 100Kgf IPx9K pressure of jet:80Kgf to 100Kgf | Flow:14 to 16L/Min |
Rotating Speed of Rotating-Plate | 4 to 20 RPM adjustable | |
More Laptop Lcd Screen Tester pictures:
 |  |  |
