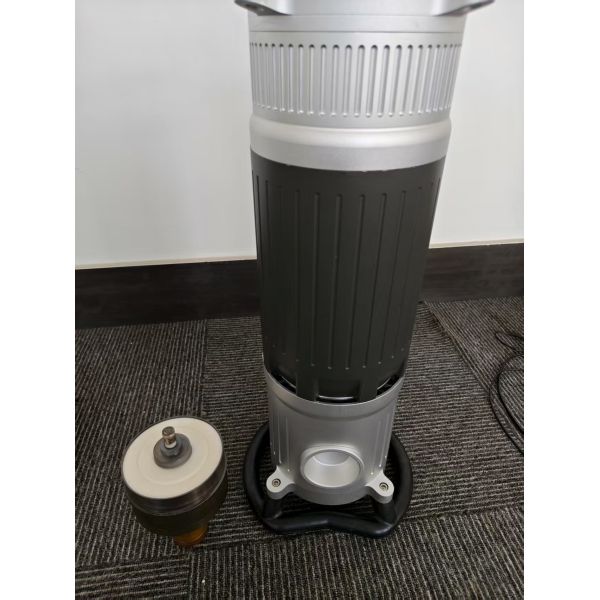

High voltage X ray constant potential flaw detector XXG-H300GP

General features:

*Continuous exposure is possible at 35 ℃ and 300kv/3mA conditions;

*Wide input voltage range, suitable for power supply of various generators;

*Lightweight, strong penetration, and stable performance;

*The controller adopts a cylindrical design with unique creativity;

*The operation interface is intuitive and easy to operate;

*High penetration ability: Max.70mm
*High power efficiency, can be 95%,small cable diameter and light weight.
*Can continuously work 99 minutes, no rest time, improve the work efficiency to a large extent
*Continuously adjustable for tube voltage and tube current, the machine can penetrate thickness from 0.5mm to 70mm due to different expose time setting. Better image clarity.
*High frequency design will reduce most of fault because it do not have high voltage coil.
*Can work with DR image system directly.

Technical Specifications

Item		Parameters
X ray Generator	Weight	32kg
	The external dimensions include the end ring	ф295x770(DXL)
X ray Controller	Weight	9.6kg
	Dimension	Including end ring: ф264x458(mm),excluding end ring: ф188x350 (mm)
Focus Size		3.0mm
Radiation Angle		40°x40°
Maximum penetration (Fe)		70mm(A3) F=600mm
kV adjustment range		120~300 kv ±1kv
mA adjustment range		0.5~3 mA ±0.1mA
Max power		900W
Protect temperature		75℃
Duty Circle		100% at an ambient temperature of 20 ℃
Storage temperature		-25°C~ +70°C
Power supply		AC190~265 V/50~60 Hz

The whole machine features: high frequency, low Ma, continuous work. Wide range hardware design has long life and very low failure rate

Strong anti-jamming, power grid can work in 180V~260V, Light cable and light weight of the head

The maximum penetration force: 70mm (F600, D > 2)

Random spare parts

10 core signal connecting cable

2 core power cable

A ground line

A set of Appendage package

The whole equipment is guaranteed for one year (except for man-made causes and force majeure reasons).
