HUAWEI CloudEngine S5735-L24PN4XE-A-V2 Network Switch with 1U Chassis Height 24 x 2.5GE Base-T Ports and 4 x 10GE SFP+ Ports

Categories HUAWEI Storage Server
Brand Name: HUAWEI
Model Number: S5735-L24PN4XE-A-V2
Place of Origin: China
MOQ: 1/set
Payment Terms: T/T
Supply Ability: 50pcs per week
Delivery Time: 2-3 work days
Product Model: CloudEngine S5735-L24PN4XE-A-V2
Forwarding Performance: 144 Mpps
Switching Capacity: 248 Gbps/520 Gbps
Power supply type: Built-in AC power module
Chassis height: 1U
Chassis weight(including packaging): 6.89KG
PoE: Supported, PoE+
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

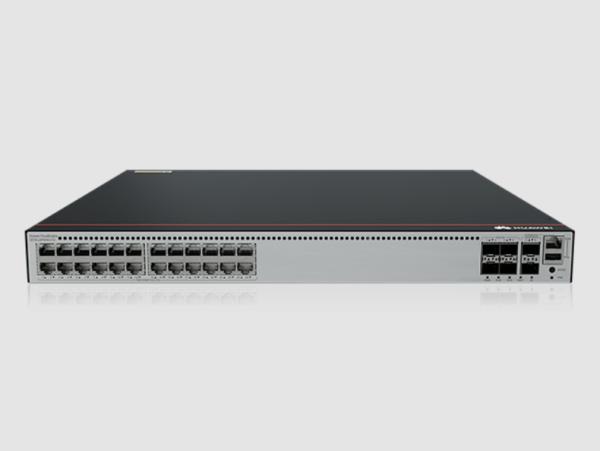

HUAWEI CloudEngine S5735-L24PN4XE-A-V2 Network Switch with 1U Chassis Height 24 x 2.5GE Base-T Ports and 4 x 10GE SFP+ Ports

CloudEngine S5735-L-V2 series 2.5GE switches are ideal for diverse scenarios such as enterprise campus network access and 2.5GE to the desktop. Built on next-generation, high-performance hardware and software platforms, CloudEngine S5735-L-V2 series stands out with intelligent stacking, flexible Ethernet networking, and diversified security control. Furthermore, this series supports multiple Layer 3 routing protocols, providing higher performance and more powerful service processing capabilities.


Product Model

CloudEngine S5735-L24PN4XE-A-V2

Forwarding Performance

144 Mpps

Switching Capacity

248 Gbps/520 Gbps

Fixed Ports

24 x 10/100/1000/2.5GE Base-T ports, 4 x 10GE SFP+ ports, 2 x 12GE stack ports

PoE

Supported, PoE+

Power Supply Type

Built-in AC power module

Dimensions (H x W x D)

43.6 mm x 442 mm x 420 mm

Chassis height

1U

Chassis weight (including

packaging)

6.89 kg

MAC Features

In compliance with IEEE 802.1D

MAC address auto-learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

VLAN Features

4K VLANs

Voice VLAN

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

IP Routing

Static route, RIPv1/v2, RIPng, OSPF, and OSPFv3

Interoperability

VBST (compatible with PVST/PVST+/RPVST)

LNP (similar to DTP)

VCMP (similar to VTP)

For detailed interoperability certifications and test reports, click HERE.
