JIS Type Drop Forged Hot DIP Galvanized Screw Pin Shackle

G2130 G2150 G210 G209 Lifting Rigging Hardware Bolt Anchor Bow Shackle US Type Chain Wire Rope Hardware Marine

About G2130 Shackle: (Bolt Type Anchor Shackle)

Bolt Type Anchor shackles with thin head bolt - nut with cotter pin.
Proof load: 2 x WLL.

Material: Forged – Quenched and Tempered, with alloy bolts
Marking: WLL, CE
Temperature range: -40°C up to +204°C
Finish: Galvanized with painted bolt.
Standard: EN 13889
Safety factor: 6:1/ 5:1

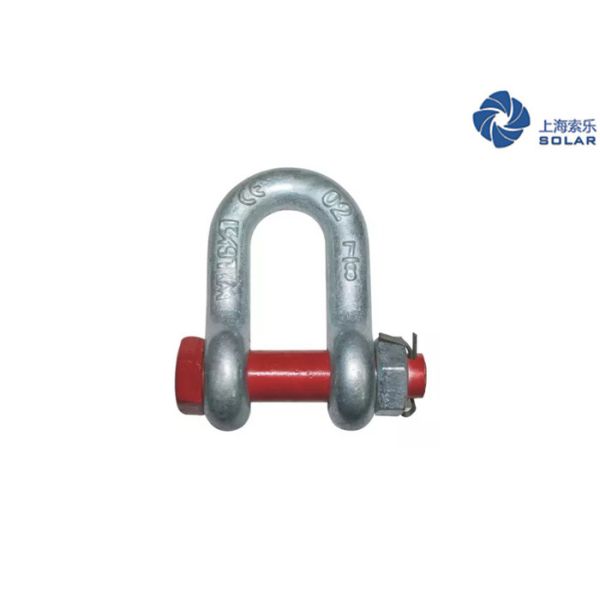

About G2150 Shackle: (Bolt Type Chain Shackle)

Bolt Type Chain shackle. Thin hex head boltnut with cotter pin. Meets the performance requirements of Federal Specification RR-C271G.

Standard: RR-C271D

Material: Forged — Quenched and Tempered, with alloy pins.
Marking: According to standard, CE-marked
Finish: Hot Dip galvanized or self colored.
Standard: EN 13889
Safety factor: 6:1/ 5:1

About G209 Shackle:( Screw Pin Anchor Shackle)

Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271G
Proof load: 2 x WLL.

Material: Carbon steel with headbolt in alloy steel.
Marking: According to standard, CE-marked
Temperature range: -40°C up to +204°C
Finish: Hot dip galvanized.
Standard: EN 13889
Safety factor: 6:1/ 5:1

About G210 Shackle:( Screw Pin Chain Shackle)

Screw pin anchor shackles meet the performance requirements of Federal Specification RR-C-271G Type IVA, Grade A, Class 2, except for those provisions required of the contractor.

Material: Forged - Quenched and Tempered, with alloy pins.
Marking: According to standard, CE-marked
Temperature range: -40° C to 204° C
Finish: Hot Dip galvanized or self colored.
Standard: EN 13889
Safety factor: 6:1

Shanghai Solar Steel Wire Rope Co. Ltd is a manufacturer of steel wire rope and wire rope slings in Shanghai China, where has developed economy, convenient transportation, dense ports and very close to Jiangsu and Zhejiang provinces. We have strict management system,first-class sales concept, excellent technical sales talents. We are providing steel wire rope, wire Rope Sling, lifting and rigging hardware and relative products, for the steel construction industries, Engineering Heavy Industries, Marine & Engineering, Shipbuilding, Port, Oil & Gas function etc. We also supply OEM service to our business partners all over the world.

We have the advantage of supplying high strength, high toughness, extra large diameter and special structure wire rope & sling for Oil & Gas, Mining, Jack-ups, Shipbuilding, Marine, Offshore projects, Oil Drilling, Steel construction, Fishing, and other use.

The main products are Steel wire ropes, Wire Rope Slings, Anchor Chain, Lifting Chain sling, Polyester rope, Polyester Sling, Lifting and Rigging Hardware and some other customized products. During production, ISO9001:2015 international standards, GB, DIN, BS, JIS, ASTM, RR-W-410, API, ISO otc national standards are strictly implemented.

We insist on service management, quick response, rapid logistics and digital management, and professional product operation mode to keep good custom service.

What We Always Follow：

Safety First, response Fast. We are firmly believe that nothing is more important than safety

What we passion on:

Lifting all, Supply More. We sincerely offer you not just products.

What We are Aim At:

Free Sample - To be your Business Partner

What is Our Vision：

China OEM - Help to win your Market

Our business range also including the marine stores,supply according to IMPA & ISSA book.
With strong network,we are capable of delivering to all major ports and shipyards in China or abroad.
