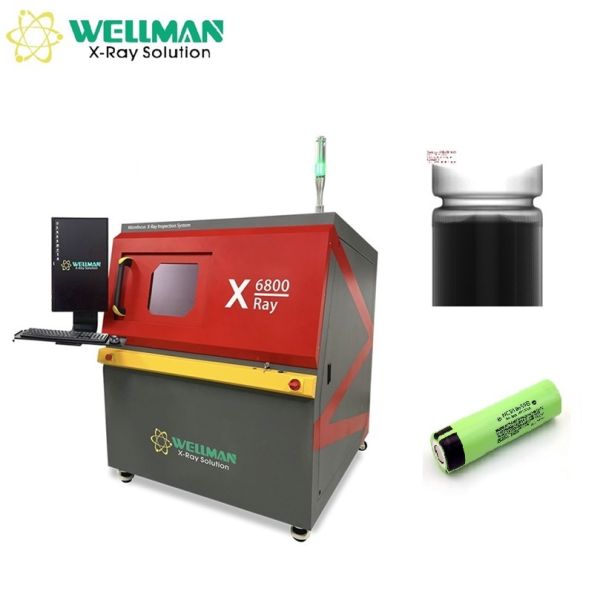

Wellman X-ray Inspection System X6800 – PCB/SMT Defect Detection + 10,000-Hour Maintenance-Free Tube
Key Advantages
  • Tiltable FPD (60° range) maintains magnification without compromise
  • Automatic navigation window - table moves to clicked locations
  • 530×530mm table with 10KG load capacity
  • Speed adjustable 5-axis linkage system
  • Closed type X-ray tube with over 10,000 hours lifetime, maintenance-free
  • New generation 5" HD digital flat panel detector (FPD)
  • Programmable inspection procedures for automated batch inspection
  • Intuitive operation with quick defect identification (2-hour training required)
Working Principle
X6800 PCB X-ray Inspection Machine working principle diagram
Hardware Specifications
X-ray Source
TypeClosed, microfocus
Max tube voltage90kV
Max tube current200μA
Focal spot size5μm
FunctionAuto preheat
Flat Panel Detector
Effective area130mm×130mm
Pixel size85μm
Resolution1536×1536
Frame rate20fps
Tiltable angle60°
Table Specifications
Size530mm×530mm
Detectable area500mm×500mm
Max load10kg
Equipment Specifications
MagnificationGeometry 200X | System 1500X
Inspection speedMax 3.0s/point
Dimensions1360mm (L) × 1365mm (W) × 1730mm (H)
Weight1200kg
Power supplyAC110-220V 50/60HZ
Max power1500W
Industrial PCI5 CPU, 8G RAM, 500GB SSD
Displayer24" HDMI LCD
Safety Features
  • Radiation leakage: No leakage (≤1μSv/h, international standard)
  • Transparent lead glass observation window for safe internal viewing
  • Window and back door safety interlock system
  • Electromagnetic safety switch locks when X-ray is active
  • Emergency stop button near operation position
  • Tube protection prevents leaving software without closing X-ray
Software Capabilities
Core Functions
  • Mouse/keyboard controlled X-ray tube operation with real-time voltage/current display
  • Status bar showing interlock, pre-heat, and X-ray status
  • Adjustable image brightness, contrast and gain
  • Product list for saving and recalling inspection parameters
  • Navigation window for precise table positioning
  • Real-time motion axis coordinate display
  • Inspection results display (voids rate, distance, area, etc.)
  • Adjustable axis movement speeds (slow/normal/fast)
Voids Rate Measurement
  • Automatic calculation of solder ball voids with NG/OK indication
  • Adjustable grayscale threshold, pixel, contrast, and size filtering
  • Manual void addition via polygon/freehand drawing
  • Parameter saving for consistent product inspection
Measurement Functions
  • Distance measurement between points
  • Distance rate calculation for through-hole soldering
  • Angle measurement between points
  • Radius measurement for circular components
  • Perimeter measurement for square components
Automatic Inspection
  • Manual inspection point setting
  • Array inspection for regular patterns
  • Automatic feature recognition for distinctive inspection points
Application Examples
