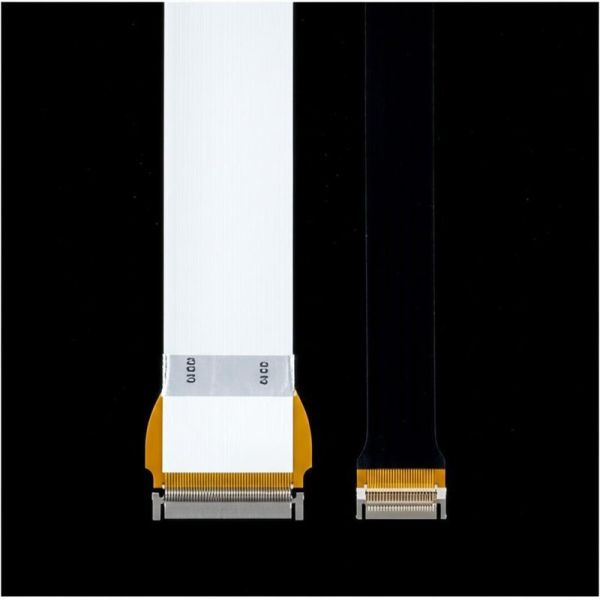

Customizable Thickness FFC Cable Assembly with Optional Shielding and Rohs Compliance

Product Description:

A Flat Ribbon Cable Assembly is an essential component used in various electronic devices and applications to provide a reliable and organized connection between different components. One such example is the FFC Cable Assembly, which offers a versatile solution for connecting electronic components in a wide range of devices.

The FFC Cable Assembly is designed with high-quality materials and precise construction to ensure optimal performance and durability. With a sleek black color, this cable assembly not only offers a professional appearance but also enhances the overall aesthetics of the device it is used in.

One of the key features of the FFC Cable Assembly is its customizable length, allowing for flexibility in different applications. Whether you need a short cable for compact devices or a longer cable for more extensive setups, the customizable length of the FFC Cable Assembly ensures that you get the perfect fit for your specific needs.

When it comes to current rating, the FFC Cable Assembly offers varying options depending on the specific product chosen. This versatility allows you to select the appropriate current rating that matches the power requirements of your device, ensuring safe and reliable operation.

The FFC Cable Assembly is equipped with bandaging materials in the form of adhesive tape, providing secure insulation and protection for the internal conductors. This adhesive tape not only keeps the conductors in place but also helps in reducing the risk of damage or interference, enhancing the overall reliability of the cable assembly.

With conductor pitch options ranging from 0.5mm to 2.54mm, the FFC Cable Assembly offers compatibility with a wide range of electronic components and devices. Whether you need a fine pitch for compact designs or a larger pitch for easier connections, the FFC Cable Assembly provides the versatility you need for various applications.

In conclusion, the FFC Cable Assembly is a reliable and flexible solution for connecting electronic components in a wide range of devices. With its customizable length, varying current rating options, adhesive bandaging materials, and multiple conductor pitch choices, this cable assembly offers the versatility and performance needed for efficient and effective electronic connections.

Features:

• Product Name: FFC Cable Assembly
• Conductor Type: Cu
• Dimension: 550*32mm
• Thickness: Customizable
• Application Situation: TV, Home Appliance, Computer
• Shielding: Optional

Technical Parameters:

Applications:

A Flat Ribbon Cable Assembly is a versatile product that can be used in various applications and scenarios due to its customizable width and length. The impedance characteristics of the cable assembly are set at 100 ohms, making it suitable for high-speed data transmission and other electronic applications that require a consistent impedance level.

One common application scenario for the Flat Ribbon Cable Assembly is in the field of telecommunications. The cable assembly's 100-ohm impedance characteristics make it ideal for use in networking equipment, such as routers, switches, and servers. Its customizable width and length also allow for easy integration into different network configurations.

Another key application occasion for the Flat Ribbon Cable Assembly is in industrial automation. The cable assembly's high voltage rating of 30V makes it a reliable choice for connecting various industrial sensors, control systems, and other automation components. The optional shielding feature provides additional protection against electromagnetic interference, which is crucial in industrial environments with high levels of electrical noise.

Furthermore, the Flat Ribbon Cable Assembly is commonly used in automotive electronics, where its customizable dimensions and 100-ohm impedance characteristics are essential for reliable signal transmission in vehicles. The cable assembly can be found in applications such as onboard diagnostics, infotainment systems, and electronic control units.

In summary, the Flat Ribbon Cable Assembly is a versatile product that finds its place in a wide range of applications and scenarios, thanks to its customizable width and length, 100-ohm impedance characteristics, 30V voltage rating, and optional shielding feature. Whether in telecommunications, industrial automation, automotive electronics, or other fields, this cable assembly provides a reliable and efficient solution for various connectivity needs.
