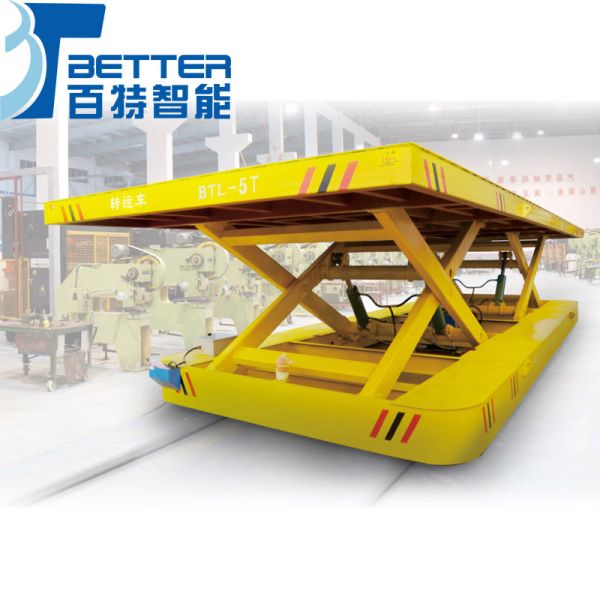

5t AGV Rotating Jacking Device Hydraulic Lifting PlatformTransfer
Cart
This 5-ton AGV rotary lifting hydraulic material handling platform
integrates automatic guidance technology and hydraulic lifting
function, providing highly flexible automated material handling
solutions for smart factories and logistics centers. The equipment
has a load-bearing capacity of 5 tons and can achieve precise
lifting and 90°-360° horizontal rotation during transportation,
making it easy to connect with assembly lines or packaging lines.
Equipped with laser navigation and multi-sensor obstacle avoidance
systems, it supports unmanned operation. It is applicable to
scenarios such as flexible assembly, effectively enhancing space
utilization, reducing manual intervention, and facilitating the
continuous and efficient operation of industrial environments.
| Model | AGV-5T | AGV-20T | AGV-30T | AGV-40T |
| Carrier type | Backpack |
| Appearance dimensions(mm) | 3200L*2000W*800H | 4000L*2000W*800H | 3500L*2200W*800H | 5200L*2000W*800H |
| Load(customizable) | 5,000KG | 20,000KG | 30,000KG | 40,000KG |
| Navigation method | Magnetic stripe navigation | Magnetic stripe navigation | Magnetic navigation | Magnetic stripe navigation |
| Driving mode | Wheel drive | Wheel drive | Steering wheel drive | Wheel drive |
| Communication method | Industrial WIFI |
| Walking direction | Forward/Backward/Up/down | Forward/Backward/Up/down | Move forward/backward/Drive in a straight arc/Turn left or right | Forward/Backward/Up/down |
| Operating speed | 20m/min |
| Stop accuracy | ±10mm |
| Navigation accuracy | ± 10mm |
| Working mode | 12 hours | 8 hours | 24 hours | 12 hours |
| Climbing ability | ≦ 3% |
| Special function | Lifting and lowering | Remote call | ≧4200mm(Magnetic strip laying radius) | Fixed mold |
| Power supply mode | Battery-powered | Battery-powered | Automatic charging/manual charging/battery replacement | Battery-powered |
| Safety sensing range | Adjustable within 3 meters, emergency braking distance less than
20mm |
| Alarm form | Dual alarm: voice playback and warning light indication |
| Safety protection | Front and rear area scanning obstacle detection sensors + emergency
stop button |
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a
partially completed product to the next station (tractors, heavy
equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to
locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard
rails)
8. Elevating platform for assembly process (integrated screw-jack
table)
9. Sand casting (flat decking)How can Transfer Carts be customized?Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per
day:)
What is the travel area you need to cover? (Rail/cement floor,
Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the
material handled. We really care about the safety of everyone
involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will
be able to use it to transport your loads. We will support you to
make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both
small and extremely huge loads for its modular fabrication and its
high payloads: up to 300 ton for each trolley.
*For lenght is less than 6m, the width is less than 2.2m. It will
be transported by 20ft container. If the length is longer than 5.9m
and less than 12m, it will be transported by 40ft container. If the
quantity is 2 sets or 3 sets, they can be transported by full
container. If the quantity is 1 set, it can be transported by LCL
Container.
* If the length is less than 12m, the width is beyond 2.2m. It
needs to be transported by flat rack (20 or 40 ft) . If the
equipment is beyond above dimension, and quantity need to consider
bulk cargo.
