CTL535R Microcomputer Control Energy Saving Environmental Protection Refrigerated Centrifuge for Blood Bank and Laboratory Use

Product Description

CTL535R desktop low-speed refrigerated centrifuge

Features

1. Microcomputer control, AC variable frequency motor drive, low noise, energy saving and environmental protection.

2. Instantaneous centrifugation and continuous centrifugation, a variety of memory centrifugal condition storage and program operation functions

3. Large-screen LCD display, humanized interface, dual-purpose touch buttons, can display the set value and actual value at the same time, display the running rotor capacity.

4.10 sets of acceleration and deceleration settings, unique damping shock absorption system.

5. Powerful refrigeration system, using imported eco-friendly refrigerants, high temperature control accuracy.

6. Equipped with multiple protections such as over speed, over temperature, door cover self-locking, unbalanced, stainless steel inner sleeve, and three-level protective sleeve to ensure the safety of people and machines.

7. When the countdown time less than one minute will display in seconds, and parameters can be changed arbitrarily during operation without stopping the machine.

8. Good temperature control effect, all the rotors can be maintained at 4℃ at the highest speed.

Technical parameter

Model	CTL535R	Temperature accuracy	±1℃
Maximum speed	5350r/min	Timing range	0-999min
Maximum RCF	5030×g	Power supply	AC 220V 50Hz 18A
Maximum capacity	3000ml	Machine noise	≤55dB(A)
Speed Accuracy	±20r/min	Dimensions	700×660×410mm
Power	1100W	Chamber diameter	Φ420
Temperature range	-20℃~+40℃	Net Weight	95kg

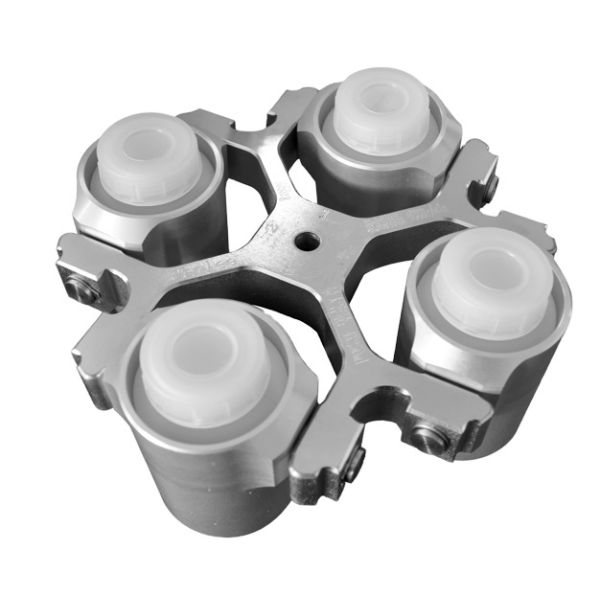

CTL535R Rotor

Rotor type	No.	Capacity	Max Speed(r/min)	Max RCF(×g)
Main machine	CTL535R		5350	5030
Angle rotor	NO.1	6×50ml	5350	5030
Swing rotor	NO.2	4×500ml	4000	3040
Test cup		4×500ml
Adapter		4×19×5ml
Adapter		4×9×15ml
Adapter	NO.2	4×7×20ml	4000	3040
		4×3×50ml
		4×300ml
		4×100ml
Swing cup		4×24×5ml(vacuum tube)
Swing cup		4×37×7ml(vacuum tube)
Micro plate rotor		4×2×96 Well
Square buckets		4x Buckets
Adapter		4×250ml
		4×4×50ml (cone form bottom)
		4×4×50ml (Round bottom)
		4×25×1.5ml
		4×10×15ml (cone form bottom)
		4×10×15ml (Round bottom)
		4×20×10ml
		4×28×5ml
Swing rotor	NO.3	4×750ml	4000	3500
Swing test cup		4×750ml
Adaptor		4×500ml (cone form bottom)
		4×300ml
		4×500ml
		4×2×100ml
		4×10×20ml
Adaptor	NO.4	4×4×50ml (cone form bottom)	4000	3500
		4×4×50ml
		4×14×15ml (cone form bottom)
		4×19×15ml
		4×24×7ml
		4×37×5ml
Swing rotor	NO.5	4×250ml	4200	3500
Swing test cup		4×250ml
Adaptor		4×7×10ml
		4×10×5ml
		4×4×20ml
		4×100ml
		4×6×15ml
		4×4×15ml (cone form bottom)
Adaptor	NO.6	4×50ml (cone form bottom)	4200	3500
		4×50ml
		4×8×1.5ml
Micro plate rotor	NO.7	2×2×96 Well	4000	2200
