Model : LNK-WP-IPE102
Product Description & Overview
The LNK-WP-IPE102 is a professional-grade industrial Power over Ethernet extender engineered to
deliver reliable network expansion in demanding environmental conditions. This advanced 1-in-2-out
PoE extender features industrial IP67-rated waterproof construction with sealed housing and protected
terminal interfaces, providing complete defense against moisture, dust, and extreme weather conditions.
The device effectively extends Gigabit Ethernet connectivity up to 100 meters while delivering stable 50-57
V PoE power to multiple connected devices with total power capacity of 90W.
Designed for challenging deployment scenarios, this industrial network expansion solution maintains
optimal performance across a wide operating temperature range from -40°C to 80°C, ensuring continuous
operation in severe climate conditions. The intelligent power management system distributes 90W total
power while safeguarding connected equipment from voltage fluctuations and electrical surges. Perfect
for outdoor security surveillance systems, industrial automation networks, and telecommunications
infrastructure, this rugged PoE expansion device enables flexible multi-device deployment without
compromising data transmission quality or power reliability.
The compact and durable design incorporates advanced thermal management and corrosion-resistant
materials, making it ideally suited for permanent installations in manufacturing plants, transportation
networks, and remote monitoring applications. With its straightforward installation and maintenance-free
operation, this industrial PoE extender provides a cost-efficient solution for expanding network coverage
while maintaining enterprise-level performance standards in challenging environments, delivering dependable
connectivity for critical communication systems and multi-device security networks requiring reliable power
and data transmission.
Key Features Bullets
Industrial IP67-Rated Enclosure
Waterproof aluminum housing provides complete environmental
protection
Multi-Port PoE Expansion
1 input + 2 output port configuration for flexible device
connectivity
Extended Network Coverage
Enables 100-meter Ethernet extension with full PoE power delivery
Universal PoE Compatibility
All ports support IEEE 802.3af/at/bt standards
Extreme Temperature Operation
Reliable performance across -40°C to 80°C range
Advanced Network Optimization
2K MAC address table and 10kB jumbo frame support
Simplified Deployment
Plug-and-play installation with wall-mount capability
High-Speed Data Transmission
10/100/1000Mbps auto-negotiation on all ports
Self-Powered Operation
No external power supply required for installation
Technical Specifications & Indexes
| |
PoE Input Port | 1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
PoE Output Port | 2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
Cascade Connection | Support 3 grade |
Power over Ethernet | |
PoE Standard | IEEE 802.3af/at/bt |
PoE Power Supply Type | Mid-span and End-span |
PoE Pin Assignment | 1/2(+), 3/6(-), 4/5 (+), 7/8 (-) |
Input Voltage | IEEE802.3 bt 90W |
PoE Output Power | Maximum 65W |
Single Port PoE Output | Maximum 60W |
Switch Property | |
Standards | IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet |
Forwarding Modes | Store and Forward |
Transmission Distance | Each extender extends by 100m, max 3 grade Cascade, total 400m. |
MAC Table | 2K |
Switching Capacity | 6Gbps |
Packet Forwarding Rate | 4.46Mpps |
Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
Jumbo Frame | 10K bytes |
Environment | |
Surge Immunity | 6KV, Standard: IEC |
ESD Protection | 6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2 |
Protection Level | IP 67 |
Explosion-Proof Rating | IK10 |
Operating Temperature | -40°C to 80°C (-40°F to 176°F) |
Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Operating Humidity | 0~95% (non-condensing) |
Physical Parameter | |
Dimensions (WxDxH) | 195 x 75 x 46 mm |
Weight | 0.6 kg |
Casing | Aluminum Case |
Mounting Options | Wall-mount |
Certifications | |
Certifications | CE, FCC, RoHS |
Ordering information
Model | Description |
LNK-WP-IPE102 | IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 2 x Output |
Mounting Options | Wall Mount Bracket is included. |

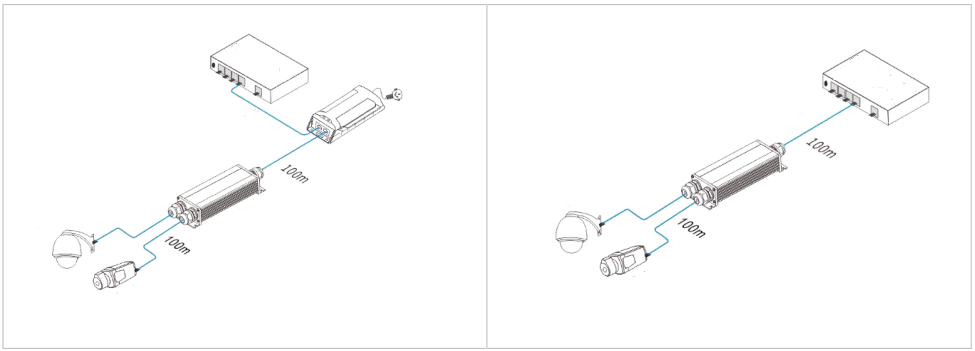

Application Scenarios
Extending connectivity for multiple outdoor security cameras
Supporting dual wireless access points in harsh environments
Enabling network expansion for industrial control systems
Providing PoE connectivity for outdoor digital signage networks
Facilitating multi-device deployments in transportation infrastructure
|
