| Categories | Stationary Meter Test System |
|---|---|
| Brand Name: | GENY |
| Model Number: | YC1893D/YC1891D |
| Certification: | ISO, CE |
| Place of Origin: | CHINA |
| Payment Terms: | L/C,T/T,D/P |
| Supply Ability: | 100/Year |
| MOQ: | 1 pcs |
| Price: | Negotiation |
| Delivery Time: | 30 days after order confirmed |
| Packaging Details: | Plywood case |
| Test Voltage (Phase-Neutral): | 3 × (24 V - 500 V) or customized |
| Test Current:: | 3 × (1 mA - 120 A) |
| Setting accuracy: | Better than 0.05% at the final range value |
| Stability: | Better than 0.005%/h(integrantion time 150s) |
| Distortion Factor: | Better than 0.3% for linear resistance load |
| Company Info. |
| Guangzhou GENY Electric Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

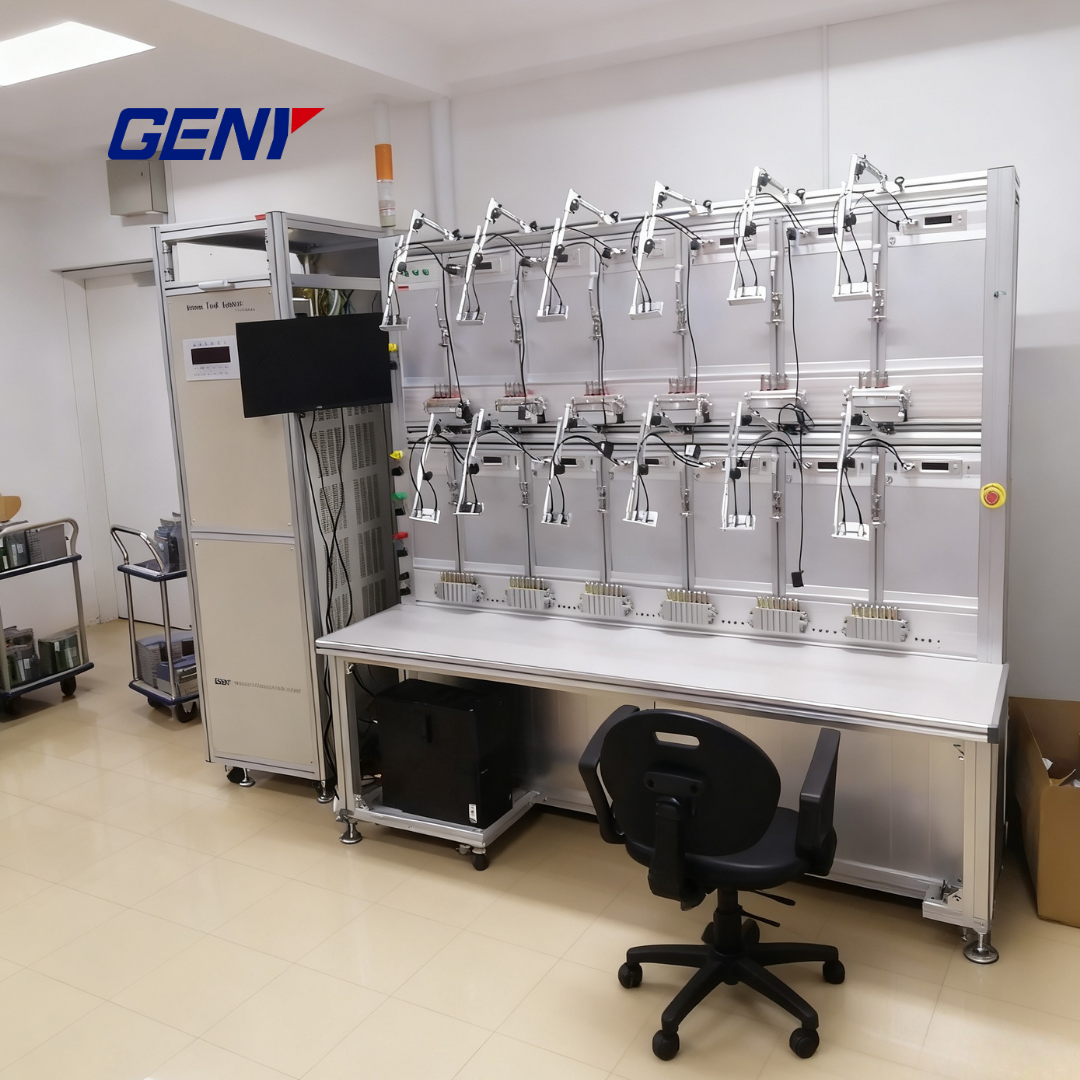

Guangzhou GENY Electric Co., Ltd Meter Test System is a high-precision solution designed for testing, calibration, and verification of single-phase and three-phase energy meters. Built with advanced control and measurement technology, it ensures exceptional accuracy, stability, and reliability under a wide range of environmental and electrical conditions. Perfect for laboratories, power utilities, and meter manufacturers.
Test Voltage (Phase–Neutral): 3 × (24 V – 500 V) or customized
Output Power: 3 × 100 VA
Resolution: < 0.01% of full-scale range
Setting Accuracy: < 0.05% at final range value
Stability: < 0.005%/h (integration time 150 s)
Load Regulation (0–max): < 0.01%
Distortion Factor: < 0.3% (linear resistive load)
Harmonics: Programmable 2nd to 21st order
Test Current: 3 × (1 mA – 120 A)
Output Power: 3 × 150 VA
Resolution: < 0.01% of full-scale range
Setting Accuracy: < 0.05% at final range value
Stability: < 0.005%/h (integration time 150 s)
Load Regulation (0–max): < 0.01%
Distortion Factor: < 0.3% (linear resistive load)
Harmonics: Programmable 2nd to 21st order
Range: 0° – 360°
Resolution: 0.01°
Accuracy: ±0.1°
Range: 45 Hz – 65 Hz
Resolution: 0.01 Hz
High-precision measurement with accuracy up to ±0.01%
Programmable harmonics for flexible testing (2nd–21st order)
Stable operation under wide temperature and humidity ranges
User-customizable voltage and current output ranges
Built-in surge protection and advanced grounding system
Ideal for energy meter calibration, power testing, and R&D applications
|
