Fabric Softness Tester/Paper Softness Test Machine / Softness Test Equipment
Introduction:

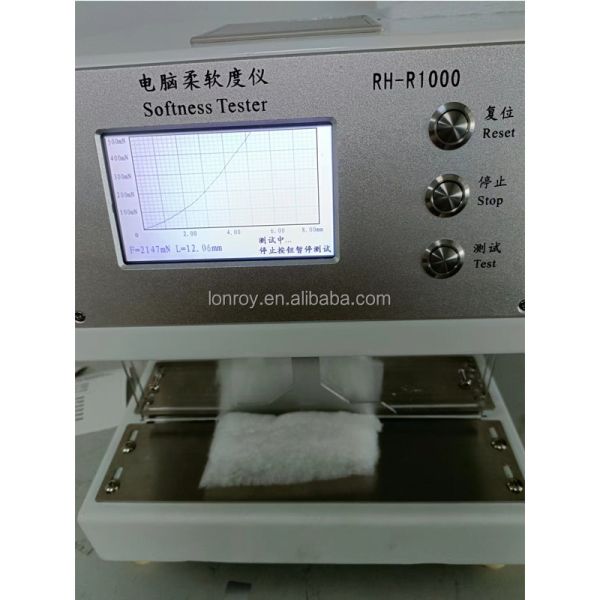

LR-R1000 Softness Tester is made according to the US Handle-O-Mete instrument principle. It applies to the softness measurement for material such as toilet paper of all grades, tobacco sheet, fabric ect.
Fabric Softness Tester/Paper Softness Test Machine / Softness Test Equipment
Feature:
1.Force transducer with high precision, ensure that the test
accuracy error within ±1%, better than ±3% standards.
2. Using stepper motor, the testing process is precision and
stability. The determination results have good repeatability.
3.High resolution color touch screen display in English,
human-computer interface. Automatic test with statistical data
handling. Using the micro printer, also can connect the computer
operation.
4.With special calibration weights and lever, facilitate
measurement and calibration.
Standards:
T498Su,GB/T8942, YC/T16,QB/T1060
Fabric Softness Tester/Paper Softness Test Machine / Softness Test Equipment
Technical Parameters:
MEASURE RANGE | (10 ~1000)mN |
RESOLUTION | 1mN |
ACCURACY | ±1% |
TEST SPEED | 1.2±0.24mm/s |
DEPTH | 8mm |
WIDTH | 5mm,6.35mm,10mm,20mm |
PARALLELISM ERROR | ≤0.05mm |
DIMENSIONS | 323×281×302mm |
WEIGHTS | 15kg |
POWER | AC220V,50Hz |
NOTE: Customizable MEASURE RANGE (10 ~9000)mN.





|
