Polyimide Adhesive Tape Durable& Heat-resistant& Insulating& High-strength Adhesion

Categories Polyimide Film Adhesive Tape
Model Number: K2321
Certification: RoHS
Place of Origin: CHINA
MOQ: 500m2
Price: based on sizes and quantity
Payment Terms: L/C,T/T
Supply Ability: 50,000m2 per month
Delivery Time: 35 working days
Packaging Details: Export carton case
Product Category: Polyimide Film Adhesive Tape
Halogen Free: Yes
Thickness: 30um~100um
Standard Roll Length: 33 meters
Base Material Thickness Options: 7.5 µm, 12.5 µm, 25 µm, and 50 µm
BDV: ≥2.0KV
Working temp.: 180℃ (long Term)
Temperature Range: -73℃ to 260℃
Tensile Strength: ≥25N/10mm
Adhesion: ≥1.8N/10mm
Features: Polyimide Film Adhesive Tape
Application: High Temperature Applications
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

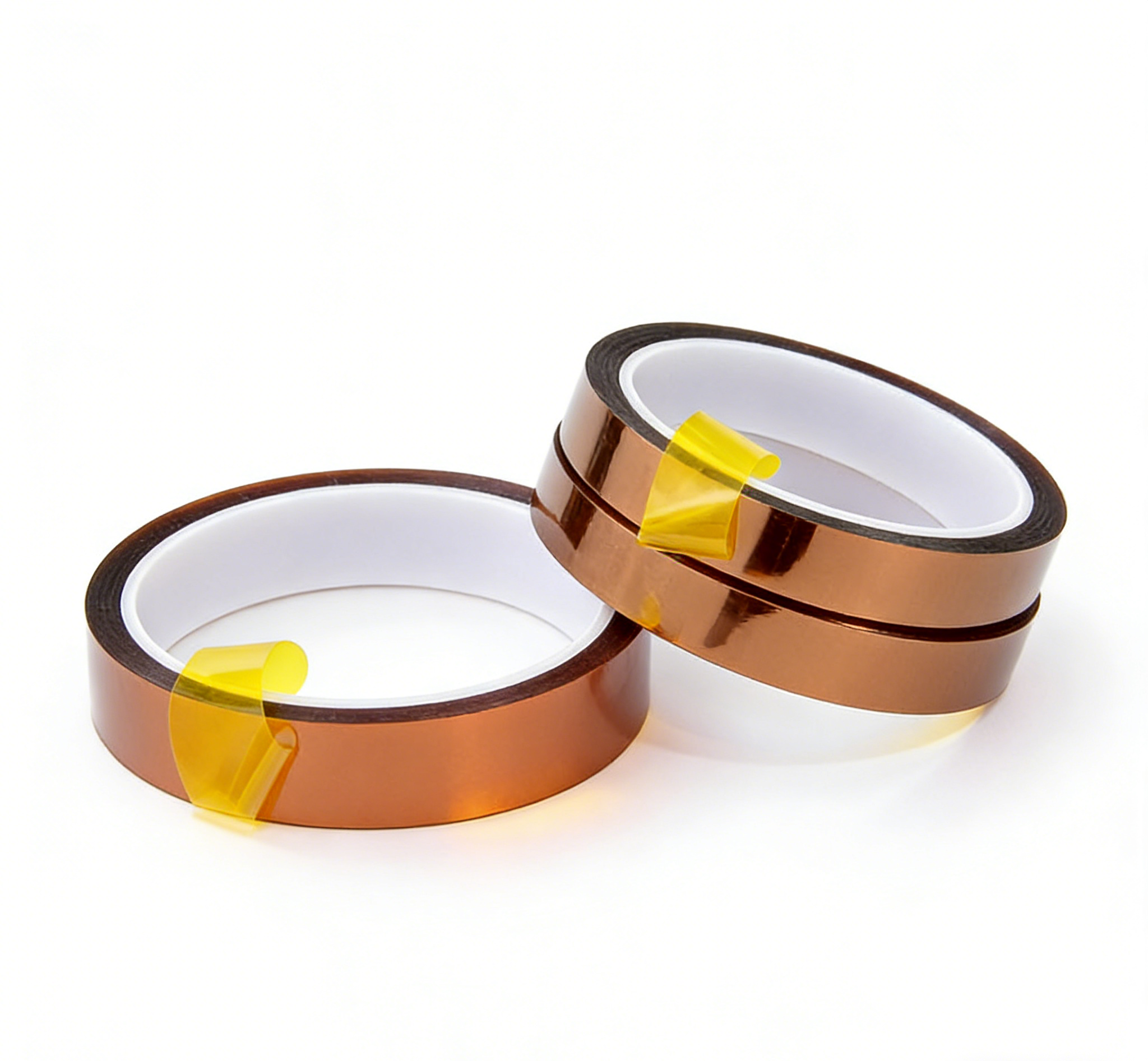

Polyimide Adhesive Tape Durable& Heat-resistant& Insulating& High-strength Adhesion

Product Description

The polyimide adhesive tape is engineered for demanding applications, delivering durable high-temperature resistance, reliable insulation, and strong adhesion. It ensures secure, long-lasting bonds in environments such as PCB electrical insulation, with customizable thicknesses available to suit specific needs.


Technical Specifications

RoHS CompliantYes
Adhesive TypePressure Sensitive Silicone Adhesive
Temperature Range-73℃ to 260℃
Adhesion Strength≥1.8N/10mm

Key Advantages

  • Exceptional Thermal & Electrical Performance: Excellent high-temperature resistance and electrical insulation for demanding applications.
  • Outstanding Durability: High mechanical strength and strong chemical resistance ensure reliable, long-lasting protection.
  • Secure Bonding with Built-in Safety: Features inherent flame retardancy and reliable pressure-sensitive adhesion.
  • Comprehensive Capability: A balanced combination of key properties ideal for challenging industrial environments.

Primary Applications

  • Electronics Manufacturing: Used for PCB solder masking, FPC (flexible printed circuit) fixation, and insulation of motor and transformer coils.
  • Semiconductor Processing: Applied in high-precision temporary masking during etching, plating, and ion implantation stages.
  • Industrial & Aerospace: Suitable for high-temperature paint masking, motor insulation, and wire harness protection in demanding environments.
