1.1 Inch OLED Display Module with 96x96 Resolution and 4-Wire SPI
Interface
This high-performance 1.1-inch OLED module features 96×96
resolution and 4-Wire SPI interface support, offering monochrome
white display. Equipped with SH1107 driver IC, COG packaging,
10000:1 ultra-high contrast ratio, and all-direction viewing
angles, it delivers clear, sharp visuals with fast response time.
With low power consumption, wide operating temperature range (-20℃
to +70℃), and long service life (up to 20,000 hours at 100 cd/m²),
it's ideal for portable devices, smart wearables, IoT terminals,
industrial controls, and medical instruments.
Key Specifications
| Product | 1.1 inch OLED Module | Module Number | E110XD-W-C10-01 |
| Resolution | 96(H)×96(V) dots | Display Color | White (Monochrome) |
| Brightness | 80 Cd/m² (Min.), 100 Cd/m² (Typ.) | Outline Dimension | 25.49(W)×29.1(H)×1.45(T) mm |
| Viewing Direction | All O'Clock | Active Area | 19.655(W)×19.655(H) mm |
| Interface | 4-Wire SPI | Operating Temperature | -20 to +70 ℃ |
| Driver IC | SH1107 | Storage Temperature | -30 to +80 ℃ |
| IC Package Type | COG (Chip on Glass) | Drive Duty | 1/96 |
| Pixel Pitch | 0.205(W)×0.205(H) mm | Contrast Ratio | 10000:1 (Dark Room) |
| Pixel Size | 0.18(W)×0.18(H) mm | Service Life | 20,000 hrs (@100 Cd/m², 50% checkerboard display) |
| Logic Supply Voltage (VDD) | 1.65 to 3.3 V (Typ.) | Display Supply Voltage (VCC) | 7.0 to 16.5 V (Typ. 15 V) |
Product Highlights: 1.1-inch OLED display, 96×96 resolution, 4-Wire SPI interface,
SH1107 driver IC, COG packaging, white monochrome display, 10000:1
ultra-high contrast ratio, all-direction viewing angle, wide
temperature range (-20~70℃), low power consumption (120~180 mW),
fast response time (0.02 ms), long service life (20,000 hours),
easy integration with mainstream MCUs
Technical Features
- COG (Chip on Glass) packaging for compact size (25.49×29.1×1.45mm)
and high reliability, perfect for space-constrained devices like
smart wearables
- 4-Wire SPI interface support for stable data transmission, with
flexible timing parameters (250~500 ns serial clock cycle based on
VDD)
- Low power consumption: 110~160 μA typical VDD current, 1~1.27 mA
typical VCC current, suitable for battery-powered devices
- Excellent optical performance: 10000:1 dark room contrast ratio,
100 Cd/m² typical brightness, 0.02 ms fast response time, no
afterimage
- Wide operating temperature range (-20℃ to +70℃) adapts to
industrial, consumer electronics and semi-harsh environment
applications
- High stability: Withstands storage temperature up to 80℃ (polarizer
max 80℃), built-in IREF pin for precise brightness adjustment
- Strong compatibility: Works with most MCUs, supports standard SPI
communication protocols, easy to debug and integrate
- Compliant with reliability standards: Passes high/low temperature
operation, high humidity storage and long-term aging tests
Electrical Specifications
Logic supply voltage (VDD): 1.65~3.3 V; Display supply voltage
(VCC): 7.0~16.5 V (Typ. 15 V)
Input high voltage (VIH): ≥0.8×VDD; Input low voltage (VIL):
≤0.2×VDD
Output high voltage (VOH): ≥0.8×VDD; Output low voltage (VOL):
≤0.2×VDD
SPI interface timing (VDD=2.4~3.5V): Clock cycle ≥250 ns, data
setup time ≥100 ns, data hold time ≥100 ns
SPI interface timing (VDD=1.65~2.4V): Clock cycle ≥500 ns, data
setup time ≥200 ns, data hold time ≥200 ns
Power consumption: 120~180 mW (30% pixels ON, L=100 cd/m²); Frame
frequency: 100 Hz (Typ.)
Pin Definition
| PIN> | Symbol> | Description > |
|---|
| 1 | VSS | Ground pin; Reference for all voltage signals, must be connected to
external ground |
| 2 | VDD | Power supply for core logic operation; Voltage range 1.65~3.3 V |
| 3 | CS | Chip select pin; Active low, used to select the module for SPI
communication |
| 4 | RST | Reset signal input; Pull low to initialize the module, keep high
during normal operation |
| 5 | A0 | Data/Command control pin; High for data transmission, low for
command transmission |
| 6 | SCL | Serial clock pin; Provides clock signal for SPI data
synchronization |
| 7 | SDA | SPI interface input/output pin; Transmits data between module and
controller |
| 8 | IREF | Segment output current reference pin; Connect to resistor for
brightness adjustment |
| 9 | VCOMH | COM signal deselected voltage level pin; Provides high-level
voltage for COM signal |
| 10 | VCC | Power supply for panel driving voltage; Voltage range 7.0~16.5 V |
Application Scenarios
- Smart wearables (smart watches, fitness trackers, sports bracelets)
- Portable electronic devices (handheld meters, portable detectors,
data loggers)
- IoT terminals and smart sensors (environmental monitors, wireless
controllers)
- Industrial control systems (compact PLC panels, sensor data
displays)
- Medical instruments (portable medical monitors, small diagnostic
equipment)
- Consumer electronics (smart home controllers, small POS machines)
- Automotive electronics (in-vehicle small displays, secondary
control panels)
- DIY electronics and hobby projects (Arduino/Raspberry Pi compatible
displays)
Customization Options
- FPC Design: Flexible FPC length and pin layout adjustments to match specific
system integration requirements
- Brightness Tuning: Customizable brightness levels (80~150 Cd/m²) based on application
scenarios (e.g., outdoor/indoor use)
- Interface Optimization: SPI clock frequency adjustment and initialization code adaptation
for specific MCUs
- Polarizer Customization: Different polarizer types (wide view, anti-glare) for special
viewing environment needs
- Packaging Solution: Custom anti-static packaging, vacuum packaging with desiccant for
long-term storage (over 6 months)
- Warranty Extension: Extended warranty options (18~24 months) for bulk orders (500+
pcs)
- Labeling Service: Custom part number or logo printing on FPC for inventory
management
Handling Notes
- Electrostatic Protection: Use anti-static bracelets and grounded tools during handling.
Avoid assembly in dry environments (recommended relative humidity
45%~60%). Do not touch pins, FPC patterns or polarizer directly
with bare hands.
- Cleaning Instructions: The polarizer surface is fragile and scratch-prone. Clean with
soft cotton cloth soaked in petroleum IPA (isopropyl alcohol). Do
not use water, ethyl alcohol, ketone or aromatic solvents—they may
damage the polarizer.
- Storage Conditions: Store in anti-static containers at 23±5℃, humidity ≤45±20%RH.
Avoid direct sunlight, high temperature/humidity or low temperature
environments. Use modules within 6 months; recheck performance if
stored over 12 months.
- Operation Precautions: Follow power-on sequence (VDD → RST initialization → A0/CS/SCL/SDA
setup → VCC → Display ON) and power-off sequence (Display OFF → VCC
OFF → VDD OFF). Do not apply signals when power is off; avoid fixed
pattern display for long periods.
- Soldering Tips: Welding temperature: 320~350℃; Welding time: ≤10 seconds per pin.
Do not stay too long in the same place to avoid FPC damage. Use
flux carefully to prevent corrosion of pins.
- Mechanical Protection: Do not crush, shake or jolt the module. Do not apply excessive
force on the glass panel or bend FPC forcibly (bending radius ≥5
mm).

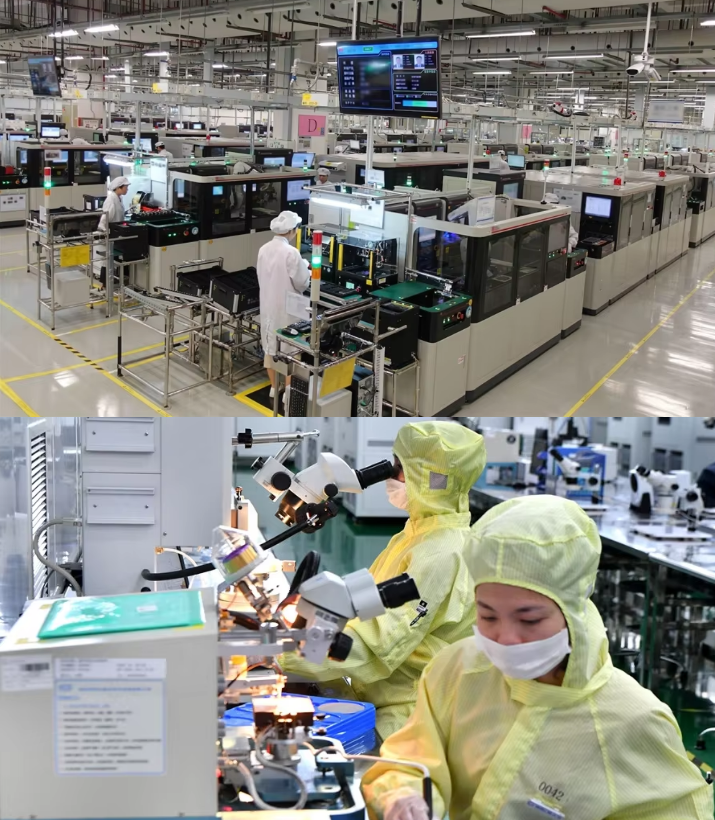

Our Factory
