| Categories | Gantry Crane |
|---|---|
| Place of Origin: | Henan, China |
| Brand Name: | HUAGONG |
| Price: | 3000~9000 USD |
| Model Number: | MH |
| Certification: | CE |
| MOQ: | 1 SET |
| Payment Terms: | T/T |
| Delivery Time: | 25 Days |
| Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided |
| Core Components: | Engine, Bearing, Gearbox, Motor |
| Application: | Outdoor |
| Rated Loading Capacity: | 20 Ton |
| Rated Lifting Moment: | 50KN~3000KN |
| Max. Lifting Height: | 6/9m |
| Warranty: | 1 Year |
| Weight (KG): | 12540 kg |
| Power supply: | Customer request |
| Control method: | Remote Controller and ground control |
| Color: | Clients' Requirments |
| Lifting speed: | Variable Speed (standard) |
| Crane feature: | Easy Operated Girder Gantry Crane |
| Lifting mechanism: | Electric hoist |
| Type: | MH |
| Main electrical parts: | According to customer's needs |
| Company Info. |
| Henan Huagong Industrial Group Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Lifting capacity(t) | 3-16 | |||
| Span(m) | 12 | 16 | 20 | 24 |
| Lifting Height(m) | 6/9 | 9 | ||
| working duty | A4 | |||
| Steel track Recommended | P38 | P43 | ||
| Power source | A3 380V 50Hz | |||
Product UsageScenario display

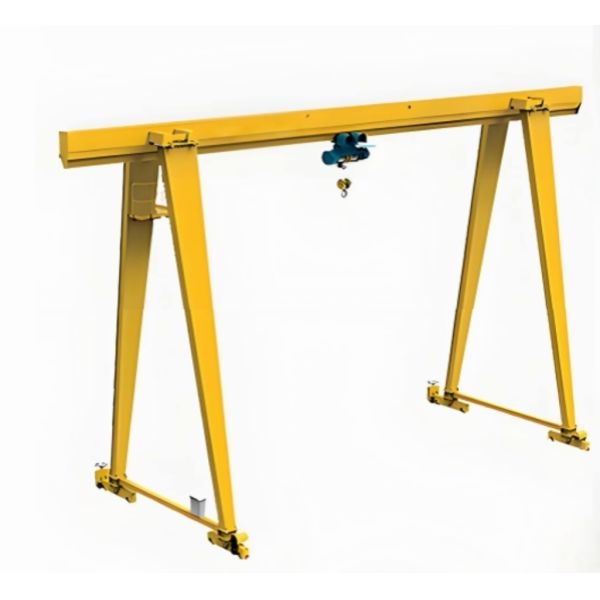

Taking electric hoist as the lifting mechanism, single beam gantry cranecould perform tasks with high efficiency and stability.

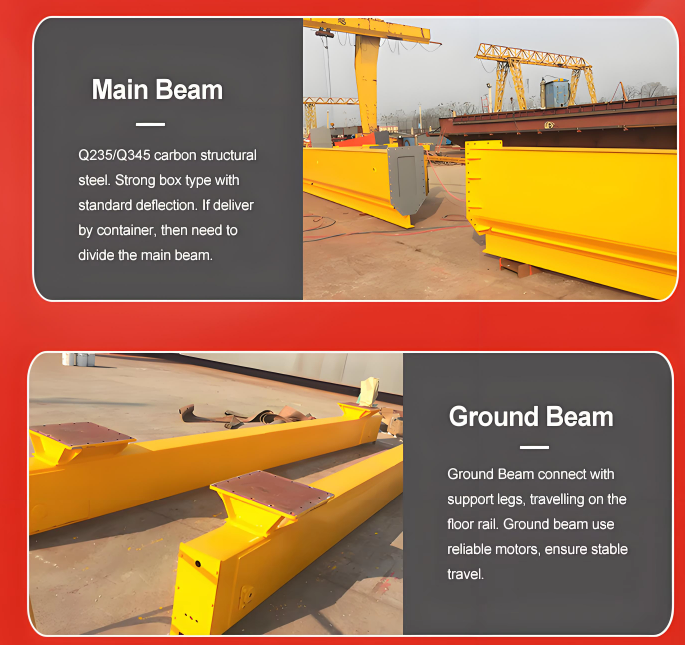

Main Beam
Q235/Q345 carbon structuralsteel. Strong box type withstandard deflection. If deliverby container, then need todivide the main beam.
Ground Beam
Ground Beam connect withsupport legs, travelling on thefloor rail. Ground beam usereliable motors, ensure stabletravel.

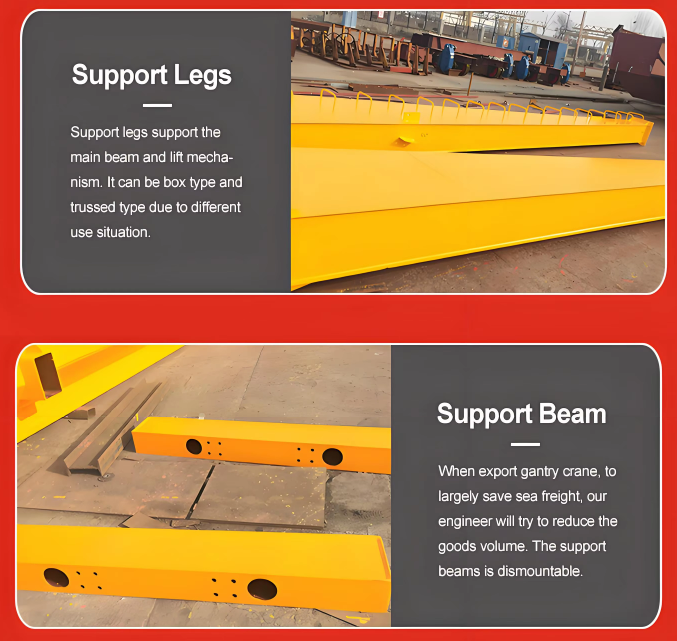

Support Legs
Support legs support themain beam and lift mecha-nism. It can be box type andtrussed type due to differentuse situation.
Support Beam
When export gantry crane, tolargely save sea freight, ourengineer will try to reduce thegoods volume. The supportbeams is dismountable.
Crane Hoist
Pendent & remote control
Capacity:3.2-32t
Height max 100m
1.Production Drawings
4.End Beams Processing
7.Electrlcal Control Unlt
2.Steel Plate Unfolded
5.Preassembled
8.Examination of product
3.Welded main beam
6.Productlon of electrlc holst
9.Packing and dellvery
|
