| Categories | DC Planetary Gear Motor |
|---|---|

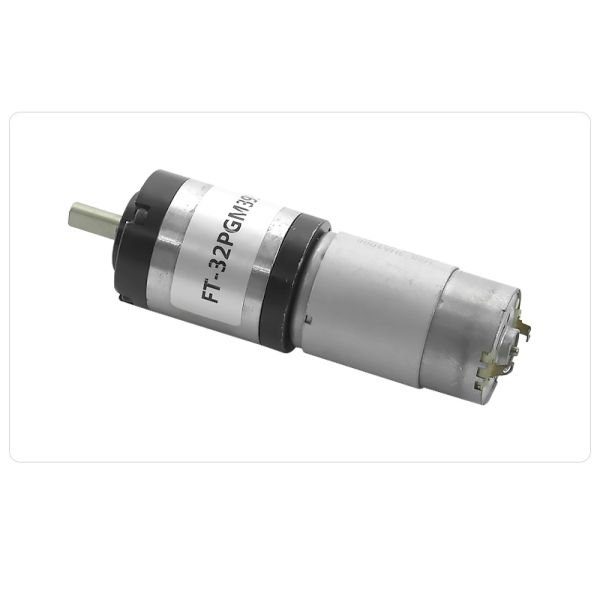

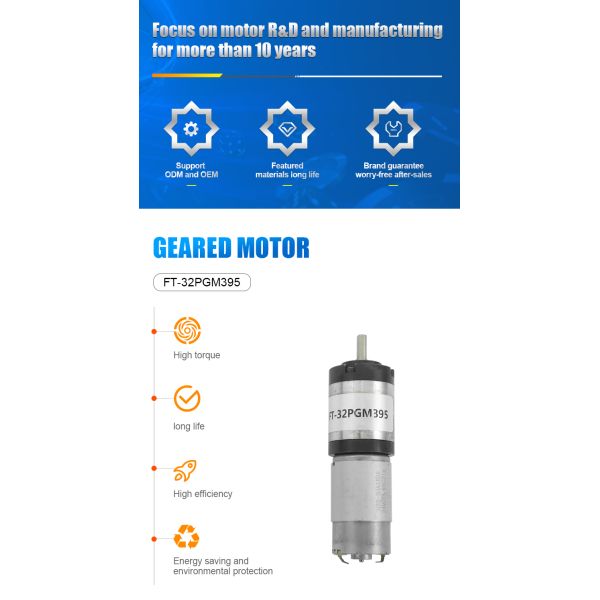

| Model Number: | FT-32PGM395 |
| Brand Name: | FUTENG |
| Place of Origin: | China |
| MOQ: | 1000 Pieces |
| Price: | Negotiable |
| Certification: | CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949 |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 8000 0000 |
| Delivery Time: | 15-30 days/Negotiable |
| Packaging Details: | Standard Export Carton & Customzied |
| Continuous Current(A): | about 430mA-2500mA |
| Torque: | 1-57kgf.cm, 80/95/100/90(g.cm) |
| Type: | Gear Motor |
| Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home |
| Warranty: | 3 months ~ 1 year |
| Geared motor model: | FT-32PGM395 |
| Gear box size: | 32mm |
| Voltage: | 1-24V |
| Speed: | 2rpm-800rpm |
| Rotating speed: | 7500/6000/10000(rpm) |
| Rated voltage: | 6v/12v/24v |
| Current: | 400/180/80/100(mA) |
| Output: | 15/10.2/10.32/12.96(w) |
| Name: | DC Planetary Gear Motor |
| Company Info. |
| Dongguan Futeng Motor Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Gearbox Data: | ||||||||
Gear stage | 1 | 2 | 3 | 4 | ||||
Reduction ratio (K) | 3.7,5.2 | 14,19,27 | 51,71,100,139 | 189,264,369,515,721 | ||||
Gear box length L(mm) | 25.5 | 35.5 | 41.5 | 49.5 | ||||
Rated torque (kg·cm) | 3 | 6 | 9 | 17 | ||||
Instant torque (kg·cm) | 6 | 10 | 20 | 35 | ||||
Gearbox efficiency (%) | 90% | 81% | 73% | 65% | ||||
Motor Data | ||||||||||||||||||
Motor Model | No Load | Load | Stall | |||||||||||||||
Motor Model | Rated Voltage | Speed | Current | Speed | Current | Output | Torque | Current | Torque | |||||||||
V | (rpm) | (mA) | (rpm) | (mA) | (w) | (g·cm) | (mA) | (g·cm) | ||||||||||
FT-395 | 6 | 10000 | 400 | 8400 | 2500 | 15 | 80 | 8800 | 430 | |||||||||
FT-395 | 12 | 6000 | 180 | 5000 | 850 | 10.2 | 95 | 2700 | 560 | |||||||||
FT-395 | 24 | 6000 | 80 | 5000 | 430 | 10.32 | 100 | 1500 | 560 | |||||||||
FT-395 | 24 | 7500 | 100 | 6300 | 540 | 12.96 | 90 | 1800 | 600 | |||||||||
|
