Smart City Pilot Projects IP66 7P 15A Rated Loading PBT Material Developer Kit

Categories Developer Kit
Brand Name: LongJoin
Model Number: 241J 7P
Place of Origin: China
Price: negotiable
Packaging Details: Different packaging methods are adopted according to different modes of transport.
Payment Terms: Western Union,MoneyGram,T/T
Rated Voltage: Max 480Vac
Rated Loading: 15A
Signal Control: 0-30 VDC, 250 mA Max
Material Quality: PBT
Ambient Temperature: -40℃~ + 70℃
Real-world Scenarios: Smart City Pilot Projects
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Smart City Pilot Projects IP66 7P 15A Rated Loading PBT Material Developer Kit

Smart City Pilot Projects IP66 7P 15A Rated Loading PBT Material Developer Kit
241J 7P

Product Summary

Shanghai Longjoin Wireless Single Lamp Controller Housing Kit is based on 5pin and 7pin NEMA interfaces, and is mainly used for lighting energy-saving control and other built-in electronic controller products. The power connection adopts standard NEMA plugs, which are rotationally locked; The signal connection uses gold plated shrapnel to ensure stable transmission and achieve intelligent control of lighting equipment.

Product Dimensions

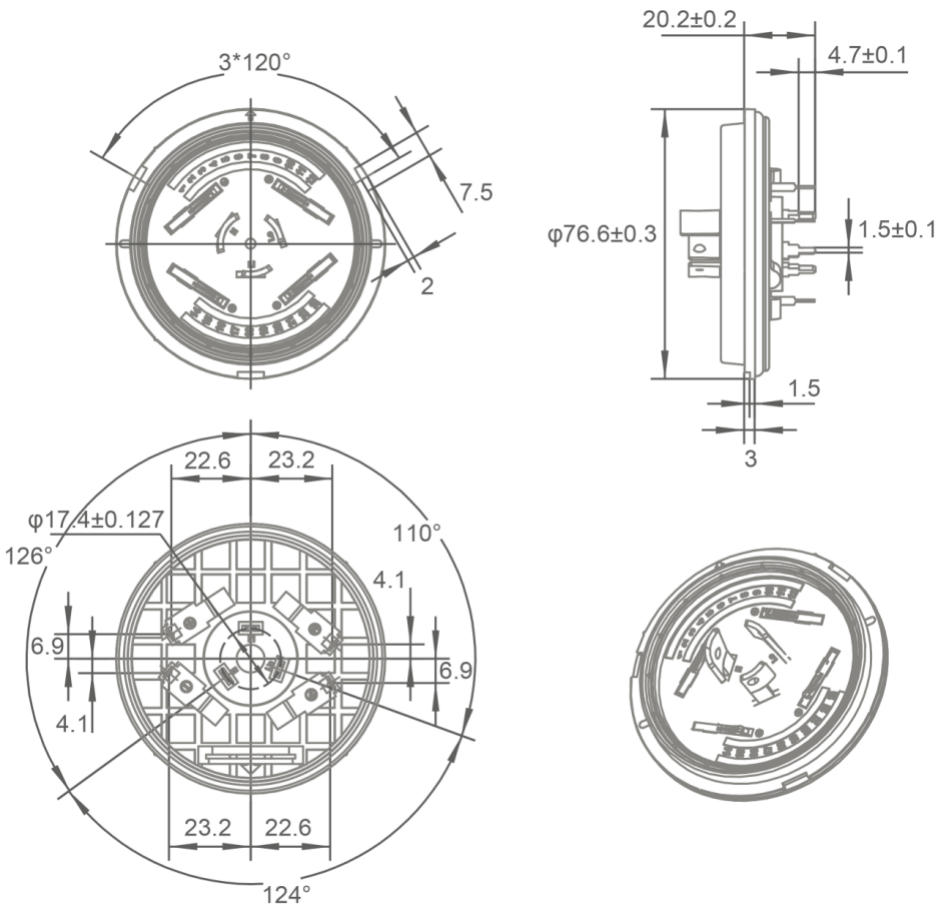

Technical drawing showing dimensions of the 241J 7P developer kit
Specifications
Model No.JL-241J
Rated VoltageMax 480Vac
Rated Frequency50/60Hz
Rated Loading15A
Signal Control0-30 VDC, 250 mA Max
IP RatingIP66 (Reachable after assembly)
Material QualityPBT
Ambient Temperature-40℃~ +70℃
Frequently Asked Questions
Q1: What is the IP66 7P 15A developer kit?
A: It is a professional developer kit designed for intelligent lighting control, featuring IP66 protection, 7-pin interface and 15A high current rating, suitable for outdoor development and testing.
Q2: What does the IP66 protection rating mean?
A: IP66 ensures dust-tight performance and strong water resistance against powerful water jets, making the kit stable and reliable in harsh outdoor environments.
Q3: What is the rated load of this developer kit?
A: It supports a rated load up to 15A, providing stable power supply for high-power intelligent lighting control modules and equipment.
Q4: What are the benefits of PBT material?
A: PBT material offers high heat resistance, excellent insulation, strong anti-aging and weather resistance, ensuring long service life in outdoor conditions.
Q5: What is the purpose of the 7P (7-pin) interface?
A: The 7-pin interface supports multi-channel signal and power transmission, widely used in advanced dimming and smart lighting control systems.
