Bulb Holder Control Passage Lighting And Doorway Lighting Adapter E26 E27 Adjustable Lux Threshold

Categories Light Controlled Switch
Brand Name: LongJoin
Model Number: JL-302A
Place of Origin: China
Price: negotiable
Packaging Details: Different packaging methods are adopted according to different modes of transport.
Payment Terms: Western Union,MoneyGram,T/T
Rated Voltage: 120VAC(302A) / 240VAC(302B)
Power Consumption: 1.5W Max.
Operate Levels: 10~20Lx Turn-On / 30~60Lx Turn-Off
Adapter: E26(302A) / E27(302B)
Certifications: RoHS,UL(302A),CE
Real-world Scenarios: Security & Perimeter Lighting
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Bulb Holder Control Passage Lighting And Doorway Lighting Adapter E26 E27 Adjustable Lux Threshold

Bulb Holder Control Passage Lighting And Doorway Lighting Adapter E26 E27 Adjustable Lux Threshold
JL-302A Bulb Holder Control for Passage and Doorway Lighting, Adapter E26/E27

Product Summary

The Bulb Holder control JL-302 series automatically controls passage lighting and doorway lighting based on ambient lighting levels. Designed with a thermal switch that provides a time delay over 30 seconds to prevent redundant switching from spotlights or lightning during nighttime. A temperature compensator system ensures consistent performance regardless of ambient temperature.

Product Dimensions

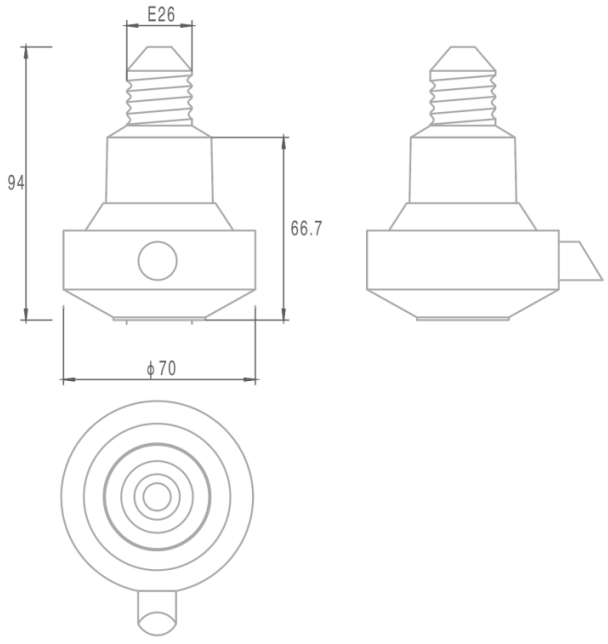

JL-302A Bulb Holder Control product dimensions and size diagram
Product Features
  • Time Delay: 20~120 seconds
  • Ambient Temperature Range: -40°C to +70°C
  • Convenient and easy to install
  • Works with any type of lamp
  • Improves security
  • Supports CFL and LED bulbs
Technical Specifications
Model No.JL-302AJL-302B
Rated Voltage120VAC240VAC
Rated Frequency60Hz50/60Hz
Rated Loading150W Tungsten
Power Consumption1.5W Max.
Operate Levels10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature-40℃ to +70℃
Related Humidity96%
UL File numberE346727--
AdapterE26E27
Failure ModeFail-On
Sunshade sleeve
CertificationsJL-302A certification marksJL-302B certification marks
Frequently Asked Questions
Q1: What is a bulb holder control adapter with adjustable lux threshold for passage and doorway lighting?
A: It is an E26/E27 compatible bulb holder adapter that provides automatic light control, supports adjustable lux threshold, and is specially designed for passage lighting and doorway lighting.
Q2: Is this bulb holder control adapter compatible with E26 and E27 sockets?
A: Yes, it is universally designed to fit both E26 and E27 standard bulb bases, making it widely usable in most passage and doorway lighting fixtures.
Q3: What is the benefit of the adjustable lux threshold feature?
A: Adjustable lux threshold allows users to set the exact ambient light level at which the light turns on or off, improving accuracy and adaptability to different installation environments.
Q4: How to install this E26/E27 bulb holder control adapter?
A: Installation is very simple. Just screw the adapter into the existing E26/E27 socket, then install the bulb into the adapter, no extra wiring or tools needed.
Q5: What scenarios is this bulb holder adapter mainly used for?
A: It is mainly used in passage lighting, corridor lighting, doorway lighting, porch lights and other indoor and outdoor areas that need automatic dusk-to-dawn control.
