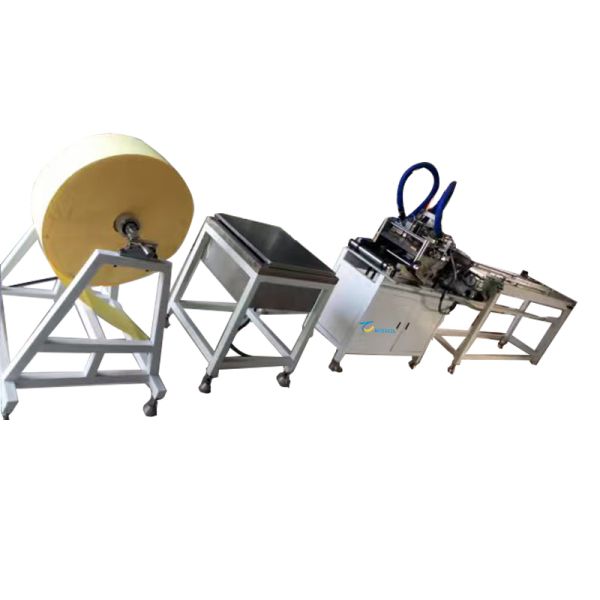

The Panel Servo Paper Pleating Production Line integrates automatic feeding, humidification, imprinting, servo gluing, folding, forming, and conveyor transport. It adopts an advanced spray system to replace traditional steam heating, ensuring stable humidity and excellent fold formation.
The dual-servo glue gun system supports multiple gluing methods such as right angle, oblique angle, and double-side oblique angle. With a touch-controlled PLC system, the equipment provides easy operation, precise folding height, uniform corrugation spacing, and high-speed production ranging from 5–50 m/min.
This production line offers outstanding performance for mass production of panel-type filter paper with superior pleating quality.
Main Features
Utilizes the most advanced spray system replacing traditional steam heating
Paper folding height: 20–60mm (requires roller replacement)
Corrugation flatness standard: exceptionally smooth fold height
Corrugation spacing: uniform and consistent spacing with imported roller machining technology
Two glue guns equipped with dual servo motors
PLC / touchscreen control supporting right angle, oblique angle, and double-side gluing
Guide rail adjustment system for easy operation
30-minute preheating time with timer switch
Full touchscreen control system, among China’s most advanced equipment
Item | Specification |
Paper Folding Height | 20–60 mm |
Maximum Filter Paper Width | 90–320 mm |
Production Speed | 5–50 m/min |
Conveyor Belt Speed | 0–8 m/min |
Hot Melt Glue Machine Capacity | 10L |
Machine Dimensions (L×W×H) | 6200mm × 16000mm × 1400mm |
Total Power Consumption | 9 kW |
Compressed Air Supply | 1 m³/min |
Main Motor Power | 1.1 kW |
Conveyor Motor Power | 0.55 kW |
Glue Injection Servo Motor Power | 2×400 kW |
Glue Machine Power | 6.4 kW |
Machine Weight | 600 kg |
Operating Air Pressure | 0.6 MPa |
Power Supply Voltage | 380V / 50Hz |
Applications
Automotive panel air filters
HVAC and household air purification filters
Industrial air filtration products
Pleated filter paper for environmental and dust-removal systems
Production of flat-panel, square, and rectangular filter media
|
