The YE133A01 E-PAPER display module boasts remarkable features. It comes with a 13.3 - inch screen and a display resolution of 960(H)×680(V) pixels, delivering clear and fine visuals. With an ultra - wide viewing angle, consistent display effects can be enjoyed from any direction. It operates in pure reflective mode and has ultra - low power consumption, making it highly energy - efficient. Also, it supports landscape and portrait modes, offering flexible display options. The module has an outline dimension of 286.32(H)×212.16(V)×1.15(D) mm (without mask) and a weight of 72±0.2 g, facilitating easy integration into various devices. Moreover, it features a hard - coat antiglare display surface for enhanced visual comfort and is equipped with an internal temperature sensor to adapt to different environmental conditions, ensuring stable performance in a commercial temperature range.
| Type | E-Paper | Screen refreshing method | Full Refresh |
|---|---|---|---|
| Resolution | 680*960 | Place Of Origin | Guangdong,China |
| Brand Name | YZY | Outline Dimensions | 286.32(H)×212.16 (V) ×1.15(D) mm |
| Supplier Type | All (IPS) | Active Area | 275.52(H)×195.16(V) mm |
| Interface | SPI | Driver IC | SSD1677 |
| MOQ | 5PCS | Operating Temp. | 0~40° |
| Connector Type | 24 pin | Storage Temp. | -25~60° |
| Colors | Black/White/Red | ||

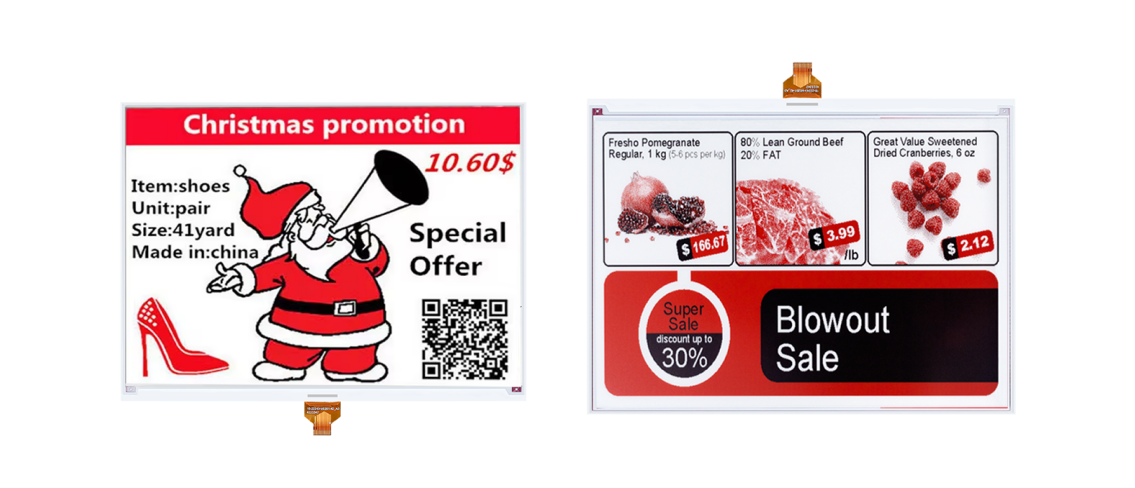

These E - PAPER display modules excel in showcasing promotional content. As seen in the images, they can vividly present Christmas sales campaigns for products like shoes, with clear pricing and product details. They're also perfect for highlighting grocery promotions, making items and discounts stand out. Their crisp display and versatile nature make them ideal for retail advertising scenarios, helping to attract customers' attention effectively.
E - PAPER display modules find extensive application across numerous scenarios. In retail stores, they are perfect for showcasing product promotions, like holiday sales on apparel, discounted electronics, or special offers on groceries. The clear display ensures customers can easily see prices, product details, and discount info. For logistics and warehousing, they serve as smart shelf labels, enabling real - time updates of product names, quantities, and storage locations, which streamlines inventory management. In smart homes, they can act as control panels or info displays, showing weather, schedules, or device statuses with low power consumption. Also, in educational settings, they work well as electronic nameplates in classrooms or digital notice boards in campuses, facilitating information dissemination in an eco - friendly way. With their excellent readability, low power usage, and versatile display capabilities, E - PAPER modules meet the diverse needs of various industries.
Adopts pure reflective display technology, no backlight module required. It relies on ambient light for imaging, with a visual effect close to traditional paper, ensuring no eye fatigue even after long-term viewing. The screen is equipped with a hard-coat anti-glare design to reduce glare under direct strong light, maintaining clear text and images even in outdoor sunny conditions. Combined with the ultra-wide viewing angle feature, there is no color or brightness deviation when viewed from the front or side, providing a consistent experience for multiple viewers. It is suitable for outdoor advertising, retail shelves, conference dashboards, e-readers and other scenarios.
Based on bistable display technology, power is only consumed when the screen is refreshed, and there is almost zero power consumption in static display mode. The current in deep sleep mode is ≤3μA, and the maximum full-screen refresh power consumption is 80mAs. When paired with a lithium battery, it can achieve battery life ranging from several months to several years depending on the refresh frequency. For example, smart price tags refreshed once a day can have a battery life of over 12 months, eliminating the need for frequent power supply and maintenance. It is suitable for outdoor signs, logistics labels, monitoring screens in remote areas and other scenarios.
The hard-coat screen has both anti-glare, scratch-resistant and fingerprint-resistant properties, preventing damage from slight collisions and friction in daily use. It operates at a temperature range of 0~40℃, and has a storage and transportation temperature range of -25~60℃, ensuring no black screen at low temperatures and no malfunction at high temperatures. It is suitable for outdoor environments, industrial workshops, hospitals and other settings. Without liquid crystals or organic light-emitting materials, there is no risk of "screen burn-in", and no afterimage occurs in static display. It has passed 240-hour high and low temperature tests and 50 temperature cycle tests, with a designed service life of 3 years, meeting the long-term use needs of industrial panels, hospital bedside information cards, elevator signs and other scenarios.
Supports SPI and I2C interfaces, enabling connection to microcontrollers, PLCs, embedded systems and other devices without complex driver development, reducing integration difficulty. It supports horizontal and vertical screen switching to adapt to different installation scenarios; also supports partial and full refresh modes. Partial refresh for smart price tags reduces power consumption, while full refresh for office dashboards ensures complete content presentation, balancing efficiency and power consumption. It is suitable for smart wearables, retail price tags, industrial monitoring, office dashboards and other scenarios.
PIN Definition
| PIN | Symbol | Description | |
|---|---|---|---|
| 1 | NC | No connection and do not connect with other NC pins | Keep Open |
| 2 | GDR | N-Channel MOSFET Gate Drive Control | |
| 3 | RESET | Current Sense Input for the Control Loop | |
| 4 | NC | No connection and do not connect with other NC pins e | Keep Open |
| 5 | VS12 | Positive Source driving voltage | |
| 6 | TSCL | I2C Interface to digital temperature sensor Clock pin | |
| 7 | TSDA | I2C Interface to digital temperature sensor Data pin | |
| 8 | BSI | Bistatic pin | Note 6-5 |
| 9 | BUSY | Busy state output pin | Note 6-4 |
| 10 | RIS # | Reset | Note 6-3 |
| 11 | D/C # | Data/Command control pin | Note 6-2 |
| 12 | CS # | Chip Select input pin | Note 6-1 |
| 13 | SCL | serial clock pin (SPI) | |
| 14 | SDA | serial data pin (SPI) | |
| 15 | VDDIO | Power for interface logic pins | |
| 16 | VCI | Power Supply pin for the chip | |
| 17 | VSS | Ground | |
| 18 | VDD | Core logic power pin | |
| 19 | VPP | Power Supply for OTP Voltage | |
| 20 | VSH | Positive Source driving voltage | |
| 21 | VGH | Power Supply pin for Positive Gate driving voltage and VSH | |
| 22 | VSL | Negative Source driving voltage | |
| 23 | VGL | Power Supply pin for Negative Gate driving voltage, VCOM and VSL | |
| 24 | VCOM | VCOM driving voltage |
The YE133A01 offers multiple customization options to meet diverse application needs:
|
