5 Inch RGB Interface LCD Driver Board With 5V DC Type C Input HDMI Signal Input

5-inch RGB Interface LCD Driver Board with 5V DC Type-C Input Hd-MI Signal Input

800*480 Resolution -20~70°C Operating RGB 40 PINHigh compatibility(Windows, Android, Raspberry Pi)

Product Features

The YB050WVR-P01 is a 5-inch LCD monitor driver board from Shenzhen Yingzhanying Technology Co.,Ltd, supporting 800×480 resolution. It features HDMI signal input (via CN1 interface) and multi-point capacitive touch—with J4 6Pin FPC touch interface and J5 Type-C USB for touch signal transmission. Powered by DC 5V (through J8608 Type-C connector) and equipped with a J8609 0.5mm 40Pin RGB display interface for stable image output, it has a standby power consumption of <0.2W, combining practicality and efficiency in a compact solution.

Brand Name	YZY Driver board	Place of Origin	Guangdong, China
Type	5-inch RGB Interface LCD Driver Board	Item No.	YB050WVR-P01
Interface	HDMI+RGB	Outline Dimensions	120.7*97 mm
Operating Temp.	-20 ~ +70 °C	Touch	Multi-point Capacitive Touch (J4 FPC-6Pin)
Storage Temp.	-40 ~ +85 °C	Expand	Button panel speaker
Highlight	Small RGB 40PIN Industrial Control Specification High Compatibility Driver Board

Technical Drawing

LCD Display RGB Interface PIN Definition

PIN	Signal	Description
1	VLED+	Power for LED backlight (Anode)
2	VLED-	Power for LED backlight (Cathode)
3	GND	Power Ground
4	VDD	Power for Panel
5	R0	Red data (LSB)
6	R1	Red data
7	R2	Red data
8	R3	Red data
9	R4	Red data
10	R5	Red data
11	R6	Red data
12	R7	Red data (MSB)
13	G0	Green data (LSB)
14	G1	Green data
15	G2	Green data
16	G3	Green data
17	G4	Green data
18	G5	Green data
19	G6	Green data
20	G7	Green data (MSB)
21	B0	Bule data (LSB)
22	B1	Bule data
23	B2	Bule data
24	B3	Bule data
25	B4	Bule data
26	B5	Bule data
27	B6	Bule data
28	B7	Bule data (MSB)
29	GND	Power Ground
30	DCLK	Red data
31	MODE	DE/SYNC mode select
32	HSYNC	HORIZONTAL SYNC
33	VSYNC	VERTICAL SYNC
34	DEN	DATA ENABLE
35	NC
36	GND	Power Ground
37	NC
38	NC
39	NC
40	NC

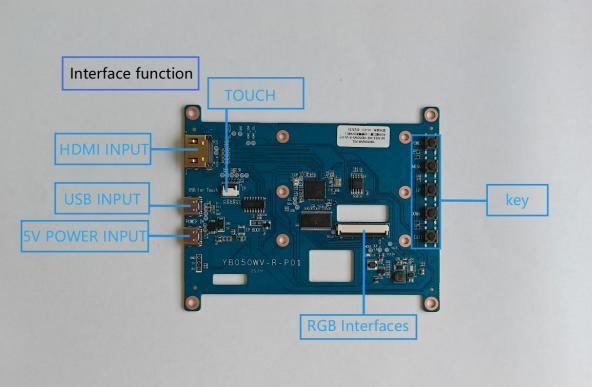

Product Picture

The YB050WVR-P01 from Shenzhen Yingzhanying Technology is a compact 5-inch LCD driver board supporting 800×480 resolution, featuring HDMI input, LVDS display output, multi-point capacitive touch, 5V power supply, audio output (headphone + dual speakers), and low standby power, ideal for efficient 5-inch LCD display applications.

Customization Options

The RGB/HDMI Driver Board offers multiple customization options to meet diverse application requirements:

Logo & Silk Printing: Custom branding and markings on the board.

Board Structure: Size, dimensions, and interface layout can be adjusted to fit your system.

Interface Definition & Quantity: Interfaces can be modified or added, such as including VGA or other connectors.

Resolution & Performance: Higher resolutions and frame rates can be achieved by selecting an appropriate driver IC.
