1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery

Categories Electric Pallet Stacker
Place of Origin: Jiangsu, China, CN;JIA
Brand Name: KAD
MOQ: 1
Price: $1,300-1,400
Fork Length: 1070mm/customized
Fork Width: 550/680mm/customized
Load Center: 500 mm
Load Weight: 1500KG
Battery Voltage: 24V
Battery Capacity: 80Ah
Load Height: 3000mm
Mast Type: 2 Stage/3 Stage
Drive Mode: Walkie Steer
Power Source: DC MOTOR
Min Lifting Height: 1580mm
Overall Dimensions: 1770(L)*850(w)*1580(h)
Weight: 500 kg
Driving Speed: 5.0/5.0 MM/S
Lifting Speed: 140/135 MM/S
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

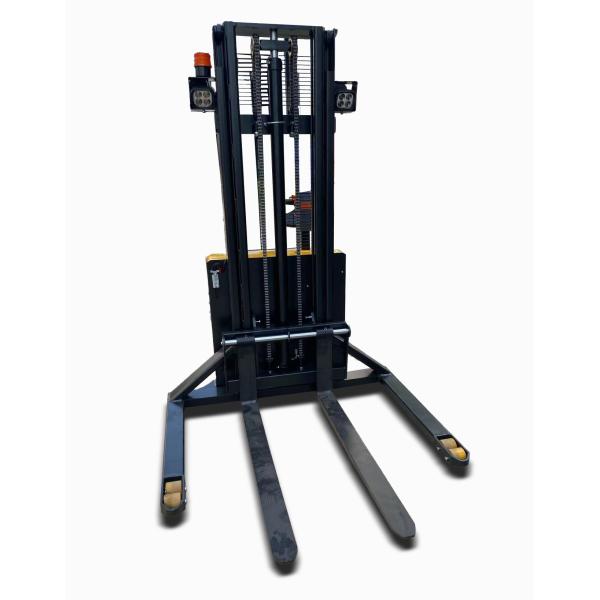

1.5 Ton Electric Pallet Stacker with 3000mm Lift Height 24V Battery

Product Description

Hot Sale 1.5 Ton 2m 3m Walkie electric stacker Electric Pallet Stacker Widen fixed leg


  • Enhanced Stability: Wider legs provide a larger support area, increasing the overall stability of the stacker. This reduces the risk of tipping or tilting, especially when handling heavy loads.

  • Improved Safety: Wider legs better distribute the weight of the stacker, minimizing the chances of lateral tilting and swaying, which enhances the safety of both operators and the surrounding environment.

  • Improved Operational Stability: Wider legs make the stacker more stable during operation, allowing it to handle higher loads and pressures, and improving precision and reliability in handling.

  • Adaptation to Uneven Surfaces: Wider legs help improve stability on uneven surfaces, reducing the impact of ground irregularities on the stacker's stability and ensuring smoother operations.

  • Reduced Impact on Goods: A wider base helps distribute the stacker's weight more evenly, reducing the pressure and potential damage to goods, particularly when handling delicate or fragile items.

  • Increased Handling Efficiency: Wider legs enable the stacker to operate more smoothly and steadily, reducing interruptions caused by instability and improving overall operational efficiency.

Main Features

1) Using Curtis controller,which can be serviced by any forklift service company around the world.

2) With its integrated charger it gives you the flexibility you need in a modern, urban supply chain.

3) Maintenance-free batteries,no need to add water.

4)Optional forks: forged fork, covered fork, fixed fork

Specification
MODEL
CDDW12 CDDW16
Features
Drive system
Battery
Features
Driving mode
Walkie
Load Capacity
Q
KG
1200/1600
Load Center

MM
500
Weight
Weight(With battery)
CDDW12
KG
470/485/505/520
CDDW16
495/510/532/553
Wheels
Material

PU
Size
Lifting Height
H3
MM
1600/2000/2500/3000
Lowest Mast
H1
MM
2080/1580/1830/2080
Max.Height when operating
H4
MM
2080/2730/3230/3730
Min.Height of Fork
H13
MM
≤90
Length
L
MM
1770
Width
B
MM
850
Size
Fork Length
L1
MM
1070
Wheelbase
Y
MM
1250
Fork Outside Width
B1
MM
680
Fork Inside Width
B2
MM
305
Min.Turning Radius
WA
MM
1390
parameter
Driving Speed(Empty/Full Load)

MM/S
5.0/5.0
Lifting Speed(Empty/Full Load)
MM/S
140/135
Descending Speed(Empty/Full Load)
MM/S
150/155
Max.Gradient(Empty/Full Load)
%
7/5
Brake
Electromagnetic
Motor
Driving Motor
KW
DC/0.75
Lifting Motor
KW
DC/2.2
Battery
Capacity
V/Ah
24*70/24*80Ah
Others
Noise level DIN 12053
DB
<70
Detailed Images

Main Parts

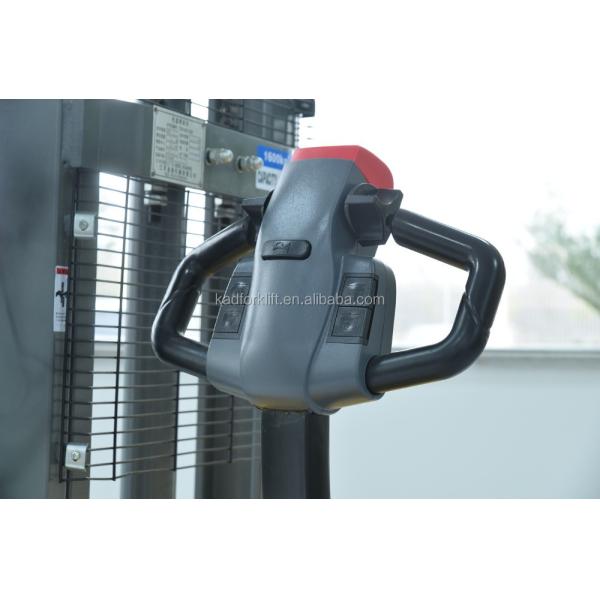

Name: Control Handle

Brand: KAD

Domestic famous control handle,functional buttons, can control UP/DOWN, FORWARD/BACKWARD sensitively. Using Curtis brand accelerator to ensure the safe operating.

Operation panel

Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.

Machine Parts

Strong cylinder and chain make fork run smoothly.

1-stage,2-stage,3-stage mast can be selected.

Main Features

Humanized design, operation can maintain a safe distance, will not be tired after long time work.
