20,000Lumen WUXGA Large Venue 3LCD Laser Projector for 3D mapping projection
Product Description
SMX MX-X20000U is our latest 3 LCD projector with laser light source in SMX’s
Large venue projector.
This model offers high brightness, high contrast and high color
reproduction with the new 3LCD and laser light optical engine.
Filter less by newly designed cooling system and sealed optical
engine provides silent operation, maintenance-free fixed
installation.
SMX MX-X20000U is a versatile installation projector with advance keystone
correction (Pin cushion/Barrel, 4-corner, 6-corner), full 360°
installation capability including portrait mode and a full suite of
optional lenses.
In addition, SMX MX-X20000U offers a brilliant projection image by the new 1.0” LCD panel and
high-efficiency laser light source.
Features
High Brightness, High Contrast
The high brightness of 20,000 Lumens and high contrast of
3,000,000:1 enable realistic image reproduction, even in bright
projection environment.
High Performance and Low Maintenance
Newly designed cooling system with sealed optical engine,
filter-less design, and improved air flow provides high performance
.Up to 30,000 hours of laser light source and filter-less design,
reducing maintenance time and total cost of ownership.
Versatile installation capability
*Pin cushion/Barrel Correction
*4 corner/6 corner Keystone Correction
*360°Free Orientation
Specifications
| SMX 20000 Lumen 3LCD Laser Projector | ||
| Model | MX-X20000U | |
| Brightness(Lumen) | 20000 | |
| Panel | Display Panel | 3x1.0" |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | WUXGA (1920 x 1200) | |
| Laser Lifetime | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
Projection Lens | Zoom/Focus | Motorized |
| Throw Ratio (16:10) | 1.24-2.01 @100inch | |
| F | 1.8-2.24 | |
| f | 27.7-44.3mm | |
| Zoom Ratio | 1.62 | |
| Screen size(Performance guarantee range) | 60-500 inch(80-500 inch) | |
| Lens Shift V | ±65% | |
| Lens Shift H | ±25% | |
| Contrast Ratio(Min) | 3,000,000:1 | |
| Aspect Ratio | Native:16:10 Compatible: 4:3/16:9/normal/16:6 | |

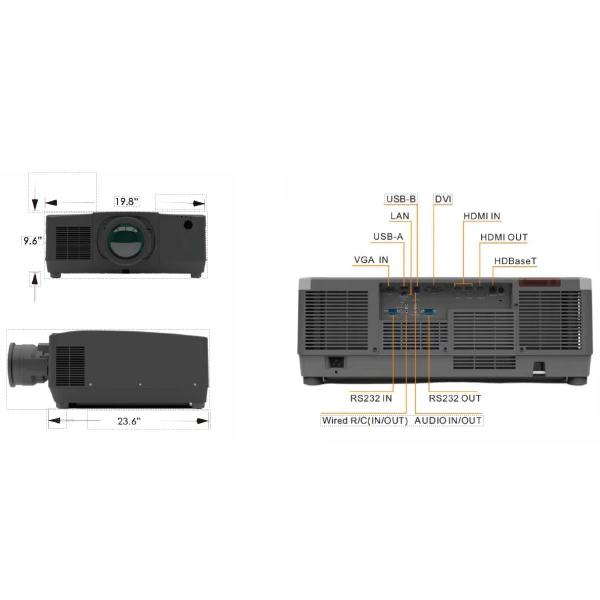

Input | VGA | *1 |
| HDMI 1.4(IN) | *2 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| DVI-D | *1 | |
| HD BaseT | *1 | |
| HD-SDI (3G-SDI) | Optional | |
| Audio in (mini jack,3.5mm) | *1 | |
| DMX512 | *1 | |
| Output | HDMI 1.4(OUT) | *1 |
Control | Audio out (mini-jack,3.5mm) | *1 |
| RS232C (Input) | *1 | |
| RS232C (Output) | *1 | |
| Wired Remote(IN) | *1 | |
| Wired Remote(OUT) | *1 | |
| Keystone | Keystone Correction | V: ±30° H:±30° Pincushion/Barrel Correction 6 Corner Geometry correction Grid ImageTune correction |
| Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi | |
LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
Other | 360° projection | Yes |
| Edge Blending | Yes | |
| Adjustable brightness | Yes | |
| Lens position memory, lens locking function | Yes | |
| Closed dustproof design, free of maintenance and replacement of filter screen | Yes | |
| DMX512 lighting protocol | Yes | |
Dimension&Weight | MAX Dimensions (WxHxD mm) | 599X240.2X493.8mm (not including lens) |
| Net. Weight (KG) | 28.9Kg (not including lens) | |
| Packaging Box Dimensions (WxHxD mm) | 745**370*630 (not including len) | |
| Gross. Weight (KG) | 34Kg (not including lens) | |
| Package | Carton, Flight case optional | |
| Standard Accessaries | Power cord (3m, Black), Remote control | |
Recommend Applications
-Auditoriums
-Large Conference rooms
-Exhibitions/Events
-Museums/Galleries
-Theatres/Halls
-Houses of Worship
-Signages
