| Categories | Bently Nevada Proximity Probe |
|---|---|
| Brand Name: | p&f |
| Model Number: | KCD2-STC-Ex1.2O |
| Certification: | ATEX |
| Place of Origin: | USA |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100pcs per month |
| Delivery Time: | Negotiable |
| Packaging Details: | carton |
| Connection Type: | Screw-clamp terminals |
| Housing Material: | Polyamide (PA) |
| Mounting: | Standard 35 mm DIN rail |
| Width: | 17.5 mm |
| Operating Humidity: | 20% - 96% RH (non-condensing) |
| Protection Rating: | IP20 (for enclosure) |
| Company Info. |
| Achievers Automation Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

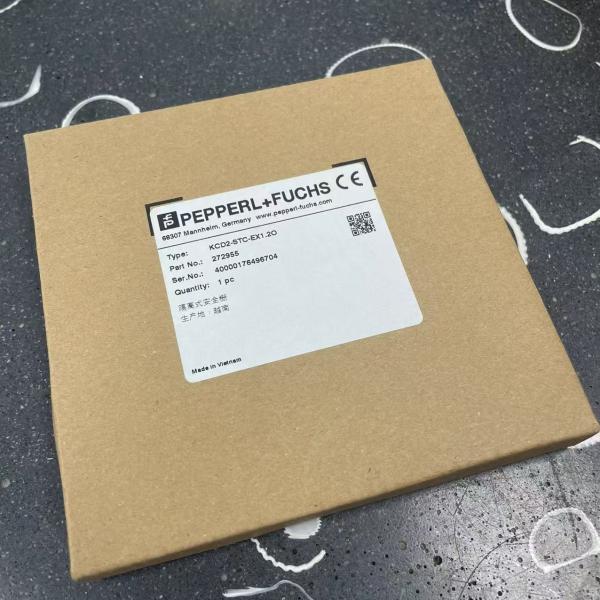

The Pepperl+Fuchs KCD2-STC-Ex1.2O is a single-channel isolated barrier designed to provide power and ensure intrinsic safety for 2-wire SMART transmitters operating in hazardous areas. It transmits the analog input signal as two isolated output signals to the control system in the safe area. A key feature is its support for bidirectional HART communication, allowing for data exchange with SMART field devices. The unit also includes a convenient test socket for connecting a HART communicator without interrupting the loop.
| Property | Value |
| Product Type | Single-Channel Isolated Barrier |
| Primary Function | Interface for 2-Wire SMART Transmitters |
| Input Characteristics | Accepts signals from intrinsically safe field devices |
| Output Signals | Two independent, isolated outputs (e.g., 0/4-20 mA, 0/1-5 V) |
| HART Support | Full bidirectional HART communication |
| Test Socket | Integrated for HART communicator connection |
| Property | Value |
| Supply Voltage | 20.4 - 30 V DC (typically 24 V DC) |
| Output Current 1 | 0/4 - 20 mA (user-configurable) |
| Output Current 2 | 0/4 - 20 mA (user-configurable) |
| Output Voltage 1 & 2 | 0/1 - 5 V DC (user-configurable) |
| Permitted Loop Resistance | ≤ 550 Ω (at 20 mA) |
| Intrinsic Safety Approval | ATEX, IECEx, cULus |
| Property | Value |
| Protection Type | [Ex ia] IIC / [Ex ia] IIB (depending on gas group) |
| Safety Integrity Level (SIL) | SIL 2 acc. to IEC/EN 61508 |
| Hazardous Area Approval | ATEX, IECEx, cULus (for Class I, Div. 1) |
| Galvanic Isolation | Yes, between input and output circuits |
| Temperature Range | -20 °C to +60 °C (operating) |
| Fieldbus Support | HART (5, 6, 7, 8) |
