| Categories | Hydraulic Steering Unit |
|---|---|
| Brand Name: | HANJIU |
| Model Number: | 101S-5T-80 |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 50 Sets |
| Price: | Negotiable |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000000 Sets Per Year |
| Delivery Time: | 10-15 work days |
| Packaging Details: | Carton Packing and finally with a Tray, or Wooden Box |
| Product Name: | Hydrostatic unit,steering valve |
| Oil port: | M20 |
| Quality: | oem quality |
| Material: | cast iron |
| Displacement: | 80cc |
| Applications: | tractors,loaders |
| Company Info. |
| Shijiazhuang Hanjiu Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

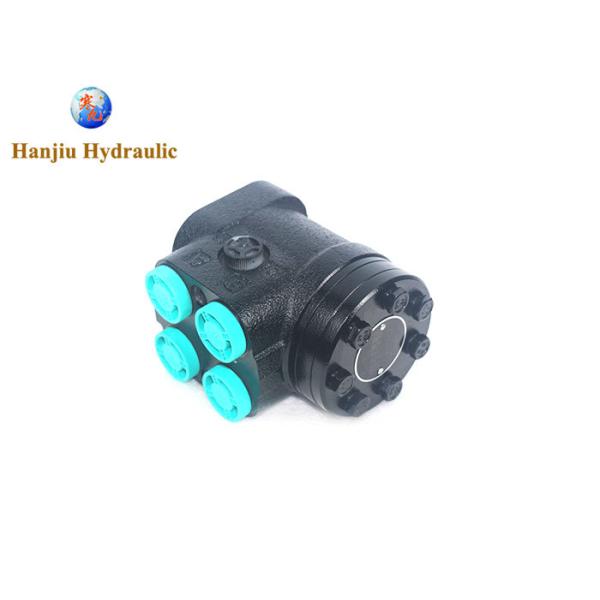

Cargo and pushback tractors hydraulic steering units, OSPC80LS orbitrols with M20 ports
Hanjiu hydraulic supply OSPB ON, CN ,LS series hydraulic steering units,
used on wheel loaders, backhoe loaders, pushback tractors, forklifts....
same quality, high performance
specification:
| Parameters | Series 101-*-***-**-* | ||||||||||
| Function code | 1,2,4 | 1,4 | |||||||||
| Displacement (mL/r) | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | 400 |
| Rated Flow (L/min) | 5 | 6 | 8 | 10 | 12.5 | 16 | 20 | 25 | 28 | 32 | 40 |
| Max.input pressure(Mpa) | 17.5 | ||||||||||
| Relief Valve Pressure Settings ( MPa) | 06,07,08,10,12,14,15,16,17.5 | ||||||||||
| Shock Valve Pressure Settings ( MPa) | 12,13,14,16,18,20,21,22,23.5 | ||||||||||
| Max.cont.back pressure | 2.5 | ||||||||||
| Weight(kg) | 5.75 | 5.81 | 5.89 | 5.96 | 6.1 | 6.3 | 6.5 | 6.73 | 6.91 | 7.1 | 7.5 |
| Dimension L (mm) | 130 | 132 | 134 | 137 | 140 | 145 | 150 | 156 | 161 | 166 | 176 |
| displacement | 80cc |
| type | 101s series |
| control type | load sensing |
| max pressure | 17.5mpa |
| max back pressure | 2.5mpa |
| port threads | M20*1.5 o-ring |
| LS ports | M12*1.5o-ring |



Hanjiu technology produce the a series hydraulic steering units/hydraulic orbitrols,
with the same specification as OSPM, OSPB, OSPC, HKU, HKUS,XCEL-45
widely used on tractors, backhoe loaders, wheelloaders...
