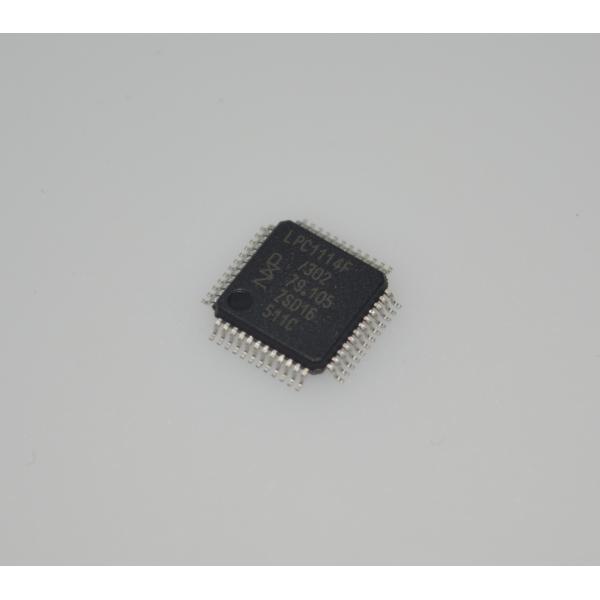

LPC1114FBD48/302 ARM Cortex-M0 32-bit MCU 50MHz CPU 32KB Flash 8KB SRAM 12-bit ADC 42 GPIOs UART/SPI/I2C Low Power < 1μA Deep Sleep

LPC1114FBD48/302 ARM Cortex-M0 32-bit MCU 50MHz CPU 32KB Flash 8KB SRAM 12-bit ADC 42 GPIOs UART/SPI/I2C Low Power < 1μA Deep Sleep

Features

 System:

ARM Cortex-M0 processor, running at frequencies of up to 50 MHz.

ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC).

Serial Wire Debug.

System tick timer.

 Memory:

32 kB on-chip flash programming memory.

8 kB SRAM.

In-Application Programming (IAP) and In-System Programming (ISP) support via on-chip bootloader software.

 Digital peripherals:

11 General Purpose I/O (GPIO) pins with configurable pull-up/pull-down resistors and programmable open-drain mode.

description

The LPC1102/1104 are an ARM Cortex-M0 based, low-cost 32-bit MCU, designed for 8/16-bit microcontroller applications, offering performance, low power, simple instruction set and memory addressing together with reduced code size compared to existing 8/16-bit architectures.

The LPC1102/1104 operate at CPU frequencies of up to 50 MHz.

The peripheral complement of the LPC1102/1104 includes 32 kB of flash memory, 8 kB of data memory, one RS-485/EIA-485 UART, one SPI interface with SSP features, four general purpose counter/timers, a 10-bit ADC, and 11 general purpose I/O pins.

Remark: The LPC1104 has a revised pinout and contains several features not found in the LPC1102:

• Two extra GPIO pins (PIO0_1 and PIO0_6).

• Extra match output (CT32B0_MAT2).

• CLKOUT feature.

• Easier re-entry to ISP via PIO0_1.

• SSP0_CLK available on two pins (A1 and A2) to support debugging of SSP communication.

• Better positioning of the XTALIN pin for easier PCB layout.

Applications

 Mobile devices

 Consumer peripherals

 Lighting

 8-/16-bit applications

 Portable devices
