Used TLJ-1000 Soil Shoulder Paver with Deutz Engine 3500kg

Used TLJ-1000 Soil Shoulder Paver with Deutz Engine 3500kg

Used TLJ-1000 Soil Shoulder Paver with Deutz Engine 3500kg
Used TLJ-1000 Soil Shoulder Paver with Deutz Engine 3500kg
Categories Slipform Paver
Place of Origin: Jiangsu, China
Brand Name: Siming
MOQ: 1
Price: $55,700
Weight: 3500 kg
Engine power: 120-2300 kw/r/min
Engine model: Modified engine model
Walking speed: 2 km/h
Paving speed: 10m/min
Load capacity: 12t
Inner width: 3050mm
Feeding speed: 20m/min
Compactors quantity: 2 units
Width adjustment: 70~1000mm
Maximum thickness: 0~500mm
Width adjustment amount: 300mm
Engine brand: Deutz diesel engine
Core components: Engine, hydraulic pump, vibrating spear
Material conveying: Horizontal feeding system
Certification: ISO9001/CE
Contact Now
Company Info.
Jiangsu Siming Engineering Machinery Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

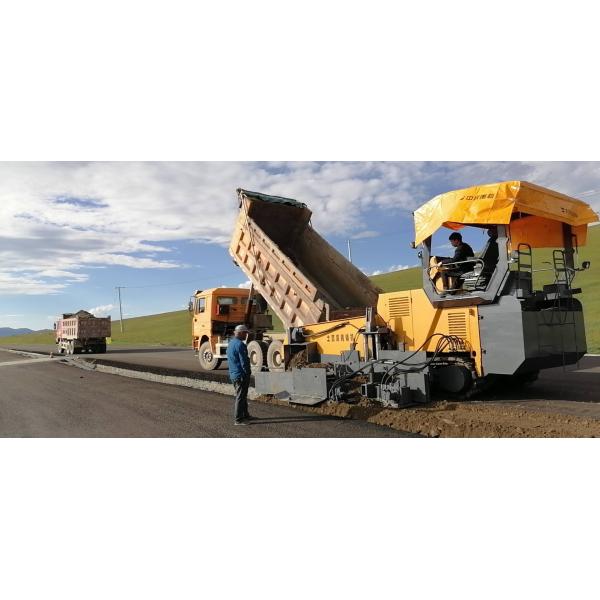

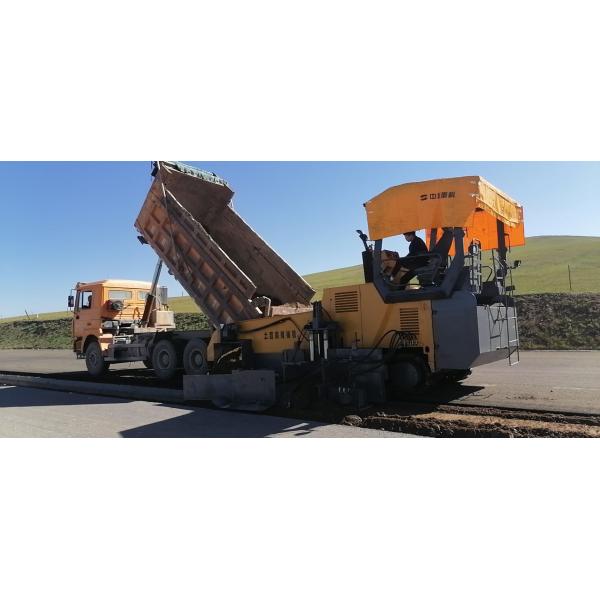

Used TLJ-1000 Soil Shoulder Paver with Deutz Engine 3500kg


Application conditions:


The TLJ-1000 soil shoulder paver is a specialized road shoulder soil paver that has been upgraded and renovated based on the asphalt concrete paver. It inherits the constant speed and stable walking drive system of the paver, and adopts a unique lateral feeding mode to evenly input the shoulder soil into the mold material groove. The mold can adjust the thickness and width continuously according to the process requirements of the shoulder soil, and then effectively compact the shoulder soil with front and rear compactors to achieve a density of over 90%. The use of this equipment has improved the construction process of shoulder soil, greatly enhancing the quality and efficiency of shoulder soil construction, reducing labor intensity, and especially significantly reducing construction costs. Received high praise from a large number of construction units.
technical parameters
Engine brand
Deutz diesel engine
Engine model
Modified engine model
Engine power
120-2300 kw/r/min
Walking system
Maximum paving speed
10m/min
Maximum walking speed
2km/h
Material conveying system
Load capacity of hopper
12t
Inner width
3050mm
Maximum feeding speed
20m/min
Shoulder soil mold device
Quantity of compactors
2 units
Width hydraulic adjustable
70~1000mm
Maximum thickness
1st gear 0~380 /2nd gear 220~500mm
Width hydraulic adjustment amount
300mm
Hydraulic system
 * The hydraulic components are sourced from internationally renowned brands.
* Both solenoid valves and oil cylinders are well-known brands with reliable quality and stable performance.
· Hydraulic power output, can quickly connect hydraulic picks and other auxiliary equipment.


Control system:
 * A brand new electrical circuit system ensures high reliability and safety.
* Adopting an intelligent control system, the LCD screen can accurately display the operating parameters of each system and has a fault diagnosis display function.

Material conveying system:
 * The hydraulic opening of the silo door is convenient and fast to operate.
* Adopting a horizontal feeding system, the discharge is continuous, fast, and without jamming, resulting in higher efficiency.
* Adopting a high torque device, the power is strong, and the feeding speed can be adjusted up to a maximum of 20 meters per minute.




Mold forming system:
* Using 2 compacting vibrators, flexible and adjustable, with a wide range of adjustments.
* The thickness and width of the mold can be infinitely adjusted within a certain range by the hydraulic cylinder, which is easy
to use and adaptable to various working conditions.
* Quick hydraulic interface, easy to disassemble and connect without oil leakage.
1.Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2.Q: What certificates are available in Machinery?
A: For the certificate, we have ISO certificate,

3.Q: What about the delivery time?
A: 7-30 days after receiving the deposit.

4.Q: What about the warranty time?
A:: 12 months after shipment .

5. Q: What about the Minimum Order Quantity?
A:: The MOQ is 1 pcs
