| Model Number: | FPD442M FPD442Z |
| Brand Name: | SUMA |
| Place of Origin: | Jiangsu, China |
| MOQ: | 10 |
| Price: | $62-86 |
| Precision Rating: | P6 |
| Seals Type: | Sealed |
| Type: | sprag |
| Inner diameter: | 30mm |
| Outer diameter: | 46mm |
| Thickness: | 34mm |
| Torque capacity: | 208Nm |
| Material: | GCr15 |
| Weight: | 0.18kg |
| Operating temperature: | max. 100° C |
| Lubrication: | Operative lifetime oil lubrication |
| Installation tolerances: | Shaft h5; hub H6 |
| Max speed: | 1,500 rpm |
| Dynamic load: | 10,247 N |
| Static load: | 10,708 N |
| Company Info. |
| Changzhou Tianniu Transmission Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

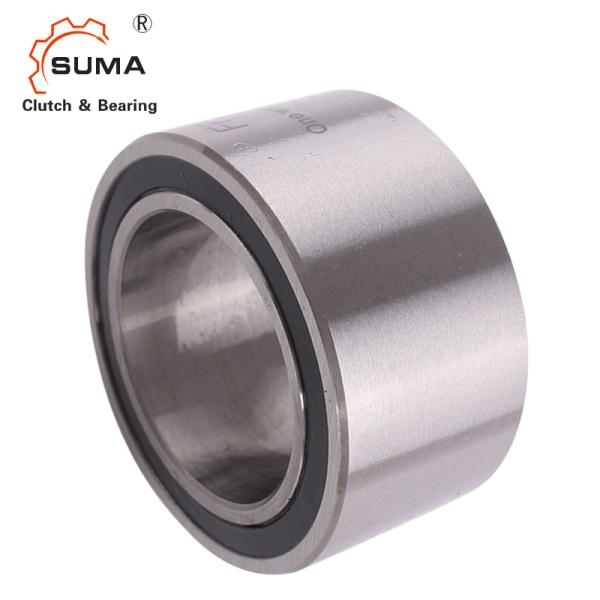

Complete Freewheel Clutch Unit One Way Bearing Factory FPD442M FPD442Z
Features of FPD Complete Freewheel Clutch Unit
Characteristics
Width:34 mm
Operating temperature:max. 100° C
Lubrication
Operative lifetime oil lubrication
Installation
Installation tolerances
Shaft h5; hub H6
Catalogue of FPD Complete Freewheel Clutch Unit for your choice
| Model | d | D | W | Tnom | nmax | Cdyn. | Cstat. | Weight | Item no. |
| [mm] | [mm] | [mm] | [Nm] | [rpm] | [N] | [N] | [kg] | ||
| FPD 427 M | 15 | 31 | 34 | 94 | 2,000 | 7,679 | 6,397 | 0.09 | 306516 |
| FPD 427 Z | 15 | 31 | 34 | 84 | 2,000 | 7,679 | 6,397 | 0.09 | 306517 |
| FPD 432 M | 20 | 36 | 34 | 133 | 1,800 | 8,104 | 7,241 | 0.12 | 306518 |
| FPD 432 Z | 20 | 36 | 34 | 121 | 1,800 | 8,104 | 7,241 | 0.12 | 306519 |
| FPD 437 M | 25 | 41 | 34 | 176 | 1,700 | 9,201 | 8,142 | 0.15 | 306520 |
| FPD 437 Z | 25 | 41 | 34 | 160 | 1,700 | 9,201 | 8,142 | 0.15 | 306521 |
| FPD 442 M | 30 | 46 | 34 | 223 | 1,500 | 10,247 | 10,708 | 0.18 | 300696 |
| FPD 442 Z | 30 | 46 | 34 | 208 | 1,500 | 10,247 | 10,708 | 0.18 | 300697 |
| FPD 448 M | 35 | 53 | 34 | 286 | 1,300 | 11,642 | 13,440 | 0.23 | 306524 |
| FPD 448 Z | 35 | 53 | 34 | 262 | 1,300 | 11,642 | 13,440 | 0.23 | 306525 |
| FPD 453 M | 40 | 58 | 34 | 343 | 1,200 | 11,417 | 13,577 | 0.26 | 300702 |
| FPD 453 Z | 40 | 58 | 34 | 314 | 1,200 | 11,417 | 13,577 | 0.26 | 300700 |
| FPD 463 M | 50 | 68 | 34 | 461 | 1,100 | 13,070 | 17,063 | 0.34 | 306534 |
| FPD 463 Z | 50 | 68 | 34 | 428 | 1,100 | 13,070 | 17,063 | 0.34 | 306535 |
| FPD 473 M | 60 | 78 | 34 | 588 | 1000 | 14128 | 19896 | 0.41 | 306536 |
| FPD 473 Z | 60 | 78 | 34 | 543 | 1000 | 14128 | 19896 | 0.41 | 306537 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Q: How do you pack the goods?
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
|
