| Categories | 2MP Camera Module |
|---|---|
| Brand Name: | Lntech |
| Model Number: | SNQ-3581F-HDMI |
| MOQ: | 1 |
| Payment Terms: | T/T |
| Supply Ability: | 2500 |
| Delivery Time: | 7-15 working days |
| Packaging Details: | Carton |
| Key Interfaces: | HDMI 1.4a + 3G-SDI (Simultaneous Output) |
| Processing & Sensor: | EN781F 4K DSP + 1/1.8" Sony IMX385 |
| Resolution & Speed: | 1080P @ 60fps, 720P @ 60fps |
| Low Light Performance: | 0.00013 Lux (Color), Starlight-Level |
| Design: | 32mm Circle, Three-Layer Stack |
| Best For: | Broadcast Assist, Medical, Scientific, Premium Security |
| Company Info. |
| Shenzhen Shinuoqi Electronical Science and Technology Co. td. |
| Verified Supplier |
| View Contact Details |
| Product List |
The Ultimate Interface Flexibility for Studio, Broadcast, and High-End Monitoring Applications
Meet the Lntech SNQ-3581F-HDMI, a premium camera module engineered for professionals who require both ultimate image quality and versatile video outputs. Building on the powerful EN781F 4K-grade processing platform and the exceptional 1/1.8-inch Sony IMX385 STARVIS™ sensor, this module adds a critical feature: simultaneous HDMI and 3G-SDI outputs. This allows direct connection to modern monitors, recorders, and broadcast equipment without any converters. Encased in a robust 32mm diameter three-layer stacked design for superior signal integrity, it delivers stunning 1080p Full HD video at up to 60fps. Whether you're building a studio camera, a medical imaging device, or a high-end security system, the SNQ-3581F-HDMI provides the performance and connectivity you demand.
| Feature | SNQ-3581F-HDMI Specification | Ideal Application |
|---|---|---|
| Key Interfaces | HDMI 1.4a + 3G-SDI (Simultaneous Output) | Direct to Monitor/Recorder, Broadcast, Studio |
| Processing & Sensor | EN781F 4K DSP + 1/1.8" Sony IMX385 | Premium Image Quality, Superior Detail & Color |
| Resolution & Speed | 1080P @ 60fps, 720P @ 60fps | High-Speed Capture, Fluid Motion |
| Low Light Performance | 0.00013 Lux (Color), Starlight-Level | 24/7 Professional Surveillance, Low-Light Imaging |
| Design | 32mm Circle, Three-Layer Stack | Superior Noise Isolation, Compact Design |
| Best For | Broadcast Assist, Medical, Scientific, Premium Security | Applications needing the best quality and direct output options |
This module eliminates the need for external converters. Get both popular professional outputs directly:
HDMI Output: Perfect for direct connection to consumer and professional monitors, televisions, and HDMI recorders. Provides high-quality digital video and audio in a single cable.
3G-SDI Output: Ideal for professional broadcast and security environments. Supports long-distance transmission over coaxial cable, is rugged, and features locking connectors.
The EN781F DSP is designed for 4K resolution. Using this power for 1080P video means every frame is processed with immense headroom, resulting in:
Exceptional Image Purity: Advanced noise reduction and detail enhancement algorithms run flawlessly.
Accurate Colors: Superior color processing ensures true-to-life reproduction.
Crisp Detail: Enhanced sharpness without introducing artifacts.
The 1/1.8-inch Sony IMX385 sensor captures massive amounts of light. Its large 3.75µm pixels work with the powerful DSP to achieve incredible starlight-level low-light performance (0.00013 Lux), ensuring clear images in near-total darkness.

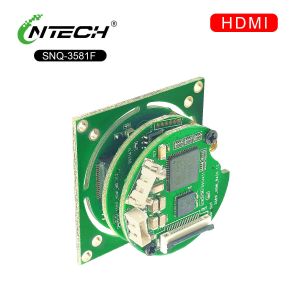

The 32mm three-layer stacked circular PCB is engineered for performance. This architecture separates critical components (sensor, processor, interfaces), minimizing electronic interference and ensuring the cleanest possible signal path from the sensor to your output device.
| Parameter | Specification |
|---|---|
| Model | SNQ-3581F-HDMI |
| Processing Platform | Advanced EN781F DSP (4K UHD Capable) |
| Image Sensor | 1/1.8" Sony IMX385 STARVIS CMOS |
| PCB Design & Size | Three-Layer Stacked Circular Board, Ø 32mm |
| Video Output | Simultaneous: HDMI 1.4a + 3G-SDI |
| Output Resolution | 1080p60/50/30/25, 1080i60/50, 720p60/50/30/25 |
| Lens Mount | M12 / C-CS (Optional) |
| Min. Illumination | Color: 0.00013 Lux, B/W: 0.0001 Lux |
| Wide Dynamic Range | Yes (ACE Contrast Enhancement) |
| Defog (DEFOG) | Yes |
| Digital Noise Reduction | 3D-DNR (Off / Low / Medium / High) |
| Day/Night | Auto (ICR), Color, B/W, External Trigger |
| Operating Voltage | DC 12V (±10%) ~140mA |
| Operating Temperature | -40°C ~ +80°C (Wide Temperature Range) |
Package Includes: 1x SNQ-3581F-HDMI Camera Module, 1x Cable Set.
Order the professional's choice for quality and connectivity. Get the SNQ-3581F-HDMI today!
|
