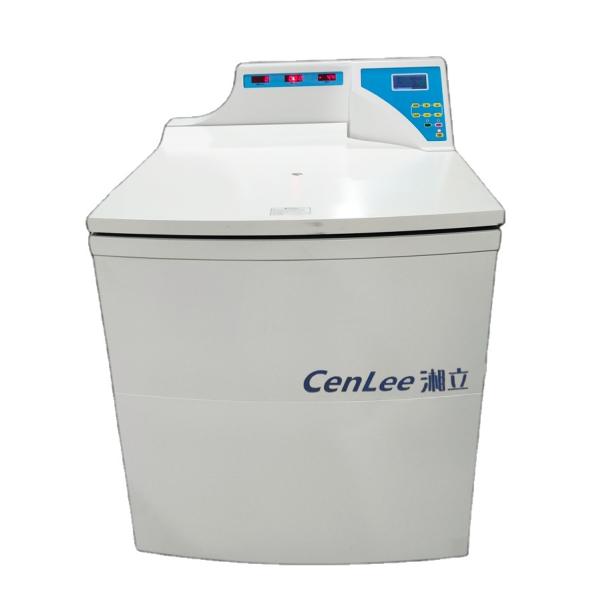

Floor Standing Refrigerated Centrifuge with -20°C to +40°C Cooling Low Noise ≤65dB and Stainless Steel Panel for Blood Bank Applications

Product Description

1. Floor Standing refrigerated Centrifuge(-20°C to +40°C)
The Centrifuge offers outstanding performance in fast, efficient centrifuging of blood bags and large sample volumes.

2. It accommodates a maximum capacity of 6 x 2400 ml (or 12x400ml blood bag system). When in use, the cooled large-volume centrifuge rests on high-quality vibration dampers.

3. Optimal running performance guarantees best separation results. The low noise level makes agreeable working conditions.

4. The extensive range of carriers and adapters for blood collection tubes, standard tubes, bottles and various blood bag systems can be centrifuged in one rotor - changing rotors is not necessary

5. The stainless steel panel control box can be made according to customer requirements to meet the GMP requirements of the pharmaceutical industry.

6. Widely used in radioimmunoassay, biochemistry, pharmaceutical and other industries, especially the separation and purification of blood products.

· Available with internal or external cooling for GMP and lean-room environments

· Non-wind shielded rotor for best sample temperature control

· 6 placed x 1000ml/2400ml

· LED/LCD Control panel for easy operation

· One (1) year warranty

Technical parameter

Model	CFL8R	ACC/DEC	1~10 level
Maximum speed	8000r/min	Timing range	1 min~99h59S
Maximum RCF	14336×g	Power	6.6KW
Maximum capacity	6×2400ml	Power supply	AC 220V 50Hz 30A
Speed Accuracy	±20r/min	Noise	≤65dB(A)
Temperature range	-20℃~+40℃	Dimensions	960×860×1200mm (L×W×H)
Temperature accuracy	±1℃	Gross weight	500kg

CFL8R rotor

Rotor type	No.	Capacity	Max Speed(r/min)	Max RCF(×g)
Main machine	CFL8R		8000	14336
Angle rotor	NO.1	6×1000ml	8000	14336
Swing out rotor	NO.2	6×2400ml	4600	7060
Swing out rotor	NO.3	6×2×1000ml	4200	5900
