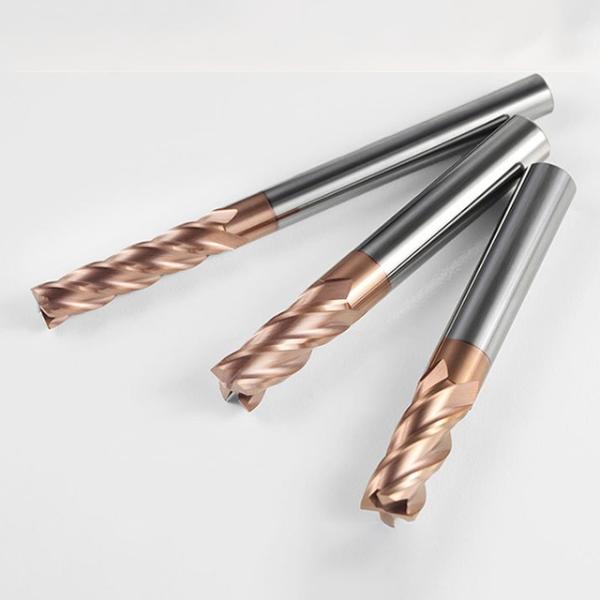

4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications

Categories Tungsten Carbide End Mill
Model Number: 4 FLUTES
Brand Name: KEDEL
Place of Origin: Sichuan, China
MOQ: 10
Price: $1.70-3
Flute count: 4
Material: Tungsten Carbide
Grain size: 0.6um
Shape: Flat
Hardness: 55HRC
Helix angle: 35 Degree
Coating types: Tin, AlTin, Tia in, Ticn
Cutting edge: 55-Degree Flat
Cutting diameter: 1.1-11.5mm
Shank diameter: 4-12mm
Overall length: 50-75mm
Flute type: Chip Flute
Color: Slivery
Suitable materials: CHISEL TOOL STEEL, ORDINARY STEEL PARTS, COPPER ALLOY, CAST IRON
Machine compatibility: CNC-Production-Center, Engraving-Machine, CNC-Milling-Machine
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

4-Flute Tungsten Carbide End Mill with 55-Degree Flat Cutting Edge and 35-Degree Helix Angle for CNC Applications

parameter
value
Flutes
4
Chip Flute
4
Coating
/
Shape
Flat
Angle
35°
HRC
55°

The 55-degree tungsten steel flat end mill and carbide

This milling cutter employs tungsten steel (carbide) as its primary material. Tungsten steel is characterized by its high
hardness, high wear resistance, and high red hardness, enabling the cutter to maintain a long service life during high-speed and
heavy-duty cutting operations.

Four-flute design

The four-flute design means that the cutter can more evenly distribute the cutting force during the cutting process, reducing
vibration, enhancing machining accuracy and surface quality. Additionally, the four-flute design also contributes to improved
cutting efficiency.

Coated end mill

This end mill employs coating technology. The coating further enhances the hardness and wear resistance of the cutter, reducing
friction and heat generation during cutting, thereby extending the tool's service life. Additionally, the coating also improves
the cutter's corrosion resistance and oxidation resistance.
Number of Flutes
Cutting Diameter
Shank Diameter
Overall Length



















Four blade
d
D
L
1.1
4
50
1.2
4
50
1.3
4
50
1.4
4
50
1.5
4
50
1.6
4
50
1.7
4
50
1.8
4
50
1.9
4
50
2.1
4
50
2.2
4
50
2.3
4
50
2.4
4
50
2.6
4
50
2.7
4
50
2.8
4
50
2.9
4
50

3.1
4
50
3.2
4
50
3.3
4
50
3.4
4
50
3.6
4
50
3.7
4
50
3.8
4
50
3.9
4
50
4.5
6
50
5.5
6
50
6.5
8
60
7.5
8
60
8.5
10
75
9.5
10
75
10.5
12
75
11.5
12
75


NOTE:Customization can be done through drawings
