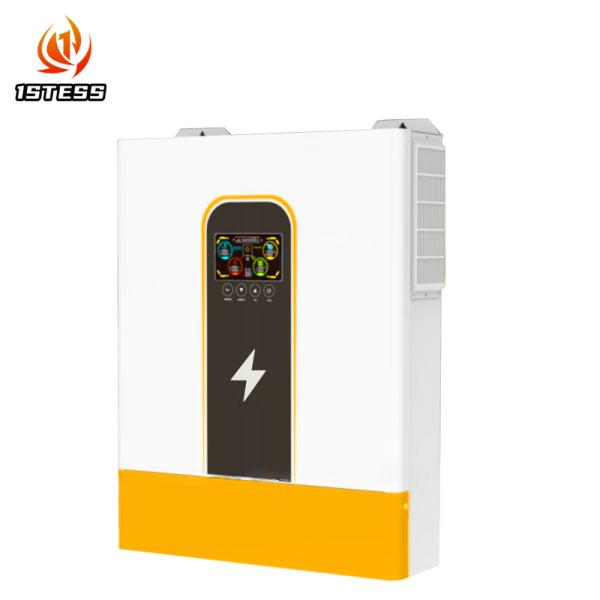

48V 11kw Single Phase Off Grid Pure Sine Wave Hybrid Solar Inverter MPPT With Lithium Battery Activation

Categories	Off Grid Hybrid Solar Inverter
Brand Name:	1stess
Model Number:	M11000T-48PL
Certification:	CE, IEC
Place of Origin:	China
MOQ:	1 piece
Price:	To be negotiated
Payment Terms:	L/C,T/T
Supply Ability:	2000 pieces per month
Delivery Time:	30 days
Packaging Details:	carton box
Charging Mode:	MPPT
Operating Temperature:	-10°C To 50°C
Inverter Type:	Off Grid inverter
Frequency:	50Hz/60Hz
Output Voltage:	220VAC/230VAC
Communication Interface:	RS232/RS485
Input Voltage:	230VAC
Size:	483312122mm
Waveform:	Pure Sine wave
Output Current:	120A
Weight:	11kg

Contact Now

Add to Cart

Company Info.

Shenzhen First Tech Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

48V 11kw Single Phase Off Grid Pure Sine Wave Hybrid Solar Inverter MPPT With Lithium Battery Activation

Model Number	M8500T-48PL	M11000T-48PL
Place of Origin	China	China
Mounting Method	Wall Bracket	Wall Bracket
Nominal Battery Voltage (V)	48VDC	48VDC
Parallel Capacity·	YES, 6units	YES, 6units
Lithium Battery activation	YES( By PV or Utility)	YES( By PV or Utility)
Nominal Voltage	230VAC	230VAC
Frequency	50/60Hz	50/60Hz
Waveform	Pure Sine wave	Pure Sine wave
Solar Charger Type	MPPT	MPPT
Communication Interface	RS232+RS485+Dry-contact	RS232+RS485+Dry-contact
PV Array MPPT Voltage Range	60VDC~500VDC	60VDC~500VDC
Surge Power	17000VA	22000VA
Size	540415122mm	540415122mm
Weight	14.5kg	15.5kg
Operating Temperature Range	(-10'℃ to 50℃)	(-10'℃ to 50℃)

Product Description:

Dual output for smart load management
Lithium battery activation function by PV or Utility
Compatible work with LiFePO4 battery via RS485
PV Input 500Vdc Max
Built-in MPPT 120A
Capable to work without battery
Detachable dust cover for harsh environment
Wifi remote monitoring optional
Support multiple output priority: UTL, SOL, SBU, SUB
EQ function to optimize battery performance and extend lifecycle

Technical Parameters:

Dual AC Output: Features both a main and a second AC output, allowing for flexible load management.

Built-in MPPT Charge Controllers: Includes two Maximum Power Point Trackers (MPPT) for efficient solar power conversion (e.g., 140A / 2160A model mentioned).

Lithium Battery Activation via PV/Grid: Can activate a lithium battery using power from either solar panels (PV) or the grid (Line).

Product Tags:

48V hybrid solar inverter with MPPT

11kW off grid inverter lithium battery compatible

single phase pure sine wave inverter

48V 11kw Single Phase Off Grid Pure Sine Wave Hybrid Solar Inverter MPPT With Lithium Battery Activation
