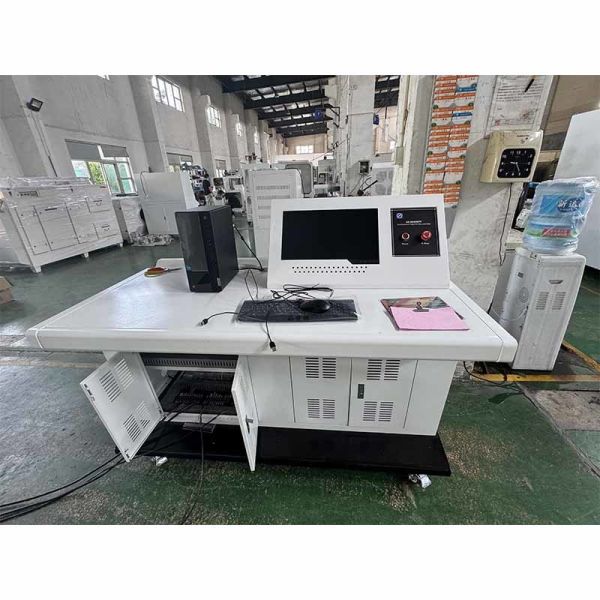

IEC 60331 Cable Fire Resistance Tester with PC Control Adjustable Voltage and Impact Water Spray Test

IEC 60331 Cable Fire Resistance Tester BS 6387 BS 8491 Impact And Water Spray Test


Cable Fire Resistance Tester Product Introduction:

The fire tester's performance requirements, including fire resistance, water spray fire resistance, and mechanical fire resistance tests, are applicable to mineral insulated cables with rated voltages up to 450/750V, ensuring they maintain circuit integrity for extended periods under fire. This complies with the British fire-resistant cable standard, BS6387,IEC 60331-1,-2,-11,-21,-23,-25 ,BS 8491"Specification for performance requirements for cables intended to maintain circuit integrity under fire conditions."

Cable Fire Resistance Tester Standard:

● BS6387
● IEC60331—(1,2,11,21,23,25)
● BS 8491
● GB/T19216.(11,21,23,25)
● GB/T19216.(12,31)
● GB/T19666
● EN50200



Cable Fire Resistance Tester Specification :

Wire and Cables Circuit Integrity Tester Technical​ Parameters:

• The combustion rack is cabinet-style, with fire-resistant and impact-resistant brackets adjacent to each other, providing convenient operation and an aesthetically pleasing appearance.
•Burner: 500mm ribbon-type blowtorch (with venturi mixer). Burner holes are arranged in three staggered rows, with a hole diameter of φ1.32mm and a center distance of φ3.2mm. The burner can be adjusted vertically and horizontally to accommodate the cable's horizontal and vertical positioning.
•Fire-resistant bracket: Consists of two metal rings, approximately 300mm apart. The inner diameter of the metal ring supporting the test is approximately 150mm. mm, with a ring cross-section diameter of 10 ± 2 mm. A clamp is installed at one end of the sample holder to secure the specimen, while the other end is freely supported to facilitate heat transfer along the specimen's longitudinal direction.
•Fire-Resistant Impact Test Stand: 1. For IEC60331-1 specimens with an outer diameter exceeding 20 mm, the impact test ladder consists of a steel frame with two central vertical steel members that can be adjusted left and right. The test ladder is 1200 ± 100 mm long and 600 ± 50 mm high, with a total mass of 18 ± 1 kg.
2.For IEC60331-2 specimens with an outer diameter not exceeding 20 mm, the test wall consists of a heat-resistant, non-combustible non-metallic material securely fastened to two horizontal steel support rods. The length is 900 ± 100 mm, the height is 300 ± 50 mm, and the thickness is 10 ± 2 mm. The support rods are 25 x 25 mm square steel tubes approximately 1 meter long. The total mass of the test wall is 10.0 ± 0.5 kg. The impact bracket is secured to a rigid support rod by four rubber bushings with a hardness of Shore A50-60. The impact rod is a mild steel round rod with a diameter of (25 ± 0.1) mm and a length of (600 ± 5) mm, and the impact rod angle is 60°. Both impact brackets are removable and interchangeable.
•Sample applied voltage: AC 100V-1000V, adjustable;
•Sample short-circuit breakdown current: 2A;
•Sample holding current: 100-260mA, adjustable;
•Three-phase transformer: 380V, 9kVA;
•Specimen short-circuit or open-circuit will stop the flame supply and cut off the voltage, and the software will display a fault message;
•Flame supply time: Adjustable from 0 to 999 minutes;
• Two φ1.5mm thermocouples and a corresponding thermometer for flame correction display flame temperature;
•Gas source control and regulation: Air flow rate is adjustable from 20 to 200 L/min using a mass flow meter; propane flow rate is adjustable from 2 to 20 L/min using a mass flow meter;
•Control method: Computer software controls the operation, monitoring current, voltage, gas flow rate, test results, and graph printing during the test.
