K3V112DTP-9N62 for R215-9T/R225-9T/275-9T 31Q6-10010 3106-10020 3106-19010 Long-Lasting Excavator Hydraulic Pumps: Ideal for Construction Sites

Categories Excavator Hydraulic Pump
Brand Name: TGFQ
Model Number: R215-9T/R225-9T/275-9T
MOQ: 1
Price: 94500usd
Payment Terms: TT/LC/
Supply Ability: 300+
Part Name: Hydraulic pump
Qaulity: Top Quality
Applicable Industries: Machinery Repair Shops, Energy & Mining
Part number: 31Q6-10010 3106-10020 3106-19010
Weight: 152KG
Bucket Capacity: 0.2 M3
Apply To Mode: kobelco / Hydraulic Excavator
Mechanical: Excavator
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

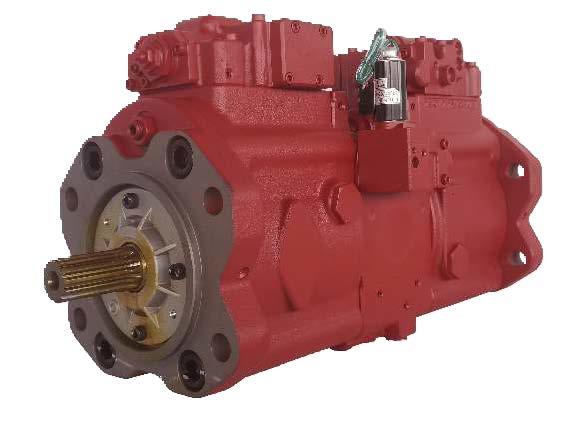

K3V112DTP-9N62 for R215-9T/R225-9T/275-9T 31Q6-10010 3106-10020 3106-19010 Long-Lasting Excavator Hydraulic Pumps: Ideal for Construction Sites

Product Introduction

In fast-paced construction environments, the ability to respond quickly to changing task requirements is essential, and the K3V112DTP-9N62 hydraulic pump delivers high-speed response when paired with the R215-9T/R225-9T/275-9T 31Q6-10010 3106-10020 excavator. The pump’s advanced valve design allows for rapid adjustment of oil flow and pressure, enabling the R215-9T/R225-9T/275-9T 31Q6-10010 3106-10020’s hydraulic cylinders to extend and retract faster than with standard pumps. This high-speed response reduces cycle times for tasks such as digging, lifting, and dumping, allowing operators to complete more tasks in less time. For example, the K3V112DTP-9N62 can reduce the time required for a single digging cycle by up to 10%, significantly increasing overall productivity. Whether working on a busy construction site or a time-sensitive project, the high-speed response of the K3V112DTP-9N62 helps the R215-9T/R225-9T/275-9T 31Q6-10010 3106-10020 stay ahead of schedule.


Parts Show

NumberPart NumberPart Name
Quantity
*.31Q6-10020[1]MAIN PUMP
*.31Q6-19010[1]MAIN PUMP
111XJBN-00077[1]SHAFT-DRIVE,FR
113XJBN-00078[1]SHAFT-DRIVE,RR
116XJBN-01213[1]GEAR-1ST
123XJBN-00950[2]BEARING-ROLLER
124XJBN-00786[2]BEARING-NEEDLE
127XJBN-00081[4]SPACER-BEARING
NS141.XJBN-00067[2]BLOCK-CYLINDER
NS151.XJBN-01032[18]PISTON
NS152.XJBN-01214[18]SHOE
153XJBN-00945[2]PLATE-SET
156XJBN-00083[2]BUSHING-SPHERICAL
157XJBN-00084[18]SPRING-CYLINDER
211XJBN-00085[2]PLATE-SHOE
NS212.XJBN-00070[2]PLATE-SWASH
NS214.XJBN-00071[2]BUSHING-TILTING
251XJBN-00086[2]SUPPORT
261XJBN-00087[1]COVER(F)-SEAL
271XJBN-01034[2]CASING-PUMP
312XJBN-00940[1]BLOCK-VALVE
NS313.XJBN-01035[1]PLATE-VALVE(R)
NS314.XJBN-01036[1]PLATE-VALVE(L)
N326.XJBN-00937[1]COVER
401XJBN-00090[8]SCREW-HEX SOC HD
406XJBN-00355[4]SCREW
414XJBN-00356[4]SCREW-SOCKET
466XJBN-00936[2]PLUG
467XJBN-00031[2]PLUG
468XJBN-00031[4]PLUG
490XJBN-00032[27]PLUG
NS531.XJBN-00358[2]PIN-TILTING
532XJBN-00955[2]PISTON-SERVO
534XJBN-01037[2]STOPPER(L)
535XJBN-00093[2]STOPPER(S)
NS541.XJBN-00859[4]SEAT
NS543.XJBN-00860[2]STOPPER
NS544.XJBN-00861[2]STOPPER
NS545.XJBN-00359[4]BALL-STEEL
NS548.XJBN-00360[2]PIN-FEED BACK
702XJBN-00918[2]O-RING
710XJBN-00095[2]O-RING
717XJBN-00096[4]O-RING
724XJBN-00361[16]O-RING
725XJBN-00362[6]O-RING
726XJBN-00233[2]O-RING
728XJBN-00363[4]O-RING
732XJBN-00912[2]O-RING
774XJBN-00962[1]SEAL-OIL
789XJBN-00099[2]RING-BACK UP
792XJBN-00100[2]RING-BACK UP
806XJBN-00101[2]NUT-HEX
808XJBN-00364[2]NUT
824XJBN-00102[2]RING-SNAP
885XJBN-00103[2]PIN-VALVE PLATE
886XJBN-00365[4]PIN-SPRING
901XJRN-00104[2]BOLT-EYE
953XJBN-00105[2]SCREW-SET
954XJBN-00106[2]SCREW-SET
981XJBN-00156[1]NAME PLATE
983XJBN-00341[2]PIN
11XJBN-01212[2]PISTON SUB ASSY
13XJBN-01040[1]CYLINDER ASSY-RH
14XJBN-01041[1]CYLINDER ASSY-LH
30XJBN-00069[2]SWASH PLATE SUB ASSY
41XJBN-00072[2]CHECK VALVE ASSY 1
42XJBN-00075[2]CHECK VALVE ASSY 2
530XJBN-00366[2]TILTING PIN ASSY




Why Choose TGFQ Over Other Excavator Part Dealers?
  1. TGFQ: Unmatched Excavator Part Service with 3 Unique Strengths

    • VIN-Based Precision Fit: We don’t just list parts—our experts use your excavator’s VIN to cross-reference part numbers with its unique serial number and optional add-ons. This has saved 540+ clients from “wrong part” delays in 2024.
    • Scalable Solutions for All Needs: Whether you’re a small repair shop needing 1 starter motor ($50 minimum) or a construction company ordering 150+ transmission parts, we offer bulk discounts up to 15%.
    • Ongoing Post-Sale Assistance: Beyond shipping, we send free maintenance guides (e.g., “Maximizing Excavator Fuel Efficiency”) and bi-annual updates on part enhancements for your machine.

      With clients in 30+ countries—including a North American fleet operator with 6 years of repeat business—TGFQ delivers reliability you can count on.
