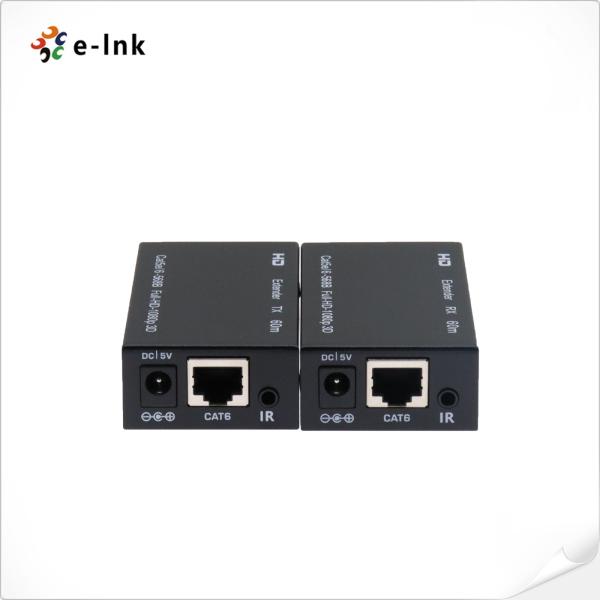

HDMI via CAT5e/6 Extender 60M with IR supports two-way infrared transmission

HDMI via CAT5e/6 Extender 60M with IR

Model: LNK-HDE60-IR

Overview

This professional AV transmission solution is a dedicated HDMI via CAT5e/6 Extender 60M with IR,

designed as a paired system (transmitter TX + receiver RX) to deliver high-definition HDMI signal

extension via cost-effective twisted-pair cables, while integrating infrared (IR) remote control forwarding

functionality. As an HDMI via CAT5e/6 Extender 60M with IR, it effectively addresses the limitation of

traditional HDMI cables’ short transmission range, providing a reliable solution for scenarios requiring

remote signal delivery and device control.

The HDMI via CAT5e/6 Extender 60M with IR enables transmission of 1080p high-definition HDMI

audio and video signals over a single CAT5e or CAT6 cable, with a stable transmission distance of up

to 60 meters. It supports uncompressed signal transmission, ensuring no loss of image clarity, color

accuracy, or audio fidelity—critical for applications demanding high-quality AV performance, such as

large-screen splicing displays or professional conference systems. A key functional highlight is its integrated

IR remote control signal forwarding: it supports pass-through of IR signals (compatible with most standard

remote control frequencies) between the TX and RX units, allowing users to remotely operate HDMI source

devices (e.g., media players, set-top boxes, or Blu-ray players) from the receiver end without on-site access,

greatly enhancing operational convenience.

Engineered for robust performance, the HDMI via CAT5e/6 Extender 60M with IR features strong anti-interference

capabilities, incorporating electromagnetic interference (EMI) and radio frequency interference (RFI) shielding

technology. This ensures stable signal transmission even in complex electrical environments—such as near

power cables, industrial equipment, or dense wiring closets—avoiding signal distortion, flicker, or dropouts that

could disrupt user experience.

In practical deployment, the extender’s transmission performance is closely related to cable quality: while it

supports both CAT5e and CAT6 cables, we recommend using high-quality, industry-standard twisted-pair

cables and following proper wiring practices (e.g., avoiding excessive bending or parallel routing with high-

voltage lines) to ensure optimal signal integrity and reach the rated 60-meter transmission distance.

With its plug-and-play design (no software configuration or professional technical expertise required),

the HDMI via CAT5e/6 Extender 60M with IR is ideal for diverse application scenarios: large-screen splicing

systems (shopping malls, exhibition halls), professional conference systems (corporate meeting rooms,

lecture halls), and home entertainment setups (home theaters, multi-room AV distribution). It combines long

-distance transmission, IR remote control convenience, strong anti-interference, and cost-effectiveness, making

it a reliable and efficient AV signal extension solution for both commercial and residential use.

Features

► Aluminum shell, compact size and Slim design, more beautiful than iron shell, strong anti-interference, Wall-mounted type

► Uncompressed and zero latency

► Auto adjustment to match the cable length

► The highest resolutions supported is up to 1080P@60Hz

► Extend HDMI signal over single UTP CAT6/6a/7 cable up to 60m

► Support EDID pass-through

► Only one power adapter is needed for the TX, the RX can be powered by the TX over network cable.

Technical Indexes

Input video signal	0.5-1.0 volts p-p
DDC signal	5 volts p-p (TTL)
Video format	DTV / HDTV;1080P / 1080i / 720P / 576P / 480P/ 576i / 480i
Output video	HDMI 1.3b
Output audio	Support DTS-HD, Dolby-HD
Transmission distance	1080p Category 6 cable 40 meters
Power Input	DC 5V
Power consumption	Transmitter 2.5W;Receiver 2.5W
Dimensions	82mm × 46mm × 24mm
Weight	105g
Operating humidity	5 to 90% RH (no condensation)
Working temperature	5 to + 35 ° C

Ordering Information

Model	Description
LNK-HDE60-IR	HDMI via CAT5e/6 Extender 60M with IR

Application
