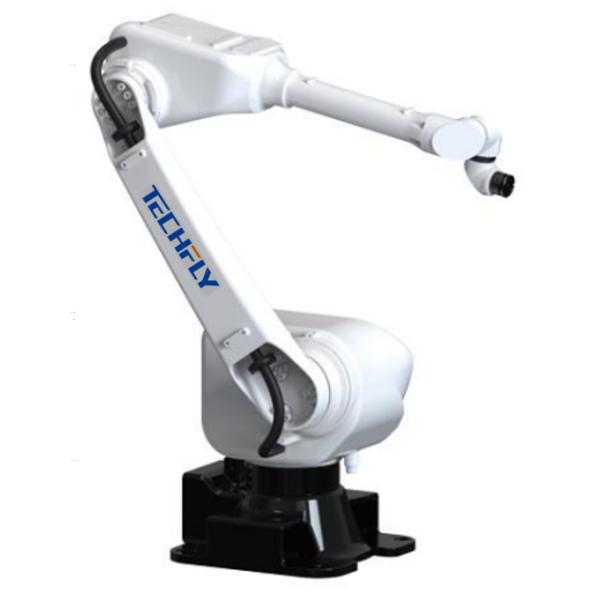

Shared Spray Booth Essential: SR10-3800 Robot | 3800mm Wide Coverage, 10kg Lightweight – Save Space & Cost

Shared Spray Booth Essential: SR10-3800 Robot | 3800mm Wide Coverage, 10kg Lightweight – Save Space & Cost

Wide working range, with an arm span of 3800mm which can meet the spraying of various workpieces
The maximum load is 10kg to meet the use requirements of various spray guns
The end adopts high - precision BBR transmission structure, the wrist joints are fast and flexible, and the front work has no singularity
Support the robot external axis expansion to expand the scope of the robot operation
The body structure adopts sealed design and has excellent explosion - proof capability
Can be inverted, wall installed for use, save space
The body provides multiple solid platforms to facilitate the installation of wiring and auxiliary equipment

1. Wide arm extension range,cover-ing a wide working area,meeting the spraying needs of various sizes of workpieces.

2. The wrist end adopts the domestically pioneered BBR structure, with nosingular points on the front,lightweight and integrated design to meet the needs of quick replacement.

3. The entire machine has an IP65 protection level and has passed explosion-proof certification.

4. Continuing the high-precision characteristics of industrial robots, combined with path planning software, it is easy to use.

model		SR 5 - 1600	SR12 - 2000	SR8 - 2600	SR12 - 3200	SR10 - 3800
radius of action		1600mm	2000mm	2600mm	3200mm	3800mm
structure		Vertical polyarticular (6 degrees)
Range of action	A1	-180°~+180°	-170°~+170°	-170°~+170°	-170°~+170°	-170°~+170°
	A2	-170°~+115°	-87°~+75°	-87°~+75°	-90°~+170°	-90°~+170°
	A3	-130°~+170°	-120°~+75°	-120°~+75°	-125°~+75°	-125°~+75°
	A4	-360°~+360°	-360°~+360°	-360°~+360°	-360°~+360°	-360°~+360°
	A5	-360°~+360°	-360°~+360°	-360°~+360°	-360°~+360°	-360°~+360°
	A6	-360°~+360°	-360°~+360°	-360°~+360°	-360°~+360°	-360°~+360°
kinematic velocity	A1	2.62rad/s,150°/s	2.27rad/s,130°/s	2.27rad/s,130°/s	1.48rad/s,85°/s	1.48rad/s,85°/s
	A2	3.14rad/s,180°/s	1.95rad/s,112°/s	1.95rad/s,112°/s	1.83rad/s,105°/s	1.83rad/s,105°/s
	A3	3.14rad/s,180°/s	3.32rad/s,190°/s	3.32rad/s,190°/s	3.84rad/s,195°/s	3.84rad/s,195°/s
	A4	7.85rad/s,450°/s	6.28rad/s,360°/s	6.28rad/s,360°/s	7.33rad/s,420°/s	7.33rad/s,420°/s
	A5	7.85rad/s,450°/s	6.63rad/s,380°/s	6.63rad/s,380°/s	7.33rad/s,420°/s	7.33rad/s,420°/s
	A6	10.47rad/s,600°/s	10.47rad/s,600°/s	10.47rad/s,600°/s	8.72rad/s,500°/s	8.72rad/s,500°/s
Repeat positioning accuracy		±0.05mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Robot quality		115kg	330kg	350kg	620kg	650kg
noise		70dB
IP levels of protection		Ontology:IP65,Wrist part:IP67
way to install		Land,upside down,wall hanging	Land,upside down,wall hanging	Land,upside down,wall hanging	Land,upside down,wall hanging	Land,upside down,wall hanging
Portable weight	Wrist	5kg	12kg	8kg	12kg	10kg
Portable weight	big arm	8kg	20kg	15kg	20kg	20kg
Installation environment	temperature	0 - 45℃
	humidity	20% - 80% RH (no condensation)
	vibrate	4.9m/s²(0.5G) Below this
	other	No corrosive gases and liquids shall be allowed
	other	Keep away from electrical noise source,away from electromagnetic source,away from strong microwave,ultraviolet,X ray,radiation

Industry Application

Package Detail

FAQ About Robot

1.Question: [SAFETY] I want to ensure the industrial robot I purchase complies with industry standards and regulations. What certifications does it have?

Answer: This industrial robot has passed strict industry certifications and standards, including ISO quality management system certification and CE certification and ATEX for painting robots, ensuring its quality and safety.

2.Question:[Technical support] I need an industrial robot with reliable technical support and training services. Do you offer support in this area?

Answer: Yes, we provide comprehensive technical support and training services, including operation training, maintenance training, and on-site support to ensure you can fully utilize the performance and capabilities of the industrial robot.

3.Question:[Material download ]Where can I obtain relevant information about robots, including parameter manuals, mathematical models, and so on

Answer: https://www.efort.com.cn/en/index.php/service/downservice.html

4.Question:【Warranty】how about your warranty

Answer :Yes, our products come with a certain period of warranty. The specific warranty period and coverage may vary depending on the product model and region. Please provide your location and the product model you are interested in to obtain more accurate information. In general, the warranty period is 12 months.

5.Question:【Payment】how about the payment if we place orders to you .

Answer :We accept multiple payment methods, including but not limited to TT, L/C, etc. You can choose the payment method that is convenient for you.

6.Question:[Customization] Do you provide any possible customized service .

Answer: Yes, we provide customization services within a certain range, such as color customization, boot UI customization, LOLO customization, etc., according to the specific requirements of customers. Please provide your customization requirements, and we will do our best to meet your needs.

7.Question: [maintenance] What are the maintenance costs for the industrial robot? I want to understand the long-term operating costs.

Answer: The maintenance costs for this industrial robot are very low. We provide maintenance services including regular inspections, preventive maintenance, and quick-response technical support to minimize your operating costs.

8.Question: [Easy to use ] I expect efficient programming capabilities in the industrial robot for quick deployment and adjustments on the production line. Does it offer efficient programming?

Answer: This industrial robot comes with user-friendly programming interfaces and advanced programming capabilities, allowing for quick and easy deployment and adjustments on the production line.

9.Question: [Reliability] How reliable is the industrial robot? I need a stable and dependable machine to ensure production continuity.

Answer: This industrial robot undergoes rigorous quality control and testing, ensuring excellent reliability and stability. It is built with advanced technology and high-quality materials to ensure continuous production.
