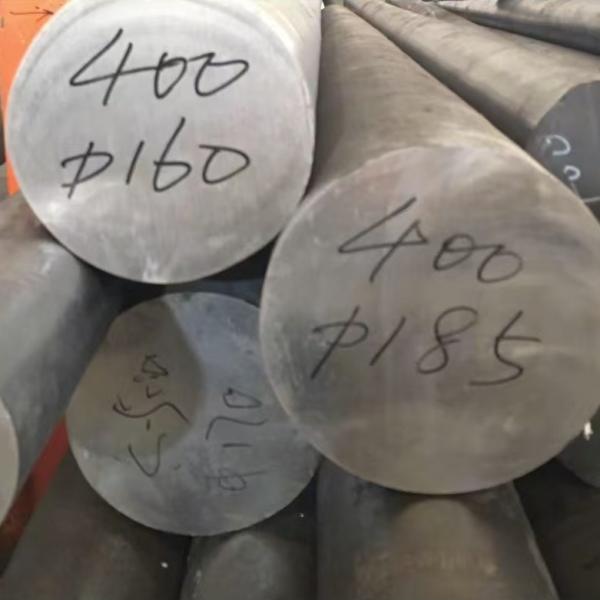

High Corrosion Resistant Monel400 Round Bar for Marine Chemical Industrial Applications

High Corrosion Resistant Monel400 Round Bar for Marine Chemical Industrial Applications

Products Specification

Standard	AISI, ASTM, BS, DIN, GB, JIS
Grade	Monel series: 400 K500 Inconel series: 600 601 625 718 725 Incoloy series: 800 800H 825 925 Hastelloy series: B,B2,B3,C,C-276,C-4,C-22 Pure: Ni200, Ni201
Specifications	Round bar	Diameter:4~300mm
	Flat bar	Thickness	1.0~100mm
		Width	1~1500mm
	Square bar	Size: 44-100100mm
Length	2m, 5.8m, 6m, or as required.
Surface	Black, peeled, polishing, bright, sand blast, hair line, etc.
Price Term	Ex-work, FOB, CFR, CIF, etc.
Delivery Time	Standard size is in stock,prompt delivery or as order's quantity.
Package	Export standard package, bundled or be required. The inner size of container is below: 20ft GP: 5.9m(length) x 2.13m(width) x 2.18m(high)about 24-26CBM 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM

High Corrosion Resistant Monel400 Round Bar for Marine Chemical Industrial Applications

Monel 400 round bar is a premium nickel-copper alloy product renowned for its exceptional corrosion resistance, mechanical stability, and adaptability to harsh operating environments—making it a cornerstone material in marine and chemical industrial sectors. Below is a comprehensive overview of its parameters, properties, standards, key features, equivalent grades, and typical applications.

1. Chemical Composition (Key Parameters)

The superior performance of Monel 400 round bar stems from its precisely controlled chemical composition, which balances nickel (the primary corrosion-resistant element) and copper (for enhanced ductility and strength). The composition adheres to strict industrial specifications, with typical ranges as follows:

Element	Content Range (%)	Function
Nickel (Ni)	63.0 – 70.0	Core element for resistance to seawater, acids, and alkalis; ensures alloy stability.
Copper (Cu)	28.0 – 34.0	Improves ductility, machinability, and resistance to reducing acids (e.g., sulfuric acid).
Iron (Fe)	≤ 2.5	Enhances mechanical strength without compromising corrosion resistance.
Manganese (Mn)	≤ 2.0	Boosts workability and prevents brittleness during processing.
Carbon (C)	≤ 0.3	Controls grain structure; low content minimizes carbide precipitation (avoids corrosion weak points).
Silicon (Si)	≤ 0.5	Aids in casting/forging processes; maintains alloy purity.
Sulfur (S)	≤ 0.024	Reduces hot cracking risk during fabrication.

2. Mechanical Properties

Monel 400 round bar exhibits excellent mechanical performance across a wide temperature range (-200°C to 480°C), making it suitable for both low-temperature marine environments and high-temperature chemical processing. Typical properties (annealed condition, for general industrial use) are listed below:

Property	Unit	Typical Value	Test Standard
Tensile Strength	MPa	≥ 550	ASTM B164
Yield Strength (0.2% offset)	MPa	≥ 240	ASTM B164
Elongation (in 50mm)	%	≥ 35	ASTM B164
Hardness (Brinell)	HB	≤ 150	ASTM E10
Modulus of Elasticity	GPa	179	-
Density	g/cm³	8.80	-

Note: For specialized applications (e.g., high-pressure valves), cold-worked Monel 400 round bar can be supplied, with tensile strength increased to 700–800 MPa and yield strength up to 450–550 MPa (at the cost of slightly reduced elongation).

3. Industrial Standards

Monel 400 round bar is manufactured and inspected in compliance with globally recognized standards to ensure consistency and reliability. The most widely adopted standards include:

ASTM (American Society for Testing and Materials):
- ASTM B164: Standard Specification for Nickel-Copper Alloy (Monel) Rod, Bar, and Wire
- ASTM B865: Standard Specification for Seamless Nickel and Nickel-Alloy Pipe and Tube (relevant for derived components from round bars)
ASME (American Society of Mechanical Engineers):
- ASME SB-164: Boiler and Pressure Vessel Code (BPVC) certification for pressure-containing applications (e.g., chemical reactors)
ISO (International Organization for Standardization):
- ISO 6208: Nickel and nickel alloys — Rod, bar and wire
DIN (Deutsches Institut für Normung, German Standard):
- DIN 17750: Nickel and nickel-base alloys — Rods and bars

4. Key Features

Monel 400 round bar’s popularity in marine and chemical industries is driven by five core advantages:

Exceptional Corrosion Resistance
It resists pitting, crevice corrosion, and stress corrosion cracking (SCC) in aggressive media, including:
- Seawater (and salt spray) — ideal for marine hull components, propeller shafts, and offshore platform parts.
- Reducing acids (e.g., dilute sulfuric acid, hydrochloric acid) and alkalis (e.g., sodium hydroxide).
- Organic compounds (e.g., methanol, ethanol) and industrial solvents.
Broad Temperature Adaptability
It retains mechanical strength at cryogenic temperatures (-200°C, suitable for LNG marine storage) and maintains stability at elevated temperatures (up to 480°C, for chemical distillation columns).
Superior Ductility and Machinability
The alloy’s high elongation (≥35%) allows easy fabrication (e.g., forging, bending, welding) into complex shapes (e.g., valves, flanges). It can be machined with standard tools (using lubricants to prevent work hardening).
Excellent Weldability
It supports common welding methods (TIG, MIG, submerged arc welding) without losing corrosion resistance—critical for assembling large marine structures or chemical process pipelines.
Long-Term Durability
Low susceptibility to oxidation and erosion ensures a long service life (often 10–20 years in marine/chemical environments), reducing maintenance costs and downtime.

5. Equivalent Grades

Monel 400 is known by different designations across regions and standard systems. Below are its most common equivalent grades for global procurement:

Standard System	Equivalent Grade	Country/Region
ASTM/ASME	Monel 400	USA
UNS (Unified Numbering System)	N04400	USA/Global
ISO	NiCu30Fe	International
DIN	2.4360	Germany
BS (British Standards)	NA12	UK
JIS (Japanese Industrial Standards)	NW4400	Japan

6. Applications in Marine & Chemical Industries

Leveraging its corrosion resistance and mechanical performance, Monel 400 round bar is a preferred material for the following critical components:

Marine Industry

Offshore platform parts: Bolts, nuts, and structural supports (resist seawater corrosion and wave impact).
Shipbuilding components: Propeller shafts, rudder stock, and seawater cooling system pipes (withstand long-term immersion in saltwater).
Marine valves and pumps: Valve stems, impellers, and housings (prevent pitting from seawater and marine organisms).

Chemical Industry

Chemical process equipment: Reactor internals, heat exchanger tubes, and agitator shafts (resist acids, alkalis, and organic solvents).
Acid handling systems: Pipes, fittings, and pump casings for transporting sulfuric acid, hydrochloric acid, and phosphoric acid.
Pharmaceutical and food processing: Tanks, mixers, and conveyor parts (non-toxic, corrosion-resistant, and easy to clean).

Product Tags:


*From:	Your email address is incorrect!
*To:	JIANGSU MITTEL STEEL INDUSTRIAL LIMITED
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Nickel Alloy
Brand Name:	DELTA
Model Number:	Monel 400
Certification:	ISO
Place of Origin:	China
MOQ:	10 kgs
Price:	20 - 35 USD/Kg
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	3 Ton per week
Delivery Time:	5 - 12 days based on the quantity
Packaging Details:	standard packing for export
Products:	Monel 400 round bar
Grade:	Monel 400
Diameter:	10 - 350mm
Length:	custom cutting any length as request
Standard:	ASTM EN
Service:	Cutting
Loading Port:	Shanghai Port
Surface:	black, bright
