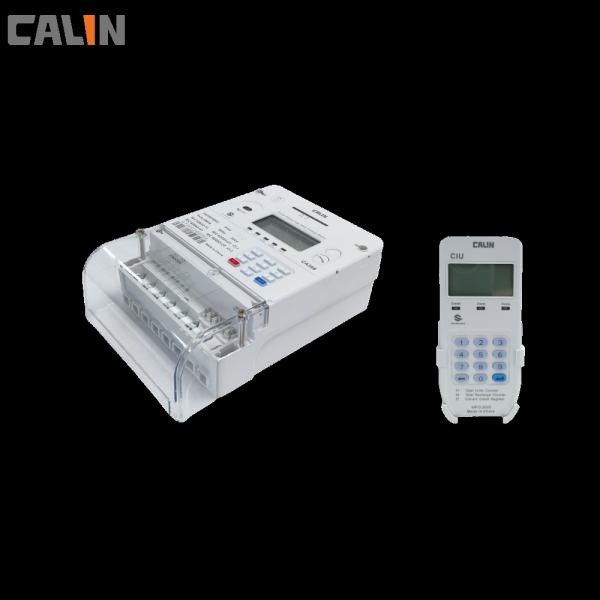

Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meter with Class 0.5S Accuracy

Dual-source AMI Solution RF/Lora Communication Smart Prepaid Electricity Meters Energy Meter
The CA368 HT57 is a Maximum Demand measurement unit installed on the secondary side of a substation or converter. It is used for metering large customers or monitoring the load status of an entire site, and for providing grid data for statistical analysis. It operates with CTs of various ratios, working with different amperage grid supplies.
Key Benefits
  • Meters can be extended to Split type with CIU
  • Available with choices of PLC/RF/LoRa/GSM/GPRS wireless communication with AMR AMI server
  • Consumption record on Time of Use (TOU) basis
Technical Parameters
ParameterValue
Nominal voltage Un3x230/240V
Limited voltage50%~130%Un
Nominal frequency fn50-60Hz+5%
Basic current(Ib)1A
Maximum current(Imax)10A
Starting current(Ist)0.4%IB
Active energy constant6400imp/kWh
Accuracy as Active energy to IEC62053‐21Class0.5S
Power consumption in Voltage circuit<2W <8VA
Power consumption in current circuit<1VA
Operating temperature-25℃ to +70℃
Storage temperature-40℃ to +85℃
Main Features
  • Critical metrological value measurement: V, A, PF, P, etc
  • Trip on no credit or preset balance level
  • Disconnect on tamper detected
  • Meter allows setting for power limit, emergency credit, debt collection, surcharges, etc
  • Uni-directional measurement for reverse energy (SRE)
  • Anti-fraud features
Frequently Asked Questions
Are you a trade company or a manufacturer?
We are an original meter manufacturer and solution provider, we can provide more support for you.
Do you provide samples for testing, free or extra?
We can provide samples, but we will charge reasonable cost.
What's payment terms you accept?
Paypal/West Union/T/T/L/C is available. payment ≤USD2000, 100% In advance. payment>USD2000, 30% in advance by T/T, balance payment before shipment.
How long is your delivery time?
Generally it is 5-10 days if the goods is in stock, or it is 15-30 days based on your order quantity.
