Fast Remove Dirt Quick Delivery Profile Reed Ultrasonic Cleaning Machine

Categories Industrial Ultrasonic Cleaner
Certification: CE, RoHS
MOQ: 1
Price: 1000
Model NO.: JP-240ST
Automation: Manual
Cleaning Precision: Ultra-Precision Industrial Cleaning
Control: Artificial
Principle: Physical and Chemical Cleaning
Material: SUS304
Specification: 410*255*310mm
Frequency: 40,000Hz
Tank capacity: 53L with Roller
Timer: 1-99 mins
Tank size: 550*400*350mm
Unit size: 730*580*770mm
Ultrasonic power: 480W~1200W
Heating power: 3000W
Power supply: AC 100 ~ 120V, 60Hz ; AC 220 ~ 240V, 50Hz
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Fast Remove Dirt Quick Delivery Profile Reed Ultrasonic Cleaning Machine

Fast Remove Dirt Quick Delivery Profile Reed Ultrasonic Cleaning Machine
Skymen Ultrasonic Cleaning Machine
Key Features of Ultrasonic Industrial Parts Cleaning Machine

Ultrasonic Parts Cleaners & Degreasers dramatically lower the cost of your parts cleaning process with a higher degree of efficacy compared to traditional methods.

  • Slash your cleaning labor and materials costs
  • Reduce your Work In Process time
  • Deep penetrating cleansing action, powerful yet gentle
  • Far superior to hand cleaning
  • Clean difficult to reach areas like small blind holes, joints, threads, cavities, and crevices
  • Thoroughly clean all hard surfaces: metal, plastic, glass
  • Use environmentally safe cleaning fluids

Traditional cleaning processes are usually limited by the physical geometry of the part. Intricate parts with small holes, crevices, joints, and other hard to reach areas require specialized cleaning equipment or may be ignored, leaving contaminants behind. For processes like electroplating, electrophoretic deposition, or powder coating a perfectly clean substrate is a prerequisite which cannot be compromised.

During ultrasonic cleaning the part is completely immersed in the cleaning bath and all surfaces in contact with the liquid are cleaned. This results in uniform, micron level cleansing action over the entire substrate preventing spotty electroplating or electrophoretic adhesion.

Choosing the right combination keeping the above factors in mind can be challenging. Our vast experience across numerous industries and cleaning requirements will help you identify the ultrasonic cleaner that is best suited to your industrial application. Call us and we will quickly identify the right combination and even suggest accessories that will enhance your cleaning process.

Why You Need an Ultrasonic Cleaning Machine

Cleaning reeds regularly can prolong their lifetime and increase loom operating efficiency. Our Ultrasonic Cleaning Machine is a modern way of cleaning reeds effectively and efficiently. By utilizing ultrasonic waves instead of contact media, the reeds' original pitch can be retained and best of all, there is no more problem in cleaning the reeds' parts that are difficult to reach. Our machine is also very handy in cleaning other weaving machinery parts such as Sub Nozzles, Main Nozzles, etc.

How It Works

Traditional cleaning processes are usually limited by the physical geometry of the part. Intricate parts with small holes, crevices, joints, and other hard to reach areas require specialized cleaning equipment or may be ignored, leaving contaminants behind. For processes like electroplating, electrophoretic deposition, or powder coating a perfectly clean substrate is a prerequisite which cannot be compromised.

During ultrasonic cleaning the part is completely immersed in the cleaning bath and all surfaces in contact with the liquid are cleaned. This results in uniform, micron level cleansing action over the entire substrate preventing spotty electroplating or electrophoretic adhesion.

Choosing the right combination keeping the above factors in mind can be challenging. Our vast experience across numerous industries and cleaning requirements will help you identify the ultrasonic cleaner that is best suited to your industrial application. Call us and we will quickly identify the right combination and even suggest accessories that will enhance your cleaning process.

Specifications - Model JP-240ST
ModelJP-240STFrequency40,000Hz
Tank capacity53L with RollerTimer1-99 mins
Tank size550*400*350mmUnit size730*580*770mm
Box packing900x670x940mmFunctionPower Adjustable/Draining
Ultrasonic power480W~1200WHeating power3000W
PackingWood caseG.W.95kg
POWER SUPPLY: AC 100 ~ 120V, 60Hz ; AC 220 ~ 240V, 50Hz
JP-240ST Ultrasonic Cleaning Machine Specifications
Other Recommendations

If tank size of this ultrasonic cleaning tank is not suitable for your spare parts, we have other big ultrasonic cleaning tank in store. And we can design and produce any special function ultrasonic cleaning machine you need.

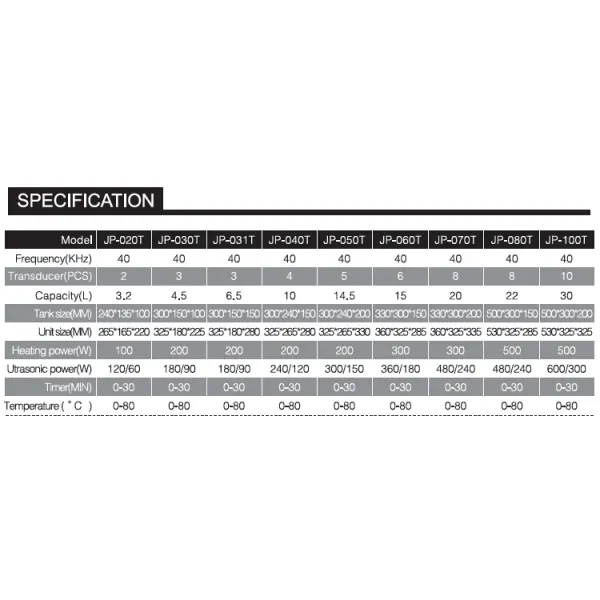

Additional Ultrasonic Cleaning Machine Options

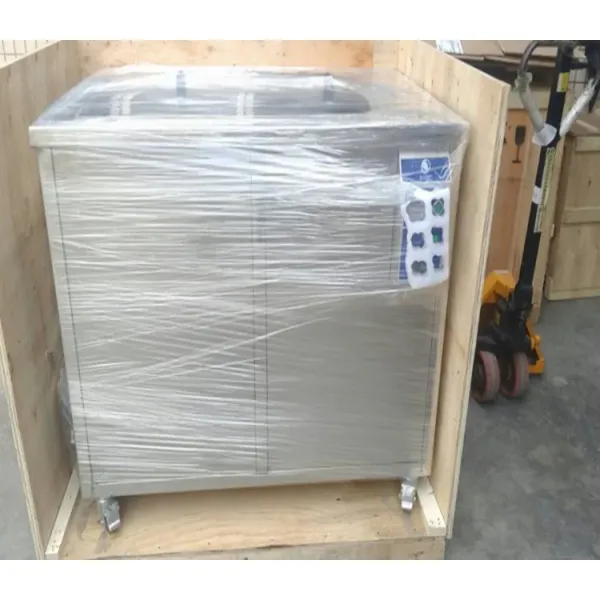

Packing Information and Delivery
Packing and Delivery Information
Skymen Advantage

We have been in this industry for 10 years and we are supplying machines to all seller all over the world. All distributor is welcome for win-win cooperation.

We have passes ISO, High Tech Company, CE, RoHS, FCC, National Medical Instrument Approval

Skymen Certifications and Approvals
Customer Feedback
