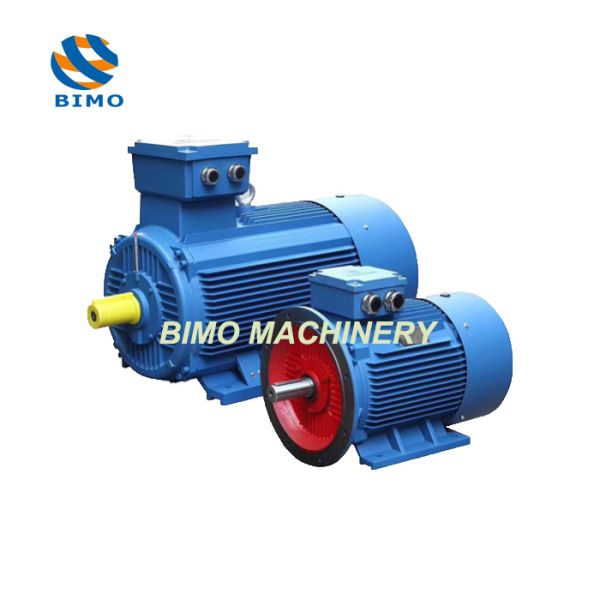

IE3 Series 0.16HP-430HP Premium Efficiency Three Phase Asynchronous Motor Электродвигатель

IE3 Series 0.16HP-430HP Premium Efficiency Three Phase Asynchronous Motor Электродвигатель

1, IE3/YE3 series premium efficiency motor(IE3) are the energy-saving motors developed by ourselves independently according to the efficiency classification of IEC60034-30.

2, IE3 is the worldwide unified efficiency classification of electric motor. AC motors have a significant impact on the total energy operation cost for industrial, institutional and commercial buildings. With this in mind Bulletproof embraced the challenges and brought a combination of IE3 Premium Efficiency and high reliability product to service this lucrative market. It is expected to potentially save energy by 30%-60% for an optimized system.

3, IE3/YE3 energy efficiency motor are according to IEC 60034-1 part 1: energy efficiency classification and performance of rotating motor and IEC 60034-2-1 part 2-1:losses and testing method of rotating motor, which is the most authoritative efficiency classification standard in the world. These motors are also in compliance with the efficiency standards covered by NEMA, CSA, CEMEP, COPANT, AS, NZS, JIS, GB.

Frame Size: 63-355mm
Output Power: 0.12-315kW
Rated Voltage: 220V/380V/400V/415V/460V/660V
Speed: 3000, 1500, 1000, 750r/m
Pole: 2/4/6/8/10
Efficiency Class: IE3
Terminal Box: Top/Side Mounted
Insulation Class: F/H
Bearing: SKF/NSK/Chinese
Ambient termperature: -15°C-0-40°C
Altitude: Not exceeding 1000m
Rated voltage: ±5%
Rated frequency: 50Hz / 60Hz
Connection: Y Star-connection for 3Kw and below
Δ Delta-connection for 4Kw and more
Duty/Rating: Continuious(S1)
Insulation Class: F, the termperture rise of the stator winding is examined at 80K.
Protection Class: IP55
Cooling Method: IC411

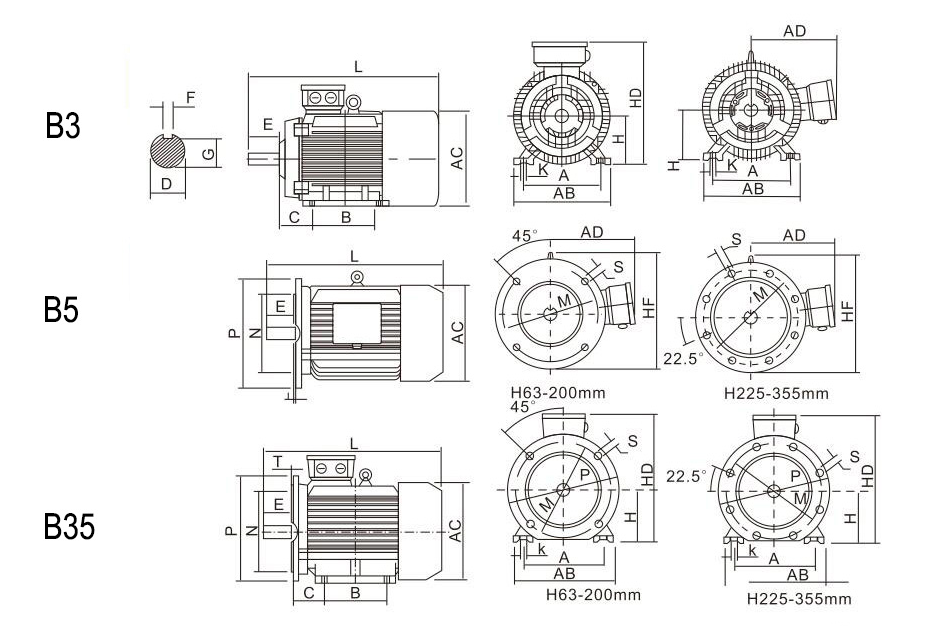

Mounting method: B3, B5, B35, V1

1,100% copper wire, best quality materials construction according with national standard easy maintenance,precision winding

production of enameled wire,high thermal conductivity,good heat dissipation effect.

2, Superior Iron core,The raw material is made of cold rolled first-grade non-oriented silicon steel with good toughness and strong bearing capacity.

3, High precision rotor, 800 cold-rolled steel rotor,intelligent finishing,durable and long-lasting,new national standard rotor, through strict static and dynamic,balance test to ensure smooth operation and noise reduction.

Bimo Machinery Co.,Ltd produce "BIMO " brand high lever, high valued added products,

include YE3 series ultra high efficiency three-phase asynchronous motors, IE2,IE3,IE4,IE5 series high efficiency three-phase asynchronous motors, the motor power is from 0.09kw to 630kw. YB3 series explosion-proof motors, medium high voltage motors and NEMA standard motors and other speical motor, with a total of 15 series and more than 3000 specifications.

& IEC standards (China national standard) full line IE2, IE3 & IE4 IE5 high efficiency motors

& IEC standards (China national standard) inverter duty motor, brake motors and the explosion proof motors

& NEMA standards Epact efficiency & Premium Efficient motors

& China national standard high voltage induction motors and slip ring motors

& Vertical hollow shaft motor

& DC motors

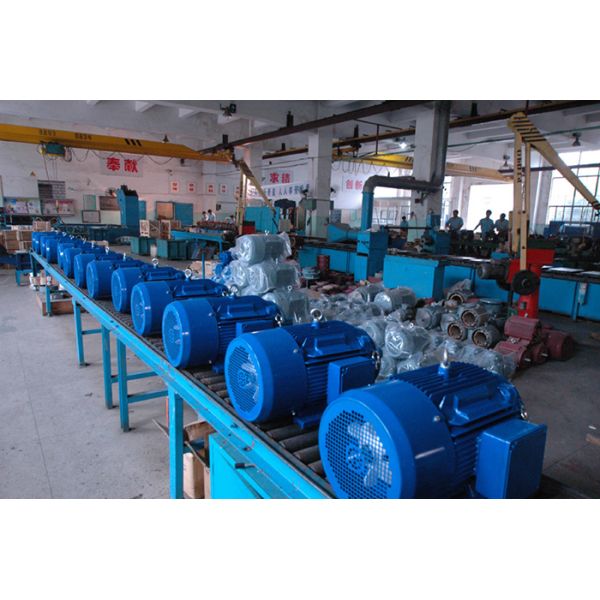

The range of frame size is from 63 up to 1120mm, available from 0.12kW up to 6000kW. And also the company is one of the enterprises with the most completed categories in China′s electric motor industries, which have been widely used in many different industries.

The company attaches great importance to quality management, successfully passed the BSEN ISO9001: 2008 quality system certification, and passed CE, SGS, CCC and other related product certification, with a sound quality inspection system and product quality assurance capabilities. Actively implement the modern scale enterprise management mode, continuously update the testing and equipment performance, continuously improve the technical parameters of the testing center, and strictly implement the ISO9000 quality system management.

We would like to present the best product quality, the most preferential price the most thoughtful pre-sale, sale and after-sale service, cooperate with friends from all overseas company, and let us achieve long-terms business!
